Description

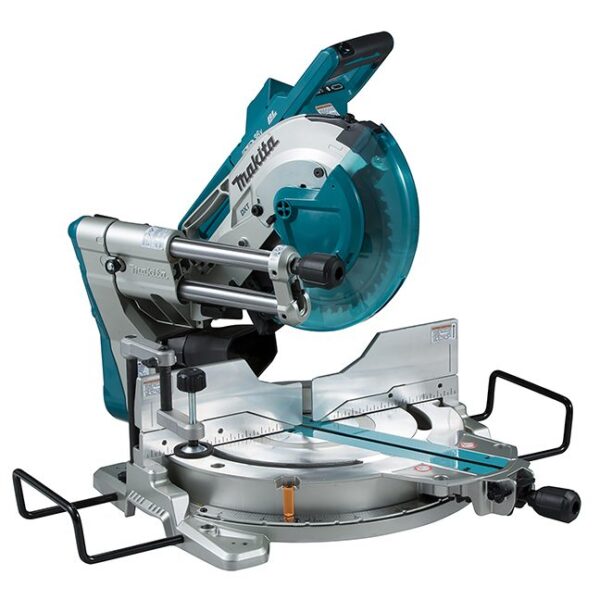

Makita DLS111Z 10″ 18Vx2 Sliding Compound Mitre Saw with AWS
The Makita DLS111Z 10″ 18Vx2 Sliding Compound Mitre Saw with AWS includes:
- Tool only – batteries and charger sold separately
- 10″ Carbide Tooth 40T blade
- Dust bag
- Vertical vice
- Triangle rule
- Hex wrench 2.5
- Hex wrench 6
Makita’s Deep And Exact Cutting Technology (DXT):
- Up To 12″ Cuts In 2x Material
- 6-5/8″ Nested Crown Moulding
- 5-1/4″ Vertical Baseboard
Features:
- AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum
- AWS also enables wireless control when used with Makita AWS cordless tools
- Close to will “Zero Clearance” design
- Brushless DC motor with high power to weight and size ratio
- Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
- Automatic torque Drive Technology (ADT) adjusts the torque and speed according to the load condition
- ADT also enables rapid movement between high speed and high torque applications
- Rail forward design enables saw to be placed against wall to maximize effective workspace
- 3 stage gear reduction system greatly increases capacity when cutting vertical baseboard or nested crown molding
- 1-3/16″ guide rail diameter provides increased stability and cutting precision
- Integrated guide fence and lower fence increases rigidity and support of materials
- Fence design allows fence to be secured to holders to prevent damage and/or loss
- Front bevel knob enables easy adjustment without reaching for operator convenience and precise setting of bevel angle
- Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
- Soft start gradually increases speed to eliminate start up shock
- LED charge level indicator displays approximate remaining battery power
- Large mitre table ideal for use with wide materials
- Easy to operate mitre angle lock with free spin releasing lever and locking lever
- Improved dust collection with dual dust collection ports
- 2-stage safety switch for increased operator safety
- Ergonomic Horizontal Soft Rubber Grip design for vibration absorption and comfortable operation
Specifications:
- Battery capacity: Two 18 Volt Lithium Ion
- Blade diameter: 10″ (255 mm)
- Arbor: 5/8″ (15.88 mm)
- No load speed: 4,400 RPM
- Bevel capacity: 48o left or right with positive stops at 0o, 22.5o, 33.9o &45o
- Mitre capacity: 60o left or right with positive stops at 0o, 15o, 22.5o, 31.6o&45o
- Vibration level: 2.5 m/s2
- Noise level: 92 dB(A)
- Dimensions (LxWxH): 31-3/4″ x 25-3/8″ x 26″ (805 mm x 644 mm x 660 mm)
- Net weight: 57.6 lbs (26.1 kg)
(Bluetooth® is a registered trademark of Bluetooth® SIG)
Braden Marr –
Arrived in about 2 weeks at my door.
I ordered a 90T 10 inch blade which I installed right away instead of installing the lower tooth count blade that comes with the saw. First use was cutting MDF baseboards, architrave and trim. Laser guide works well, but has to be adjusted each time if switching waste cut from left or right side of blade, as expected.
I installed the vacuum attachment hose that comes with the saw but had to use a 3D printed adapter to connect that to my 58mm shop vacuum hose.
Does not come with the AWS Bluetooth dongle, so don’t forget to order that separately if you want that feature. I may do that in the future, so I wanted the option to expand.
Also, does not come with 18V batteries (as expected), so I used the batteries from my Makita 36V weed whacker. Works great!
