Description

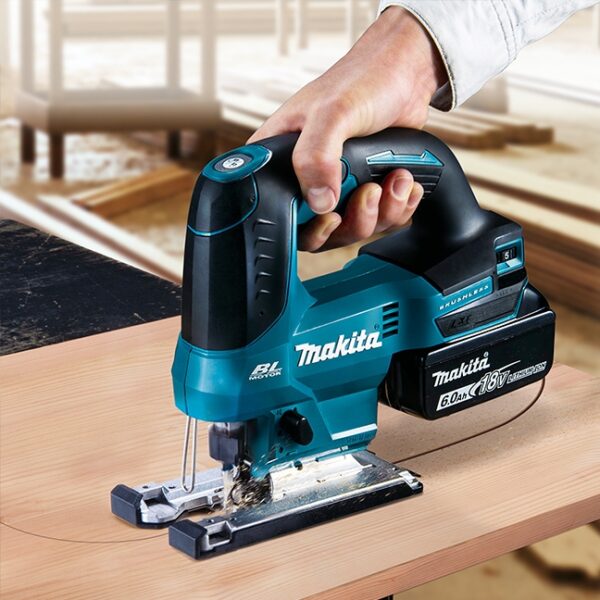

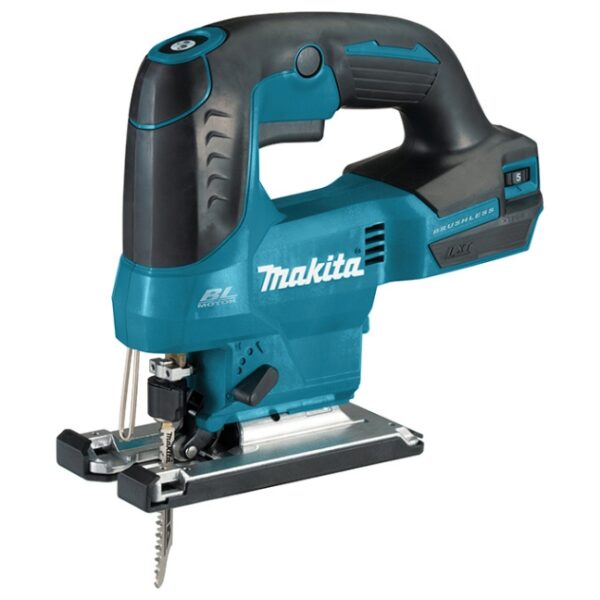

Makita DJV184Z 18V LXT Brushless Jig Saw with D-Handle and XPT – Tool Only
The Makita DJV184Z 18V LXT Brushless Jig Saw with D-Handle and XPT includes:
- Tool only – batteries and charger sold separately
- Jig Saw Blade Set (E-10687)
- Cover Plate (457867-1)
- Hex Wrench 3 (783201-2)
Features:
- Product no. DJV184Z
- 4 Settings – 3 Orbital + 1 Straight Cutting:
-
-
- Deliver faster and more accurate cuts for multiple applications
-
-
- Variable 5-speed control dial (800-3,000 SPM):
-
-
- Enables user to match the speed to the application
-
-
- “Tool-less” blade change system allows for faster blade installation and removal
- Ergonomically designed barrel grip allows closer-to-work control and more precise cuts
- Brushless DC motor:
-
-
- High power to weight ratio
- Generates less heat buildup
- Ideal for prolonged use in manufacturing / production applications
-
-
- Lock on button for continuous operation
- Soft start allows for accurate landing of the blade on the surface of the workpiece
- Soft no-load rotation:
-
-
- Reduces vibration
- Aligns blade with the cutting line easily
-
-
- Constant speed control maintains constant speed under heavy load
- Disabling soft no-load rotation function in operator’s preference
- LED job light (Single LED with light up function during standby mode)

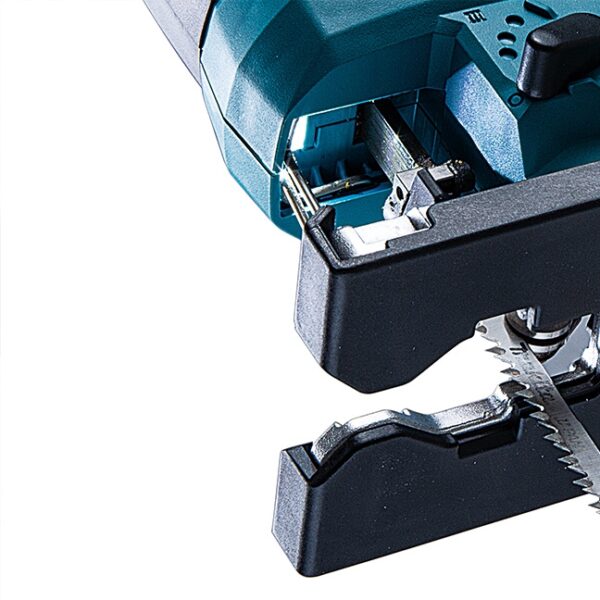

- Tool-less blade clamp for easy blade change with one hand
- Optional Light reduction function reduces the glare of the light for various angle cuts
- Dust nozzle can be attached for connection to Makita vacuum cleaner
- Electric brake for increased productivity
- Blower feature keeps cutting line free of saw dust
- Handy rip fence (guide rule) allows you to do extra-accurate straight cuts and circular cuts (optional)
- Extreme Protection Technology (XPT):
-
-
- Engineered for improved dust and water resistance for operation in harsh conditions
-
-
- Battery protection circuit :
-
-
- Protects against overloading, over-discharging and over-heating
-
-
Specifications:
- Battery voltage and chemistry: 18 volt Lithium-ion
- Maximum cutting capacities:
-
-
- 3/8″ (10mm) in steel
- 5-5/16″ (135mm) in wood
- 25/32″ (20mm) in aluminum
-
-
- Strokes per minute range: 800 to 3,000 SPM
- Length of stroke: 7/8″ (23 mm)
- Vibration level: 7.4 m/s2
- Noise level: 82 dB(A)
- Overall length: 10-1/4″ (259 mm)
- Net weight: 3.8 lbs (1.7 kg)
