Makita BAC01 Power Converter

Description

Makita BAC01 Power Converter

Makita BAC01 Power Converter:

Features:

• Product no. BAC01

  Powered by Makita portable backpack power supply
• Works with the following Makita products:
  • • • PDC01X2 18Vx2 / 18V LXT Portable Backpack Power Supply Kit
      • PDC1200A02 Portable Battery Backpack
• Turns DC power into AC power suitable for powering electric tools and appliances

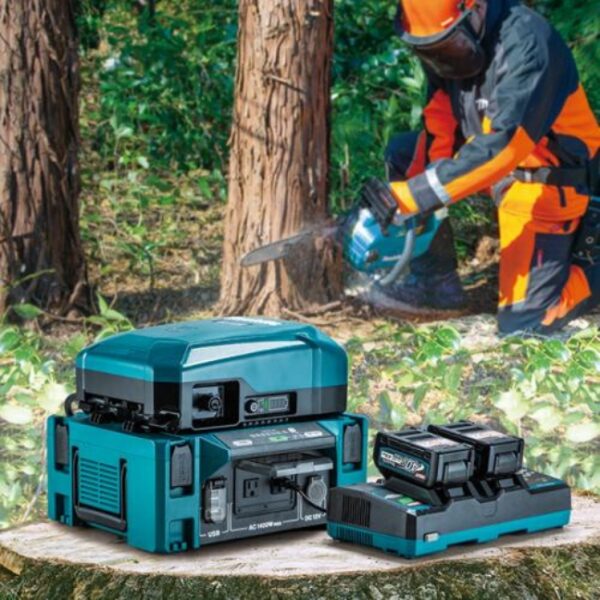

• Ideal as an emergency power source or for outdoor leisure activities

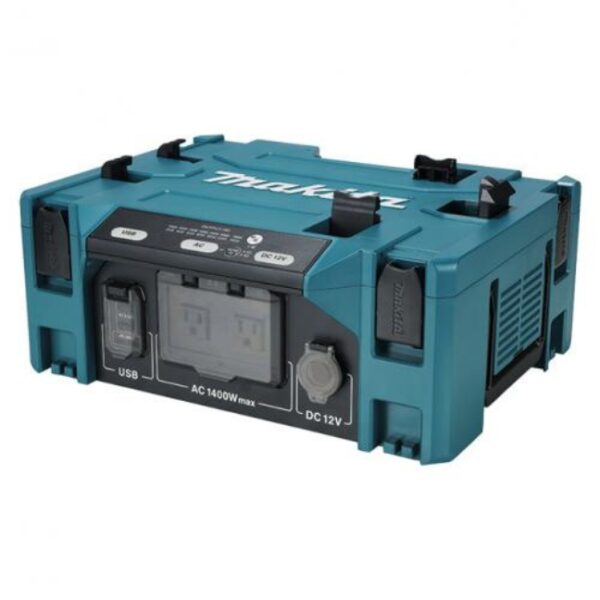

• Equipped with multiple outlets including:
  • • • Two AC outlets
      • Two Type-A USB ports
      • Two Type-C USB ports
      • One 12V DC port
• Onboard display indicates with LED lights the 7 wattage outputs:
  • • • 200, 400, 600, 800, 1000, 1200 and 1400 watts
• 1400W LED light will flash when:
  • • • AC power outlets alone reaches 1450 watts
      • Or total power output reaches 1500 watts
• Built-in audible buzzer warns the user when the unit stops supplying power output due to:
  • • • Overload, high temperature, low battery capacity or other malfunctions
• AC power output of:
  • • • 1400W (continuous output)
      • 2800W (maximum output)
      • With 50/60Hz (switchable frequency)
• AC power with pure sine wave enables the use of delicate electronic devices
• AC power is compatible with:
  • • • Battery chargers
      • Small home appliances
      • Electronic devices such as computers
• Compatible with the Makita MAKPAC system:
  • • • Allowing for easy transportation on the MAKPAC trolley or cart

Specifications:

• Battery Voltage: 36V
• Inverter Capacity W(VA):
  • • • Continuous Rating Output: 1,400
      • Max Output: 2,800
• AC Output Voltage: 120V
• AC Output:
  • • • With Pure Sine Wave, Frequency: 50/60 Hz Switchable, 2 AC Outlets

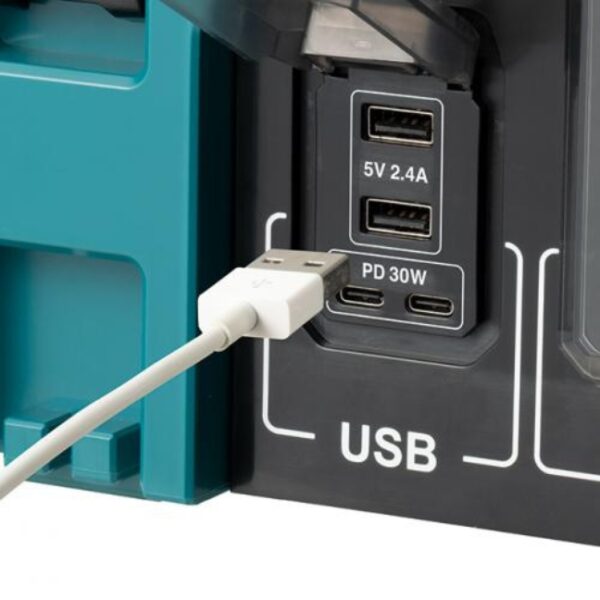

• USB Outlets:
  • • • 2 Type-A (5V/2.4A) USB Output Ports
      • 2 Type-C (USB-PD 30W) USB Output Ports
• DC Output: One 12V/10A Outlet Socket
• Continuous Run Time (Approx.) On A Fully Charged Power Supply:
  • • • 56 Minutes With PDC1200 (When Discharging At A Rate Of 1,000W(VA)
      • 20 Minutes With PDC01 (When Loaded With Four BL1860B Batteries And Discharging At A Rate Of 750W(VA)
      • Warning Buzzer: Yes
      • Battery Capacity
      • High Temperature
      • Overload)
• Overload Protection: Yes
• Protection Against Electric Shock: Double Insulation
• Weight:
  • • • 7.3 kg (16.1 lbs.) BAC01 Only
      • 12.8 kg (28.2 lbs.) With PDC01 With Four BL1860B Batteries
      • 16.2 kg (35.7 lbs.) With PDC1200
