Description
Knipex 9K989820US VDE 1000V Insulated Automotive Pliers and Screwdriver Set 5-Piece
The Knipex 9K989820US VDE 1000V Insulated Automotive Pliers and Screwdriver Set 5-Piece includes:

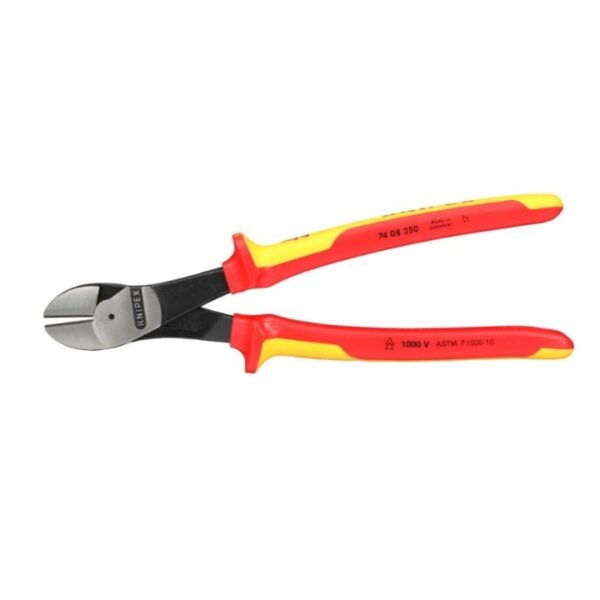

- 7408250US: 10″ High Leverage Diagonal Cutters-1000V Insulated
- 8808250US: 10″ Alligator® Water Pump Pliers-1000V Insulated
- 982402: PH2 x 4″ Shaft x 8-1/4″ Phillips Screwdriver 1000V Insulated
- 982065: 1/4″ tip x 6″ Shaft x 10-1/4″ Slotted Screwdriver 1000V Insulated
- 982040: 5/32″ tip x 4″ Shaft x 8″ Slotted Screwdriver 1000V Insulated
Features:
- Catalog no. 9K989820US
- Insulation:
-
-
- Designed in accordance with national and international standards
- Reduces risk of injury if the tools make contact with an energized source with voltage up to 1000 volts
-
-
- 7408250US: 10″ High Leverage Diagonal Cutters-1000V Insulated:
-
-
- 20% less effort required compared to conventional diagonal cutters of the same length
- High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
- 10″ length suitable for copper conductors up to 16 mm² and aluminum conductors up to 35 mm²
-
-
- 8808250US: 10″ Alligator® Water Pump Pliers-1000V Insulated:
-
- Offers 9 adjustment positions for 30% more gripping capacity
- Good access to the workpiece due to slim size in the head and joint area
- Self-locking on pipes and nuts means no slipping off the workpiece and low hand force required
-
- 982402: PH2 x 4″ Shaft x 8-1/4″ Phillips Screwdriver 1000V Insulated
- 982065: 1/4″ tip x 6″ Shaft x 10-1/4″ Slotted Screwdriver 1000V Insulated
- 982040: 5/32″ tip x 4″ Shaft x 8″ Slotted Screwdriver 1000V Insulated
Specifications:
- Country of Origin: Germany
- 1000 Volt Insulated: Yes
- ESD Indicator: No
- Material Types:
-
-
- Chrome Vanadium Steel
- Chrome vanadium heavy-duty steel, forged, oil-hardened
-
-
- Handle Types:
-
-
- 1000V Insulated, multi-component, ASTM
- 1000V Insulated, multi-component, VDE
-
-
- Gripping Surface: Serrated
- Surface Finish: Polished
- Other Surface Finish: Black atramentized
- Joint Types: Box-joint / Forged-in axle
- Cutting Capacities:
-
-
- Piano Wire 1/8″ (7408250US)
- Hard Wire (Steel Wire) 9/64″ (7408250US)
- Medium Hard Wire (Nail) 3/16″ (7 08250US)
-
-
- Cutting Edge Shape: Bevel
- Number of Adjustment Positions: 9 (8808250US)
- Maximum Jaw Opening:
-
-
- Round Pipe 1-31/32″ (8808250US)
- Hex: 1-13/16″ (8808250US)
-
-
