Knipex 9K0080142US VDE 1000V Insulated Pliers Set 5-Piece

Knipex 9K0080142US VDE 1000V Insulated Pliers Set 5-Piece

The Knipex 9K0080142US VDE 1000V Insulated Pliers Set 5-Piece includes:

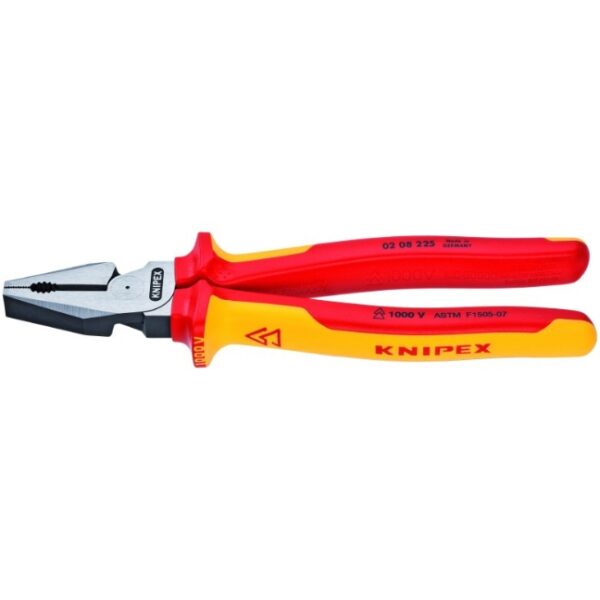

• 0208225 9″ (225mm) VDE 1000V Insulated High Leverage Combination Pliers

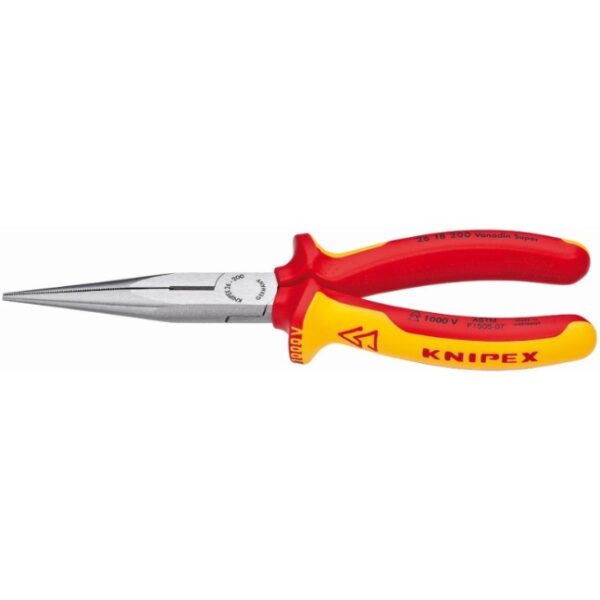

• 2618200 8″ (200mm) Long Nose Pliers with Cutter – 1000V Insulated

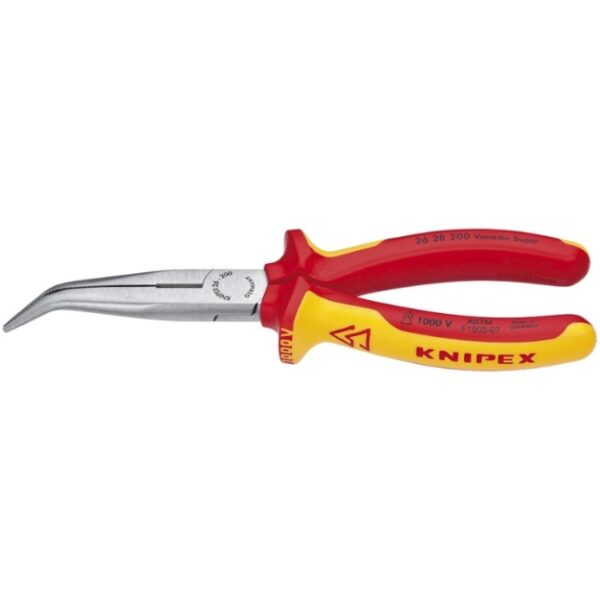

• 2628200 8″ (200mm) Long Nose Pliers – VDE 1000V Insulated

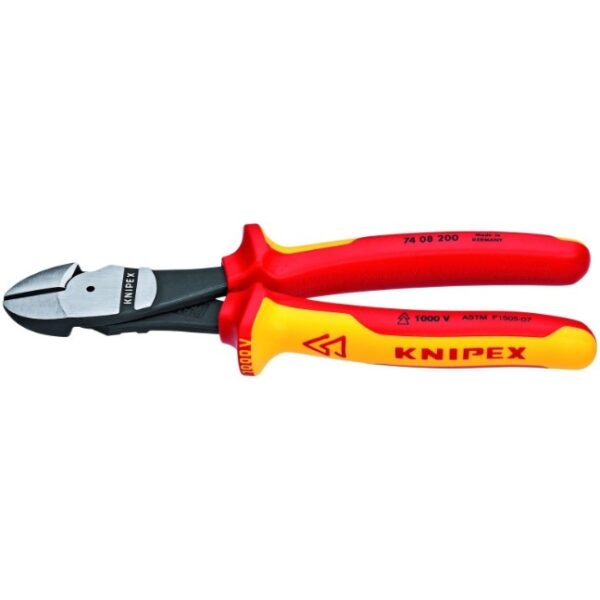

• 7408200 8″ (200mm) High Leverage Diagonal Cutter – VDE 1000V Insulated

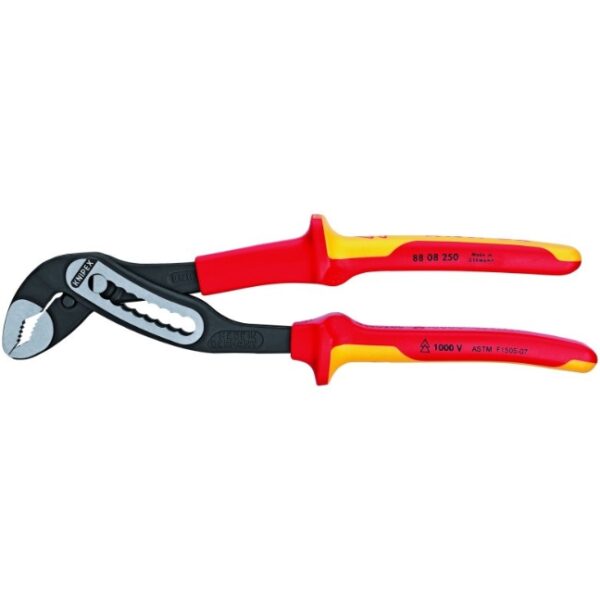

• 8808250 10″ (250mm) ALLIGATOR Water Pump Pliers – 1000V Insulated

Features:

• Catalog no. 9K0080142US
• Insulation:
  • Designed in accordance with national and international standards
  • Reduces risk of injury if the tools make contact with an energized source with voltage up to 1000 volts
• 02 08 225 US – 9″ High Leverage Combination Pliers-1000V Insulated:
  • 35% less effort required than with conventional combination pliers due to high leverage
  • Easier cutting, powerful gripping, bending and pulling
• 26 18 200 US – 8″ Long Nose Pliers with Cutter-1000V Insulated:
  • Elastic tips
  • Stable even when twisted

Specifications:

• Country of Origin: Germany
• 1000 Volt Insulated: Yes
• ESD Indicator: No
• Material Types:
  • Chrome vanadium electric steel: forged, oil-hardened
  • Chrome vanadium heavy-duty steel: forged, oil-hardened
  • High-grade special tool steel: forged, multi stage oil-hardened
  • Vanadium steel: forged, multi stage oil-hardened
• Handle Type: 1000V Insulated, multi-component, ASTM
• Gripping Surface: Serrated
• Surface Finish: Polished
• Other Surface Finish: Black atramentized
• Joint Type: Box-joint / Rivet / Forged-in axle
• Cutting Capacities:
  • Piano Wire: 3/32″ (02 08 225 US and 74 08 200 US)
  • Hard Wire (Steel Wire): 1/8″ (02 08 225 US and 74 08 200 US); 3/32″ (26 18 200 US and 26 28 200 SBA)
  • Medium Hard Wire (Nail): 1/8″ (26 18 200 US and 26 28 200 SBA); 11/64″ (74 08 200 US)
  • Cu and Al conductor: 35/64″ (02 08 225 US)
• Cutting Edge Shape: Bevel
• Jaw Type: Half-round
• Jaw Length: 2-7/8″ (26 18 200 US)
• Jaw Width: 45/64″ (26 18 200 US)
• Jaw Thickness: 3/8″ (26 18 200 US)
• Tip Thickness: 3/32″ (26 18 200 US)
• Tip Width: 1/8″ (26 18 200 US)
• Angled Head: 40 degree (26 28 200 SBA)
• Max Jaw Opening:
  • Round Pipe: 1-31/32″ (88 08 250 US)
  • Hex: 1-13/16″ (88 08 250 US)
