Description

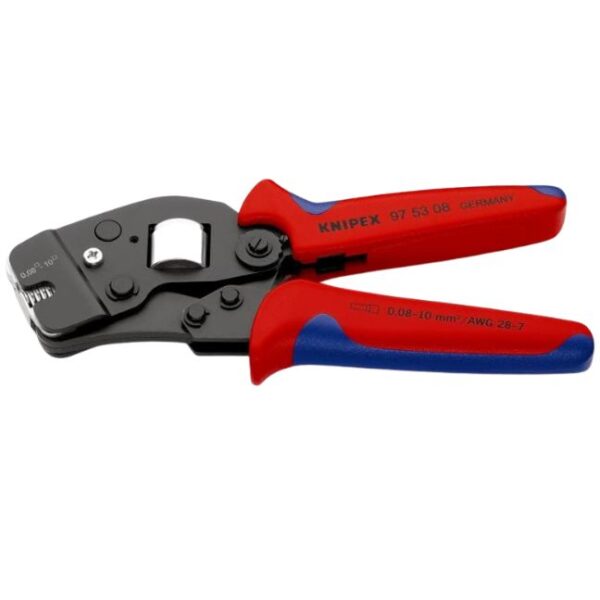

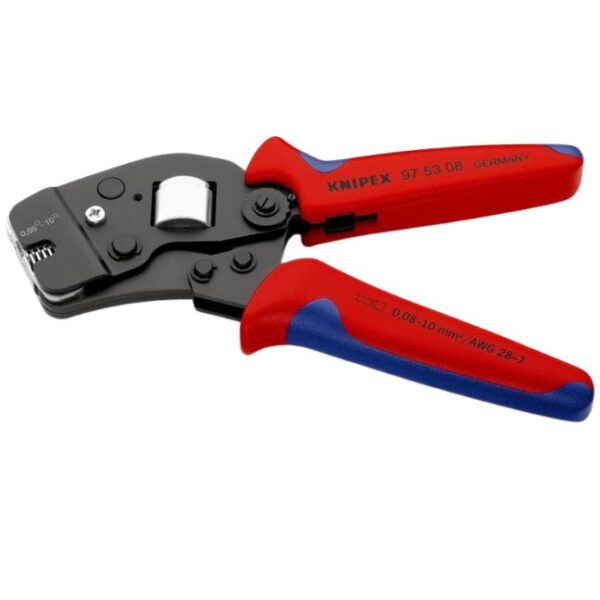

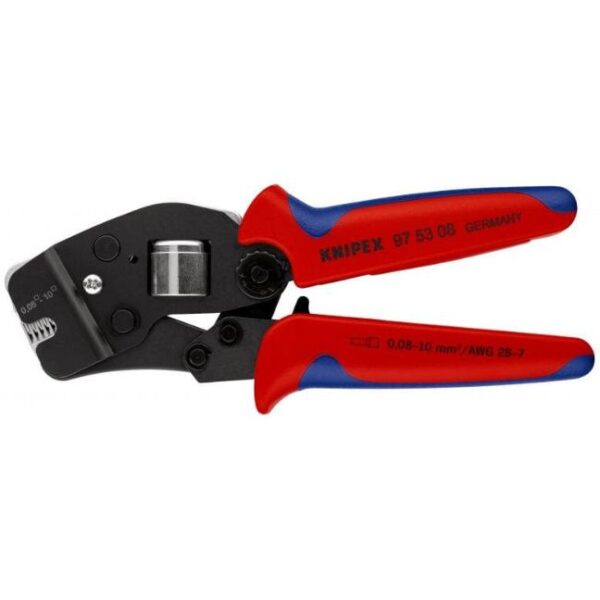

Knipex 975308 7-1/2″ (190mm) Self-Adjusting Crimping Pliers for Wire Ferrules with Front Loading
Knipex 975308 7-1/2″ (190mm) Self-Adjusting Crimping Pliers for Wire Ferrules with Front Loading:
Features:
- Catalog no. 975308

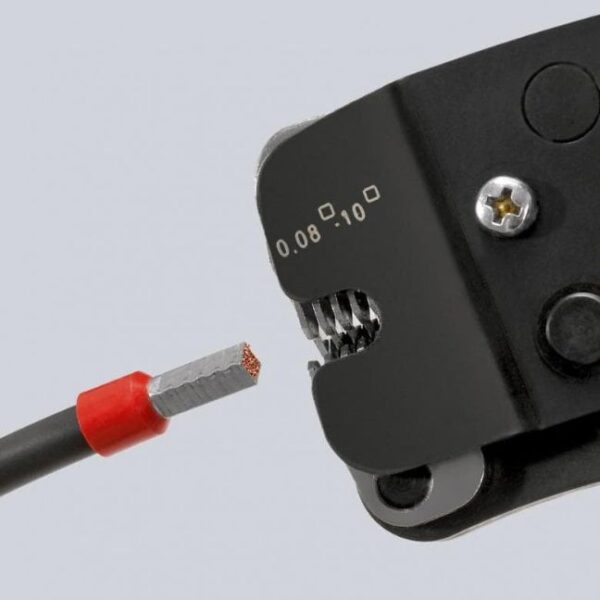

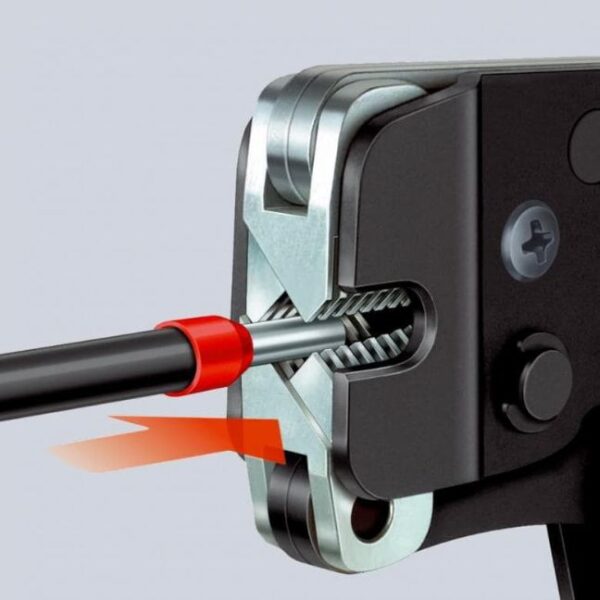

- Self-adjusting crimping pliers for end sleeves (ferrules) with front loading
- For crimping ferrules (end sleeves) according to DIN 46228 parts 1 + 4
- Capacity:
-
-
- 28 to 8 AWG (0.08 – 10.0 mm²) in one profile

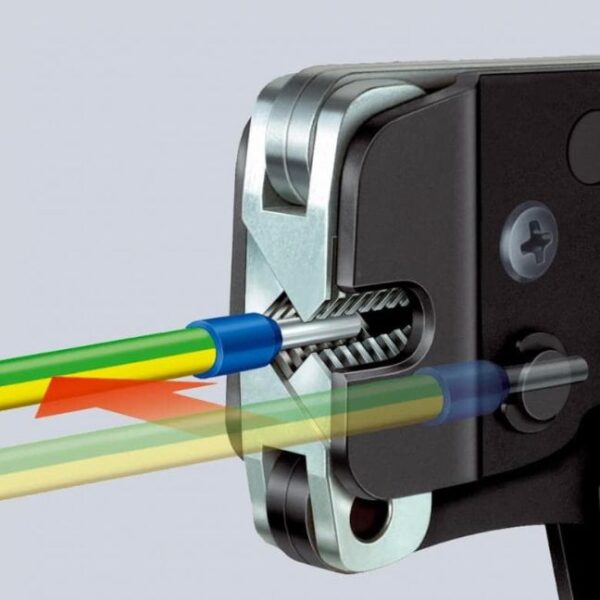

- Wire ferrules (end sleeves) up to 14 AWG (2.5 mm²) can also be loaded parallel from the side
- Particularly suitable for all twin ferrules (end sleeves) up to 2 x 4 mm² or 2 x AWG 10
-
-
- Self-adjustment to the size of ferrules (end sleeves) required
- Integral lock with self-releasing mechanism provides:
-
-
- Repetitive high crimping quality
-
-
- Precisely calibrated in the factory
- Optimum transmission of force due to toggle lever for fatigue-reduced operation
- High operation comfort thanks to handy shape and low weight
- Chrome vanadium electric steel in special quality, oil-hardened
Specifications:
- Country of Origin: Germany
- Length: 7-1/2″
- Width: 2-7/8″
- Height: 1″
- Weight: 1.055 lbs.
- 1000 Volt Insulated: No
- Spring Loaded: Yes
- Material Type: Chrome vanadium electric steel, oil-hardened
- Handle Type: Multi-component
- Surface Finish: Black-oxide
- Other Surface Finish: Burnished
- Crimping Profile: Automatic square crimp
- Crimping Positions: 1
