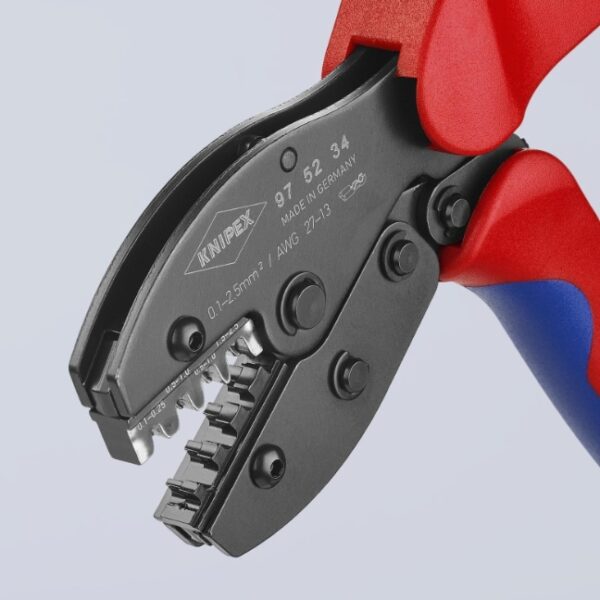

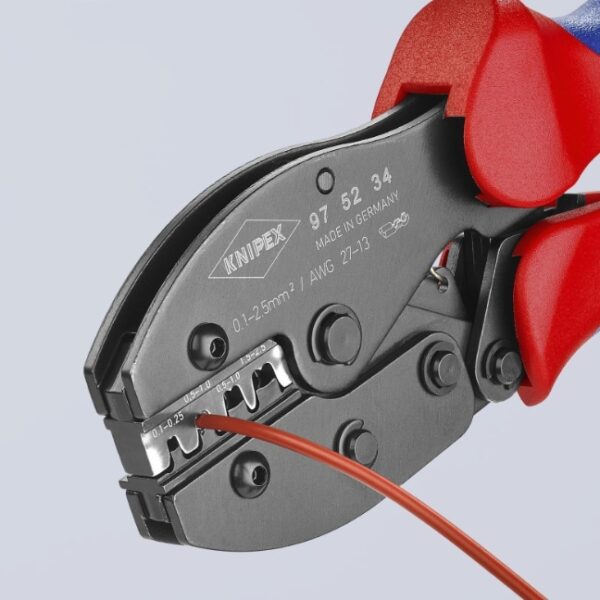

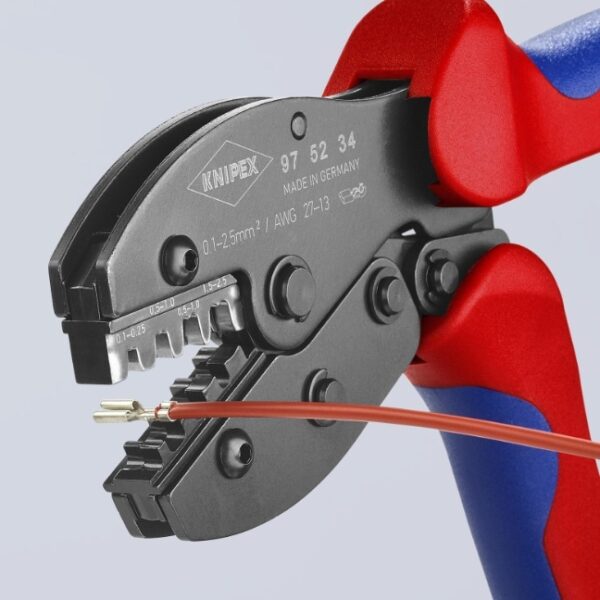

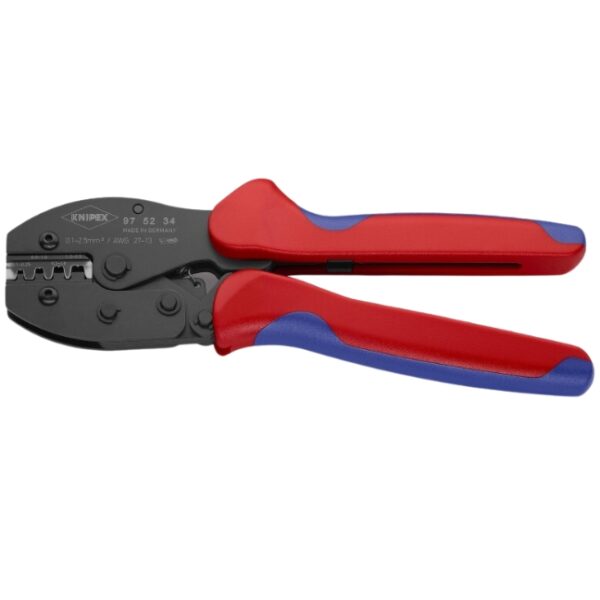

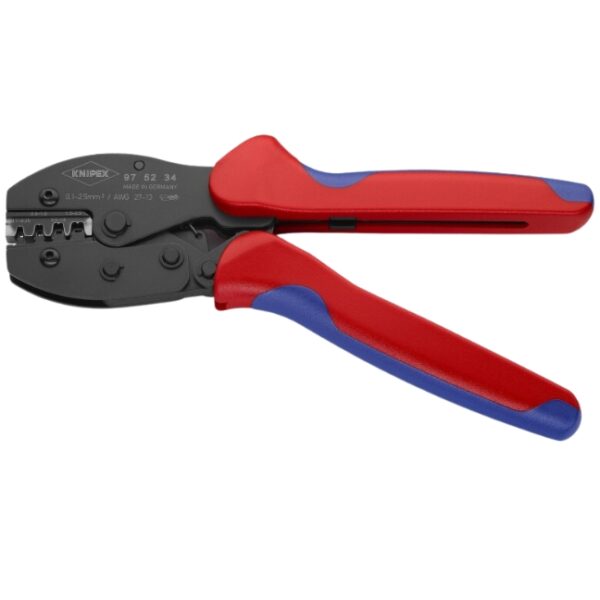

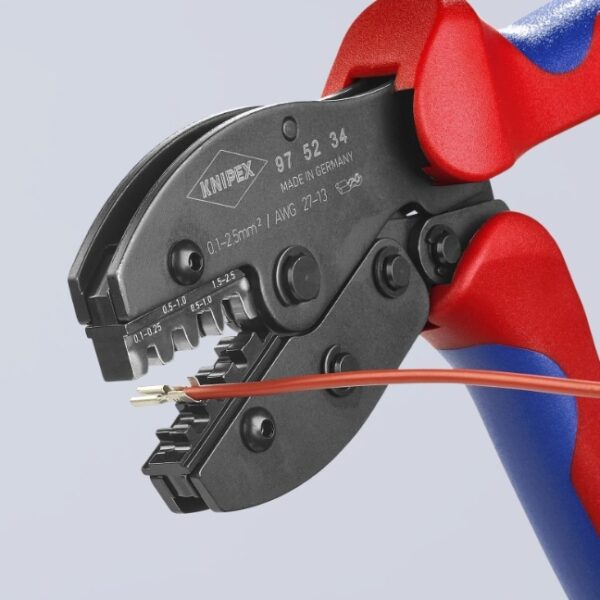

Knipex 975234 8-1/2″ Crimping Pliers for Non-Insulated Open Plug-Type Connectors

Knipex 975234 8-1/2″ Crimping Pliers for Non-Insulated Open Plug-Type Connectors

Knipex 975234 8-1/2″ Crimping Pliers for Non-Insulated Open Plug-Type Connectors:

Features:

• Catalog no. 975234
• For crimping non-insulated open plug-type connectors:
  • • • Plug width 2.8 and 4.8 mm
• Capacity:
  • • • 0.1 to 1.25 mm²
      • 26 to 14 AWG
• Integral lock (self-releasing mechanism) ensures repetitive, high crimping quality
• Crimping pressure has been set precisely (calibrated) in the factory
• Optimum transmission of force due to toggle lever for fatigue-reduced operation
• Good handling due to:
  • • • Favorable handle position
      • Low weight
      • Short design
      • Ergonomically shaped handles
• Chrome vanadium electric steel in special quality; oil-hardened

Specifications:

• Country of Origin: Germany
• Length: 8-1/2″
• Width: 2-5/8″
• Height: 1-1/4″
• Weight: 1.07 lbs
• 1000 Volt Insulated: No
• Material Type: Chrome Vanadium electric steel, oil-hardened
• Handle Type: Multi-component
• Surface Finish: Burnished
• Crimping Profile: F crimp
• Crimping Positions: 4
• Color: Red/Blue
