Description

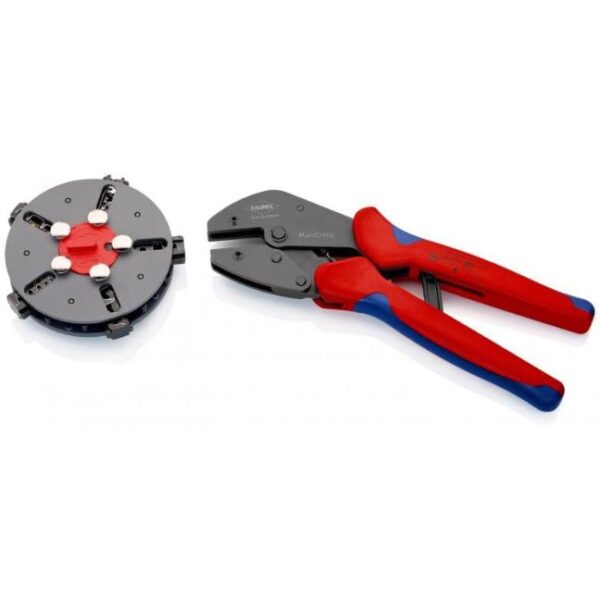

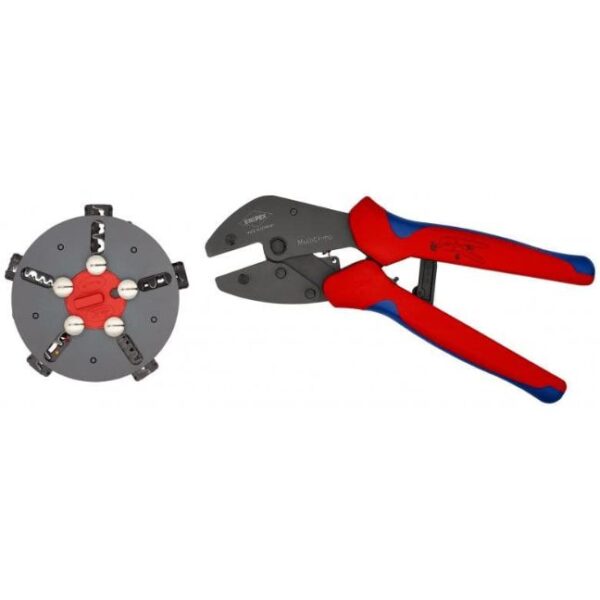

Knipex 973302 9-1/4″ (250mm) MultiCrimp Crimping Pliers with 5 Crimping Dies
The Knipex 973302 9-1/4″ (250mm) MultiCrimp Crimping Pliers with 5 Crimping Dies includes:
- Quick die change magazine with five crimping dies:
-
-
- Non-insulated, open plug connectors (plug width 4.8 + 6.3 mm) from 0.5 to 6.0 mm²
- Insulated cable lugs, plug connectors and butt connectors from 0.5 to 6.0 mm²
- Insulated and non-insulated end sleeves from 0.25 to 6.0 mm² and 10 / 16 and 25 mm²
- Non-insulated crimp terminals, tubular cable lugs and compression cable lugs in accordance with DIN 46234 and DIN 46235
- Non-insulated crimp terminals, butt connectors and press connectors in accordance with DIN 46341 and DIN 46267 of 0.5 – 10 mm²
-
-
Features:
- Article no. 973302
- Lever Action Crimping Pliers with changer magazine

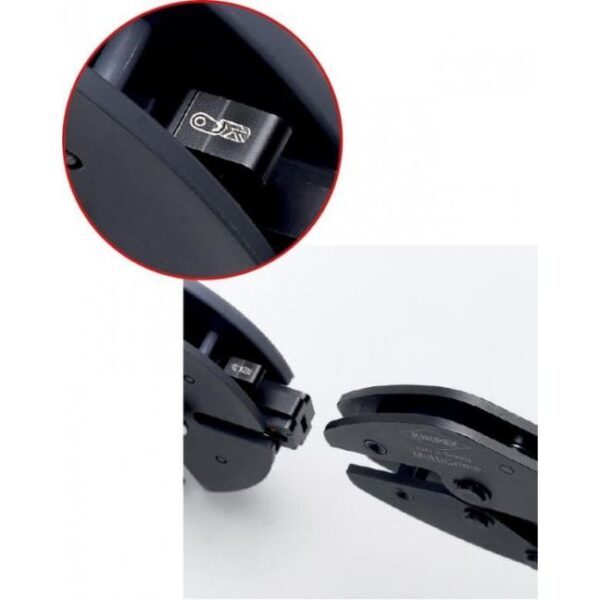

- Quick die change magazine and 5 crimping dies that can be switched without tools
- Five interchangeable crimping dies for:
-
-
- Non-insulated, open plug connectors (plug width 4.8 + 6.3 mm) from 0.5 to 6.0 mm²
- Insulated cable lugs, plug connectors and butt connectors from 0.5 to 6.0 mm²
- Insulated and non-insulated end sleeves from 0.25 to 6.0 mm² and 10 / 16 and 25 mm²
- Non-insulated crimp terminals, tubular cable lugs and compression cable lugs in accordance with DIN 46234 and DIN 46235
- Non-insulated crimp terminals, butt connectors and press connectors in accordance with DIN 46341 and DIN 46267 of 0.5 – 10 mm²
-
-
- Cutting capacity in square millimeters: 0.5 to 6.0 mm²
- Just one tool for the most common crimping applications
- Crimping dies changed quickly and easily without any additional tool
- Sorted and protected storage of the interchangeable dies in a round magazine
- Comfortable, powerful crimping pliers in professional quality
- Same reliable crimping results as with fixed crimping dies
- Precision dies and ratchet mechanism (unlockable):
-
-
- Deliver consistently high crimping quality
-
-
- Special quality chrome vanadium electric steel: oil-hardened
- Round magazine: glass fiber reinforced plastic
Specifications:
- Country of Origin: Germany
- Length: 9-1/4″
- Width: 3″
- Height: 1-1/4″
- Weight: 1.325 lbs.
- 1000 Volt Insulated: No
- Material Type:
-
-
- Chrome vanadium electric steel, oil-hardened
-
-
- Other Material Type:
-
-
- Round magazine: fiberglass reinforced plastic
-
-
- Handle Type: Multi-component
- Surface Finish: Black-oxide
- Other Surface Finish: Burnished
- Crimping Profile:
-
-
- F crimp
- Oval crimp
- Trapezoid crimp
- Trapezoid indent crimp
- W crimp
-
-
- Crimping Positions: Set of dies
Also available: Knipex 973301 9-1/4″ (250mm) MultiCrimp Crimping Pliers with 3 Crimping Dies
