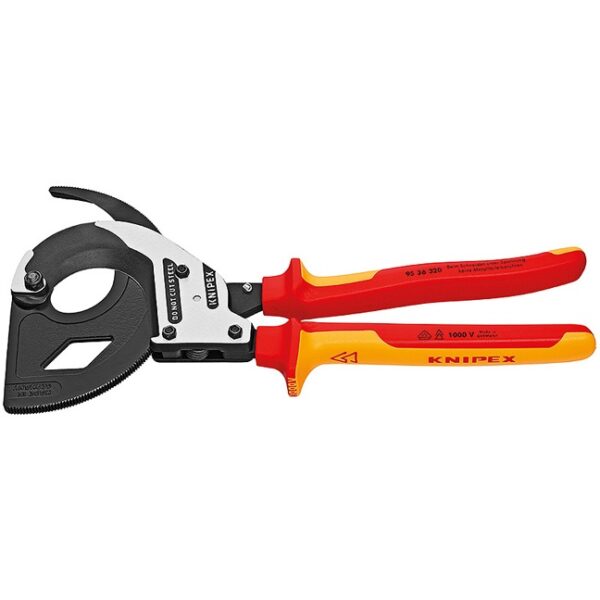

Knipex 9536320 12-1/2″ (320mm) Ratchet Action Cable Cutters – 1000V Insulated

$570.86

Special Order Item (Ships within 7-10 Business Days)

Backorder

UOM: EA SKU: 9536320 Categories: , , UPC: 843221019594

Description

Knipex 9536320 12-1/2″ (320mm) Ratchet Action Cable Cutters – 1000V Insulated

Knipex 9536320 12-1/2″ (320mm) Ratchet Action Cable Cutters – 1000V Insulated:

  • Multi-Component VDE Tested Insulated handles
  • Insulated according to IEC 60900 – usable up to 1000V AC / 1500V DC
  • Complies with GPSG (German Equipment and Product Safety Act)

Features:

  • Product no. 9536320
  • Multi-component insulated handle grips
  • With opening spring
  • Length: 12-1/2″ (320mm)
  • Weight: 1.83 lbs (830 grams)
  • For cutting copper and aluminum single conductors as well as multiple stranded cables
  • Cutting Capacity:
        • Copper cable, multiple-stranded – diameter: 2-23/64″ (60 mm) / 23-5/8 in2 (600 mm2)
        • MCM: 1200
  • Caution: Not suitable for steel wire and wire rope
  • Easy handling due to low weight and compact construction
  • Great in confined areas
  • Cuts through copper and aluminum cables with diameters of up to 2 23/64″ (60 mm) in one-hand and two-hand operation
  • Hardened cutting edges, precisely ground, cut smoothly and neatly without crushing
  • Cuts copper and aluminum single conductors as well as multiple stranded cables
  • Innovative three-stage ratchet-drive with high leverage for easy cutting in one-hand and two-hand operation
  • Fixed handle with support area for laying down the pliers when cutting
  • Made of high-grade special tool steel, forged, oil-hardened

3 Gear Drive = 3 Operating Modes:

  1. Full lift of handles and one-handed operation when cutting through insulation material
  2. Sliding the sickle knife forward when cutting through the stranded conductor with two hand through use of the central lifting area (handling opening of between 1/3 and 2/3)
  3. Pushing the sickle knife forward with one hand to cut through the stranded conductor through use of the first third of the handle lift with one or two hands

Available sizes:

Additional information

Weight 5 lbs
Brand Name

Plier Length

12-1/2"

Insulated

Insulated
