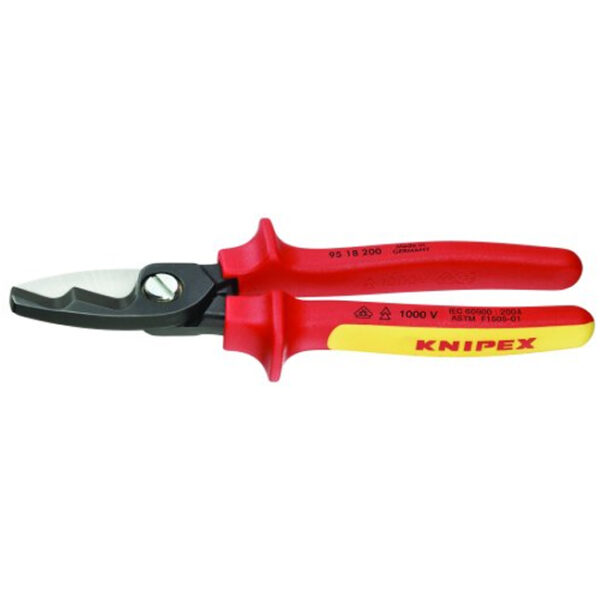

Knipex 9518200 8″ (200mm) Cable Shears with Twin Cutting Edge
Knipex 9518200 8″ (200mm) Cable Shears with Twin Cutting Edge:
Features:
- Part no. 9518200
- Capacity in Copper & aluminum multi-conductor cable:
-
-
- 51/64″ (20.0mm); AWG 2/0 (7 mm²)
-
-
- Designed for cutting copper and aluminum cables
- Designed to cut cables up to Ø 51/64“ in a one handed operation:
-
-
- 1. Initial Cut in the front profile:
-
- Use the front cutting edge to cut the insulating sheath on larger cable diameters which leaves an ergonomic handle opening width
-
- 2. Final Cut in the rear profile:
-
- After cutting the sheath in the front profile, the cut is finished through the metal part of the cable in the rear profile
-
- 1. Initial Cut in the front profile:
-
-
- Not suitable for ACSR, steel wire, and hard-drawn copper conductors
- Precision ground, hardened blades
- Twin cutting edge provides comfortable handle positions in all cutting situations inside the specified cutting capacity
- Clean and smooth cut with no crushing or deformation
- Favorable lever ratio and optimized cutting-edge geometry means less cutting effort is required
- With pinch guard and slip guard
- Self-locking, adjustable screw joint
- High-grade special tool steel – forged and oil-hardened
- Insulated with multi-component grips – VDE-tested
- Insulated and tested according to IEC 60900 and ASTM F1505
Specifications:
- Country of Origin: Germany
- Length: 8″
- Width: 2-1/2″
- Height: 1-1/8″
- Weight: 0.75 lbs.
- 1000 Volt Insulated: Yes
- Material Type: High-grade special tool steel, forged, oil-hardened
- Handle Type: 1000V Insulated, multi-component, ASTM
- Other Surface Finish: Burnished
- Joint Type: Bolted
- Cutting Capacity: Cu and Al conductor 25/32″
