Description

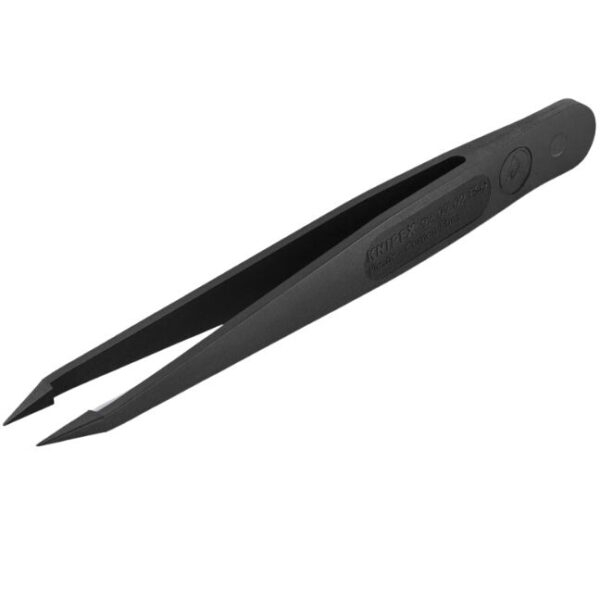

Knipex 920902ESD 4-1/2″ Plastic Gripping Tweezers – ESD Needle Point Tips 0.5mm and 0.3mm
Knipex 920902ESD 4-1/2″ Plastic Gripping Tweezers – ESD Needle Point Tips 0.5mm and 0.3mm:
Features:
- Product no. 920902ESD
- Tips widths: 0.5mm and 0.3mm
- ESD Plastic Tweezers
- Made of 30% carbon fiber reinforced plastic
- Electrically and thermally highly conductive
- Characterized by high resistance to abrasion and scratching
- Surface resistance between 10^2 and 10^4 ohms:
-
-
- Compensates in a controlled manner the differences in potential between the operator and the electronic components
-
-
- Temperature-stable up to 130°C (266ºF):
-
-
- Short-term use is possible at up to 190°C (374ºF)
-
-
- Carbon fiber reinforced plastic of the ESD tweezers:
-
-
- Extremely flexible
- Fatigue-resistant
- Vibration-reducing
- Water-repellent
- Good chemical resistance to most oils, greases, fuels and nonpolar solvents
-
-
- Ideal for maximum surface protection when handling:
-
-
- Sensitive electronic components
- Micro-mechanical parts
- Glass and ceramic components
-
-
- Also available as part of a set: 920005ESD
Specifications:
- Material: carbon fiber reinforced plastic
- Gripping surfaces: smooth gripping surfaces
- Weight: 5 grams
- Dimensions: 115mm x 11.5mm x 15mm
- Standard: DIN EN 61340 -5-1
- Surface: matte finish
- Finish: straight
- Tips widths: 0.5mm and 0.3mm
- Tweezers tip version: needle point
- Corrosion-resistant: yes
- Acid resistance: very good
- ESD-tested: yes
- VDE tested: no
- Sectors: electronics
- Magnetic: non-magnetizable (100%)
- Behavior: electrically dissipative
Available model variations:
- 920901ESD 4-1/2″ Plastic Gripping Tweezers – ESD Blunt Tips 0.35mm and 2.0mm
- 920902ESD 4-1/2″ Plastic Gripping Tweezers – ESD Needle Point Tips 0.5mm and 0.3mm
- 920903ESD 4-1/2″ Plastic Gripping Tweezers – ESD Pointed Tips 0.5mm and 0.4mm
- 920904ESD 4-1/2″ Plastic Gripping Tweezers – ESD Blunt Tips 0.12mm and 3.3mm
- 920905ESD 4-1/2″ Plastic Gripping Tweezers – ESD Blunt Tips 7.7mm and 11.3mm
