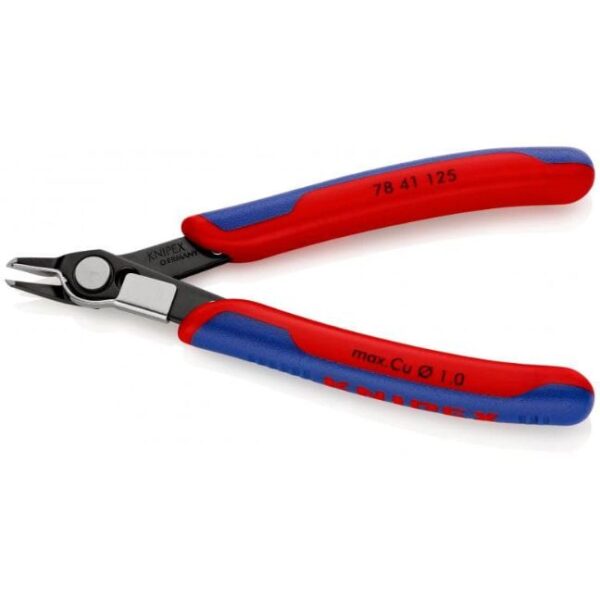

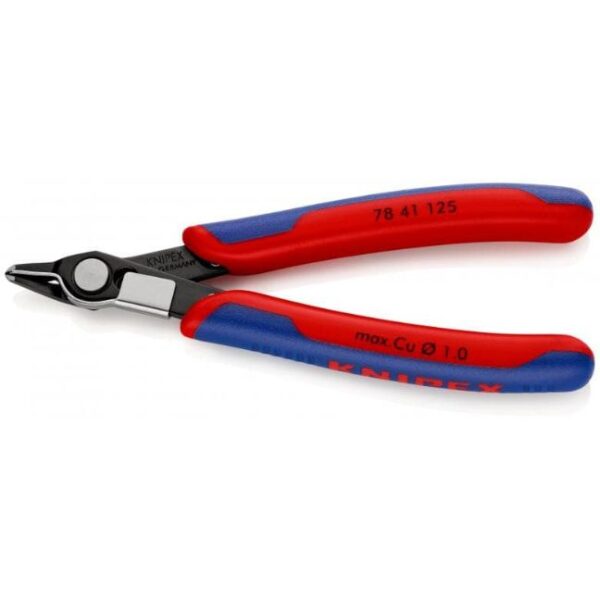

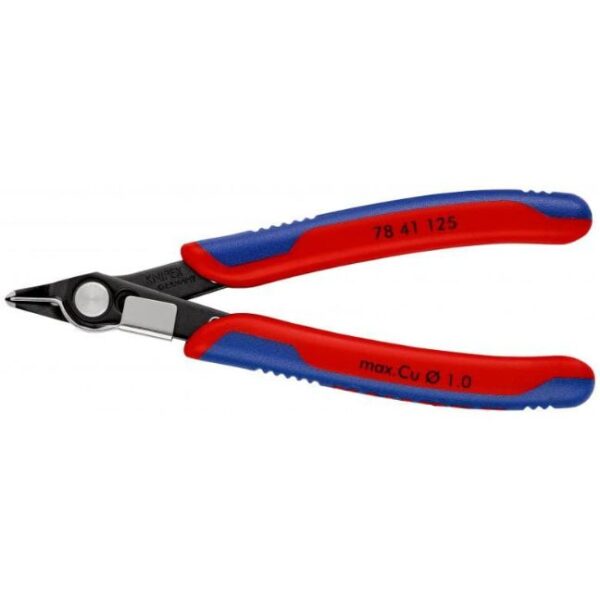

Knipex 7841125 5″ (125mm) Electronics SUPER KNIPS with Lead Catcher – 60HRC

Description

Knipex 7841125 5″ (125mm) Electronics SUPER KNIPS with Lead Catcher – 60HRC

Knipex 7841125 5″ (125mm) Electronics SUPER KNIPS with Lead Catcher – 60HRC:

Features:

• Catalog no. 7841125
• Lead catcher: no uncontrolled loss of cut wire ends
• Precision pliers for ultra fine cutting work in electronics and fine mechanics
• Ground, very sharp cutting edges without bevel for flush cutting perfect for cable ties
• Precision shaped tips cut wires resting on a board from 1/64″ (0.2 mm) diameter
• Joint with stainless steel rivet
• Extremely smooth movement for minimum operator fatigue
• Includes opening spring for easy repetitive work
• Approximately 20% lighter than conventional electronics pliers
• Grooves in handle provide a steady grip when applying slight pressure
• Narrow head
• Cutting edge hardness: approx. 60 HRC
• Special tool steel, burnished
• Precision ground cutting edges with very small bevel suitable for hard wire

Specifications:

• Country of Origin: Germany
• Length: 5″
• Width: 1-7/8″
• Height: 5/8″
• Weight: 0.135 lbs.
• 1000 Volt Insulated: No
• Material Type: Special tool steel
• Handle Type: Multi-component
• Surface Finish: Black Oxide
• Other Surface Finish: Burnished
• Cutting Capacity:
  • • • Soft Wire: 1/64″ to 3/64″
• Cutting Edge Shape: Without bevel
• Cutting Result: Flush

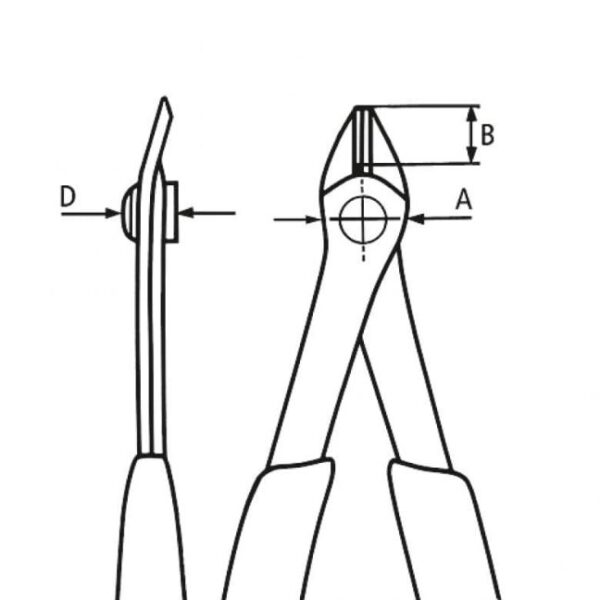

• Jaw Length: 23/64″
• Jaw Width: 17/32″
• Jaw Thickness: 19/64″
• Tip Thickness: 19/64″
• Blade Length: 23/64″
