Description

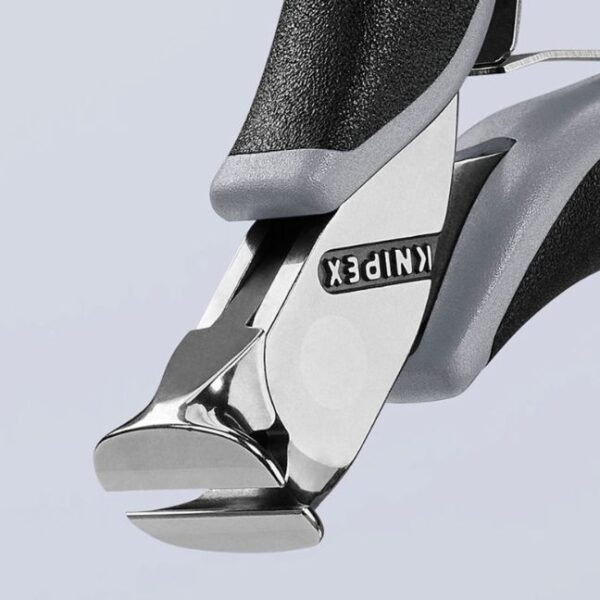

Knipex 6402115ESD 4-1/2″ (115mm) Electronics End Cutting Nippers with ESD Handles
Knipex 6402115ESD 4-1/2″ (115mm) Electronics End Cutting Nippers with ESD Handles:
Features:
- Part no. 6402115ESD
- ESD (electrostatic discharge) handles:
-
-
- Discharge electrostatic energy through the handles in a gradual and controlled manner
- Protects components endangered by electrostatic discharge
-
-
- Precision pliers for ultra-fine cutting work in electronics and fine mechanics
- Precision box joint allows for greater stability
- Low friction double spring for gentle and even opening
- The mirror polish together with a fine film of oil offer effective rust protection:
-
-
- No circuit faults caused by peeling chrome from plated tools
-
-
- Cutting edge hardness (approx. 56 HRC) for longer life and for more durable cutting
- Cutting capacity:
-
-
- up to 5/64″ for soft wire, up to 3/64″ for medium wire and up to 1/64″ for hard wire
-
-
- Ball bearing steel: laser-hardened cutting edges
- Small bevel
- Semi-flush cut
- Head mirror polished
- Handles with multi-component ESD grips
Specifications:
- Country of Origin: Germany
- Length: 4-1/2″
- Width: 1-7/8″
- Height: 7/8″
- Weight: 0.21 lbs.
- 1000 Volt Insulated: No
- ESD Indicator: Yes
- Material Type: Ball bearing steel, laser-hardened cutting edges
- Handle Type: ESD multi-component
- Surface Finish: Polished
- Joint Type: Box-joint with rivet
- Cutting Capacity:
-
-
- Hard Wire (Steel Wire): 1/64″
- Medium Hard Wire (Nail): 3/64″
- Soft Wire: 5/64″
-
-
- Cutting Edge Shape: Small bevel
- Cutting Result: Semi-flush
- Jaw:
-
-
- Length: 15/64″
- Width: 7/16″
- Thickness: 19/64″
-
-
- Tip:
-
-
- Thickness: 5/8″
- Width: 7/16″
-
-
- Angled Head: 90 degree
- Color: Blue/Gray
- Blade Length: 15/64″
Also available:
- 6402115 4-1/2″ (115mm) Electronics End Cutting Nippers with Multi-component Handles
