Knipex 169501SB 5-1/4″ ErgoStrip Universal Stripping Tool – Right Handed

• Article no. 169501SB
• For metric wire only
• Designed for right-handed use
• For stripping for conductor and strand cross-sections of:
  • • • 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4.0 mm²

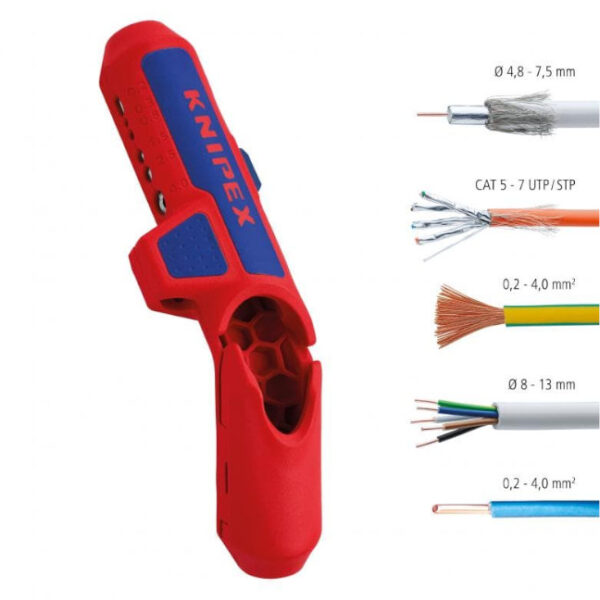

• For the fast and precise stripping of all common round and damp-proof installation cables including:
  • • • NYM cable from 3.0 mm² x 1.5 mm² to 3.0 mm² x 1.5 mm²
      • CAT 5 to 7 twisted pair data cable (UTP / STP
      • 4.8 mm to 7.5 mm Coaxial cable
      • 8.0 mm to 13 mm Round cable

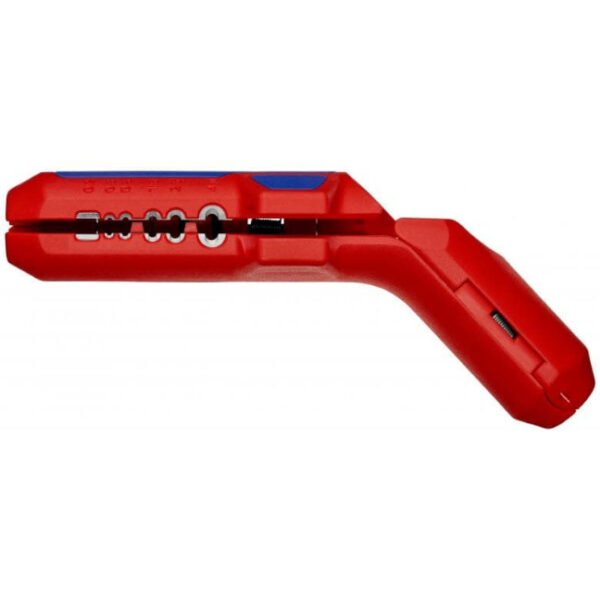

• Conical, slimmed down tool ends for better access in confined areas
• Easy insertion of coax and data cable thanks to opening aid
• Location ridges between stripping holes make for easy alignment of wire
• Opening spring and locking device make the tool easy to open and secure
• Thumb rest area for firm grip of the tool
• Designed for easy longitudinal cutting of cable sheath

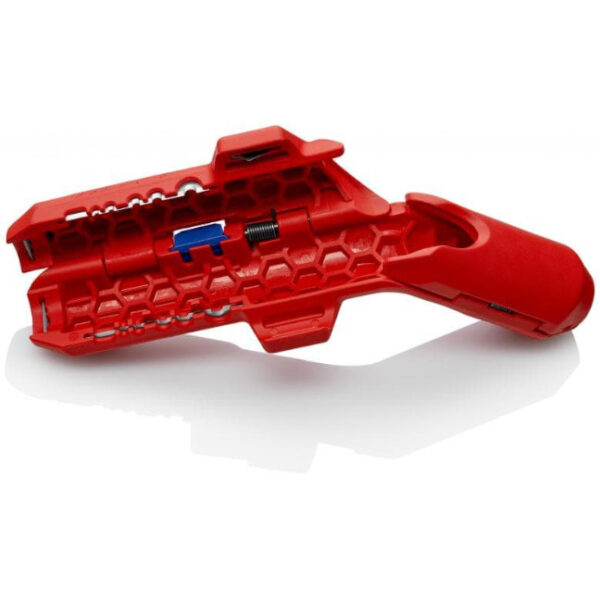

• Body made of stable fiberglass-reinforced plastic
• Multi-component design:
  • • • Soft plastic zone for comfortable use and a secure grip
• Two blades located at the front of the tool:
  • • • For removing outer sheath of NYM cable

Specifications:

• Country of Origin: Germany
• Length: 5-1/4″
• Width: 1-1/2″
• Height: 1″
• Weight: 0.21 lbs.
• 1000 Volt Insulated: No
• Material Type: Fiberglass reinforced plastic
• Handle Type: Multi-component
• Stripping Capacity: 0.2 to 4.0 mm²
