Description

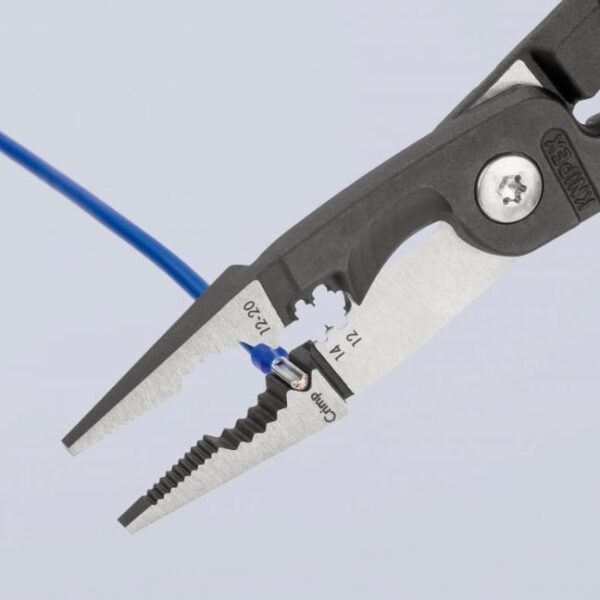

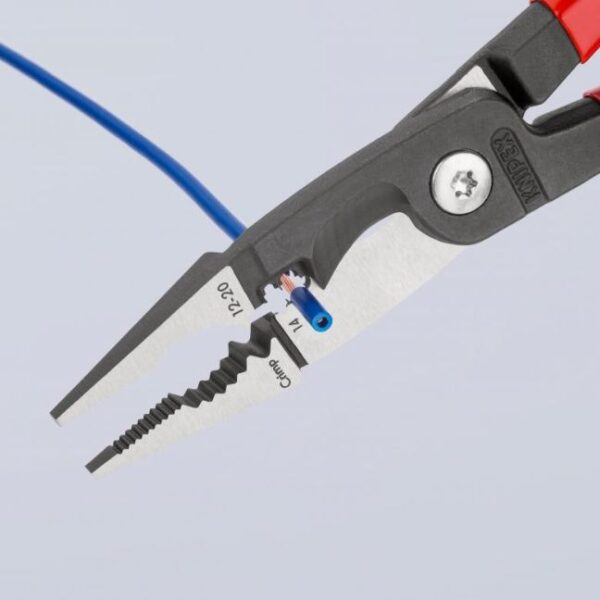

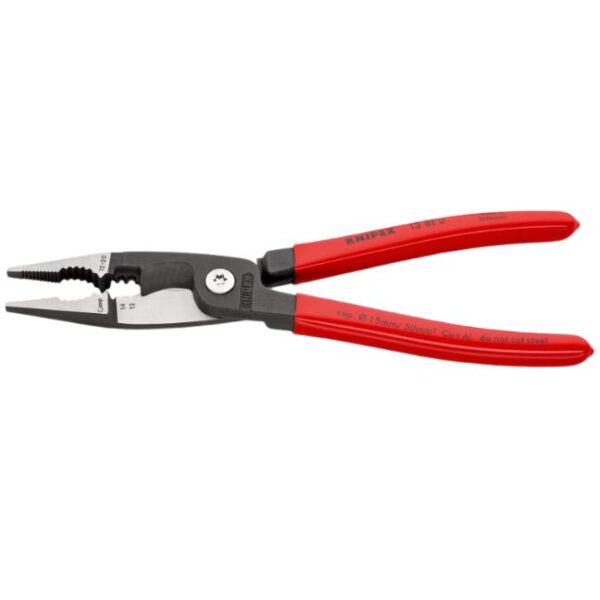

Knipex 13818 8″ (200mm) Installation Pliers
Knipex 13818 8″ (200mm) Installation Pliers for electrical installation:
Features:
- Part no. 13818
- 6 Functions in one pliers:
-
-
- Grips, cuts, strips, bends, crimps and deburrs
-
-
- Smooth surfaces near the tips grip single conductors without damaging them
- Serrated gripping surfaces and pipe grip for gripping flat and round material
- Clear-cut outside edge on the jaw:
-
-
- For working on flush-mounted junction boxes and deburring feed-through holes
-
-
- Stripping holes for 12 to 14 AWG (0.75 – 1.5 mm² and 2.5 mm²)
- Crimp die for end sleeves (ferrules) 12 to 20 AWG (0.5 – 2.5 mm²)
- Cable shears with induction hardened precision cutting edges:
-
-
- For copper and aluminum cables up to 19/32″ dia. (5 x 2.5 mm² / dia. 5 mm)
-
-
- Slim head dimensions for easier access
- Bolted joint: precise, zero-backlash operation of pliers
- High-grade special tool steel: forged, multi stage oil-hardened
Specifications:
- Country of Origin: Germany
- Length: 8″
- Width: 1-5/8″
- Height: 5/8″
- Weight: 0.515 lbs.
- 1000 Volt Insulated: No
- Material Type: High-grade special tool steel, forged, multi stage oil-hardened
- Handle Type: Non-slip plastic
- Gripping Surface: Smooth tip and serrated jaws
- Surface Finish: Polished
- Other Surface Finish: Black atramentized
- Crimping Positions: 1
- Joint Type: Bolted
- Cutting Capacity – Cu and Al conductor: 9/16″
- Cutting Edge Shape: Shear
- Jaw Type: Flat
- Crimping Capacity: 20 to 12 AWG
- Stripping Capacity: 14 and 12 AWG
Available model variations:
