Description
Knipex 002005US High Leverage Diagonal Cutter Set – 3 Piece
The Knipex 002005US High Leverage Diagonal Cutter Set – 3 Piece includes:

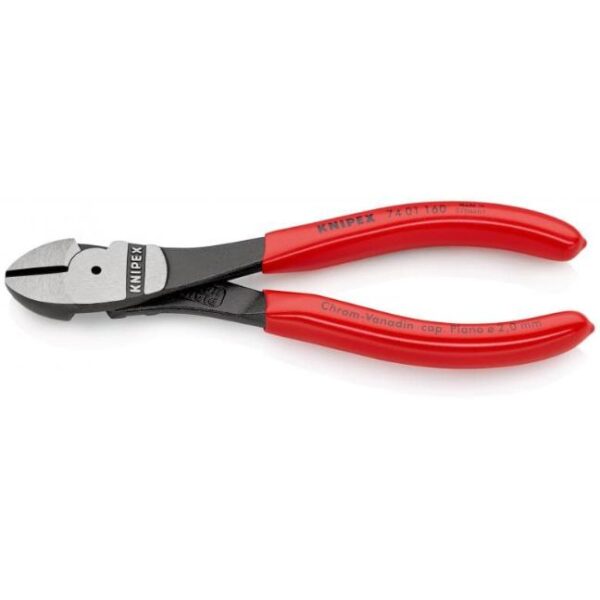

- 7401160 6-1/4″ (160 mm) High Leverage Diagonal Cutter
- 7421200 8″ (200 mm) High Leverage Diagonal Cutter

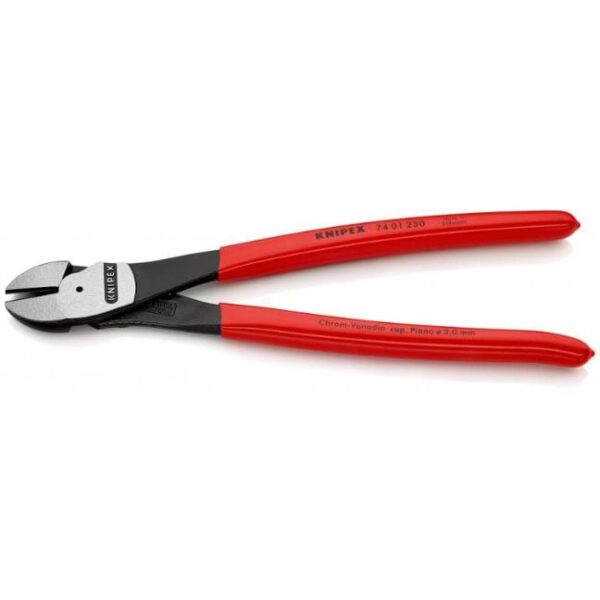

- 7401250 10″ (250 mm) High Leverage Diagonal Cutter
Features:
- Product no. 002005US
- 20% less operating force needed compared to conventional diagonal cutters of the same length
- Forged-on joint axle for the extra heavy duty applications
- Engineered for tough, continuous use
- High cutting performance with minimum effort due to optimum coordination of the cutting edge angle, transmission ratio and ergonomic handle shape
- Precision cutting edges (cutting edge hardness approx. 64 HRC) cut medium wire, hard wire and piano wire
- Chrome vanadium heavy duty steel, forged and oil-hardened
- Comfortable plastic coated handle grips
- Polished head
| Cutting Capacities and Specifications | ||||
| Material | Examples | 7401160 | 7401250 | 7421200 |
| Medium hard (spring steel) wire | Nail, wire pin | 9/64″ (3.5 mm) | 3/16″ (4.6 mm) | 11/64″ (4.2 mm) |
| Hard wire | Wire rope strand steel wire | 7/64″ (2.5 mm) | 9/64″ (3.5 mm) | 1/8″ (3.0 mm) |
| Piano wire | Spring steel wire | 5/64″ (2.0 mm) | 1/8″ (3.0 mm) | 7/64″ (2.5 mm) |
| Length | 6-1/4″ (160 mm) | 10″ (250 mm) | 8″ (200 mm) | |
| Weight | 6.3 oz. | 13.8 oz. | 9.1 oz. | |
