Klein VDV526-200 LAN SCOUT JR. 2 Cable Tester

Klein VDV526-200 LAN SCOUT JR. 2 Cable Tester

The Klein VDV526-200 LAN SCOUT JR. 2 Cable Tester includes:

• Tester
• Remote
• 2 × AAA Alkaline Batteries

Features:

• Catalog no. VDV526-200
• Cable tester for:
  • • • Data (RJ45) terminated cables
      • Patch cords

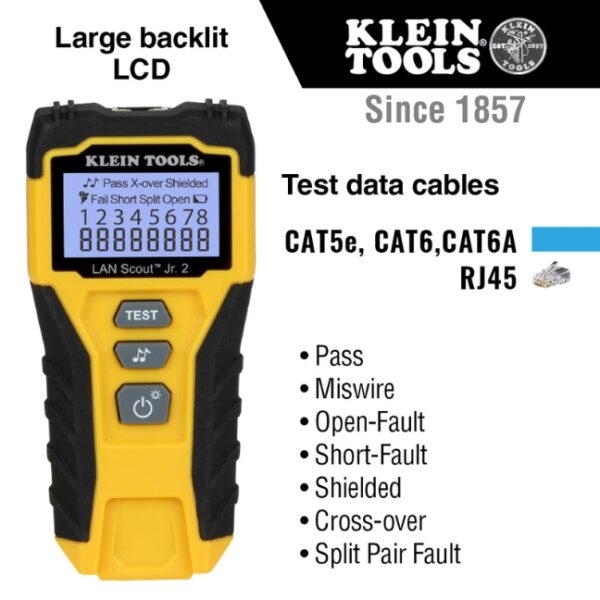

• Large backlit LCD for low lit areas displays pin to pin wiremap results
• Test for:
  • • • Open, Short, Miswire or Split-Pair faults, Cross-over and Shield
• Intuitive user interface features three buttons with simple, easy-to-identify test responses
• Tone on single wire, wire pair or all 8 conductor wires
• Multiple style tone generator (solid / warble):
  • • • Requires probe VDV500-123 (sold separately)
• Auto Power-Off feature:
  • • • 10-minutes in test mode
      • 60-minutes in tone mode
• Soft, slip-resistant, rugged overmold for easy gripping and durability

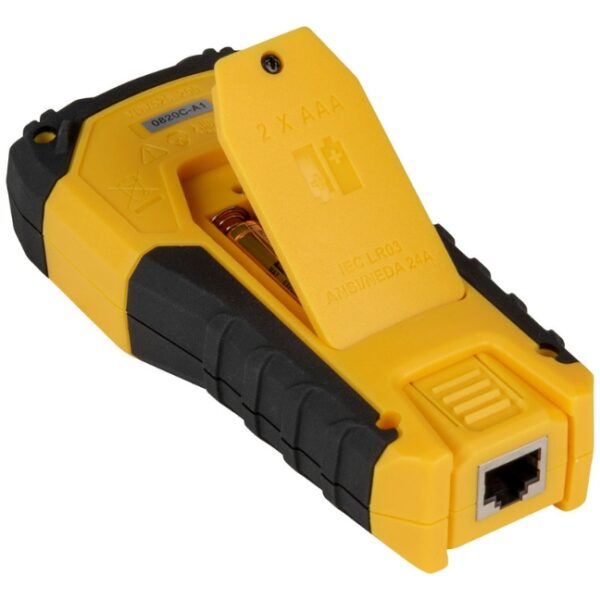

• Replaceable 2 x AAA batteries (included)

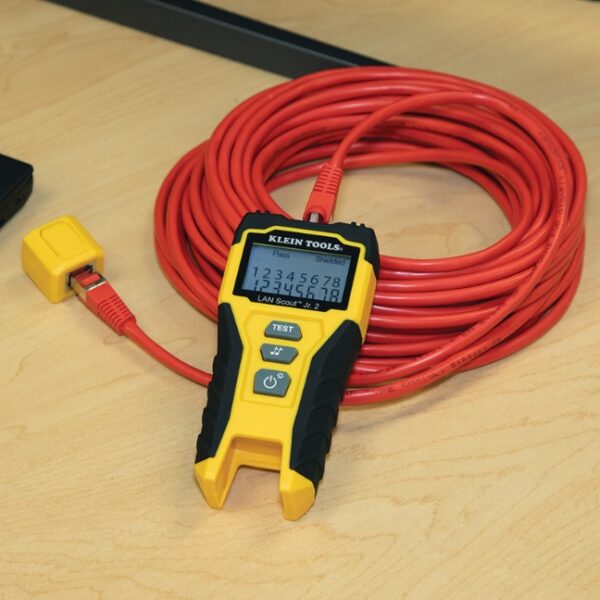

• Replaceable self-storing remote (included)
• Replacement remote VDV999-200 available (sold separately)

Specifications:

• Type: DATA, Voice, LAN
• Application: Cable Testing
• Special Features: Backlit LCD
• Cable Type:
  • • • Shielded or Unshielded; Cat7, Cat6/6A, Cat5E, Cat3
• Overall Length: 5” (13 cm)
• Overall Height: 1” (2.5 cm)
• Overall Width: 2.5” (6.4 cm)
• Material: Plastic and Stamped Metal
• Test-n-Map ID Remotes: 1
• Location ID: No
• Batteries: 2 × AAA Alkaline
• Battery Life:
  • • • Active: 80 hours
      • Standby: 3 years.
• Drop Protection: 2ft (0.6 m)
• Supported Remotes: Self-Storing
• Connection & Adapter Types: RJ45
• Display: LCD
• Multiple Style Tone Generator: Yes
• Faults Detected:
  • • • Pass, Miswire, Open-Fault, Short-Fault, Split Pair and Shield
• Test & Measure Types: Data, RJ45
• Included:
  • • • Tester, Remote, 2 × AAA Alkaline Batteries
• Weight: 4.3 oz (122 g)
