Klein VDV526-100 LAN EXPLORER Network Cable Tester with Remote

$45.26

Backorder

UOM: EA SKU: VDV526-100 Categories: , , UPC: 092644692246

Description

Klein VDV526-100 LAN EXPLORER Network Cable Tester with Remote

The Klein VDV526-100 LAN EXPLORER Network Cable Tester with Remote includes:

  • Tester
  • Remote
  • 9V Battery

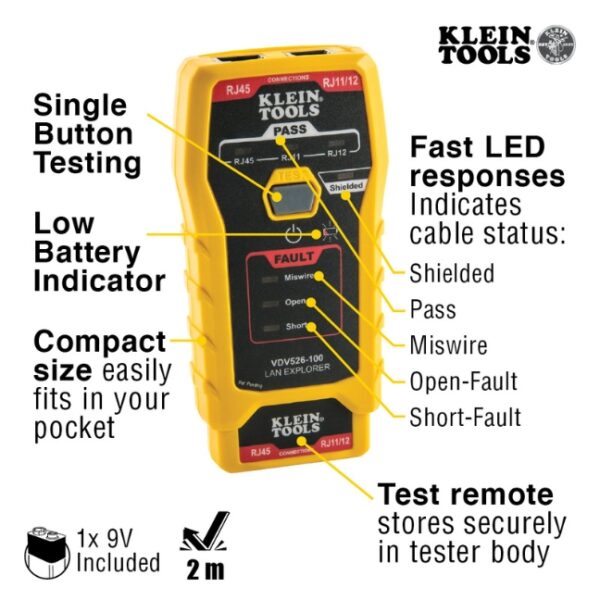

Features:

  • Catalog no. VDV526-100
  • Cable tester with single button testing of:
        • RJ11, RJ12 and RJ45 terminated voice and data cables
  • Tests the following cables:
        • CAT3, CAT5e and CAT6/6A
  • Fast LED responses indicate cable status:
        • Pass, Miswire, Open-Fault, Short-Fault, and Shield

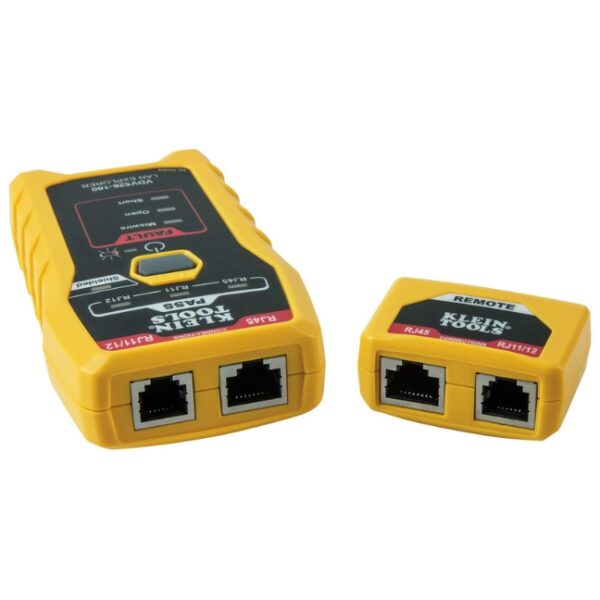

  • Test remote stores securely in tester body
  • Compact tester easily fits in your pocket
  • Auto Power-off feature to conserve battery life (9V included)
  • Low battery indicator
  • VDV999-150 Replacement remote available (sold separately)

Specifications:

  • Type: Twisted Pair, DATA, Voice, LAN
  • Application: Cable Testing to 1000ft (305 m)
  • Special Features: LED response
  • Cable Type: CAT3, CAT5e, CAT6/6A
  • Overall Length: 5” (12.7 cm)
  • Overall Height: 1.25” (3.2 cm)
  • Overall Width: 2.5” (6.4 cm)
  • Material: Plastic and Stamped Metal
  • Test-n-Map ID Remotes: 1
  • Batteries: 1 x 9V
  • Battery Life:
        • Active: 80 hours
        • Standby: 3.5 years
  • Drop Protection: 2ft (0.6 m)
  • Supported Remotes: VDV999150
  • Connection & Adapter Types: RJ11, RJ12, RJ45
  • Display: LED
  • Multiple Style Tone Generator: No
  • Faults Detected:
        • Pass, Miswire, Open-Fault, Short-Fault, and Shield
  • Test & Measure Types:
        • Voice, Data, RJ45, RJ11
  • Included:
        • Tester, Remote, 9V Battery
  • Weight: 4 oz (116 g)
