Description

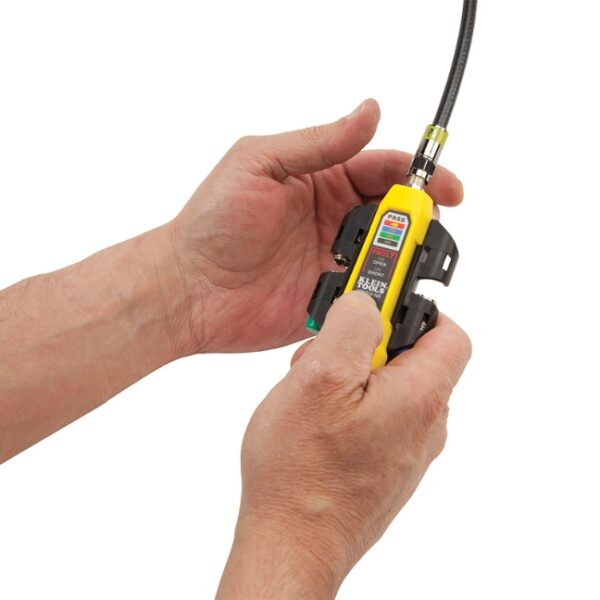

Klein VDV512-101 Coax Explorer 2 Tester and Cable Tester with Remote Kit

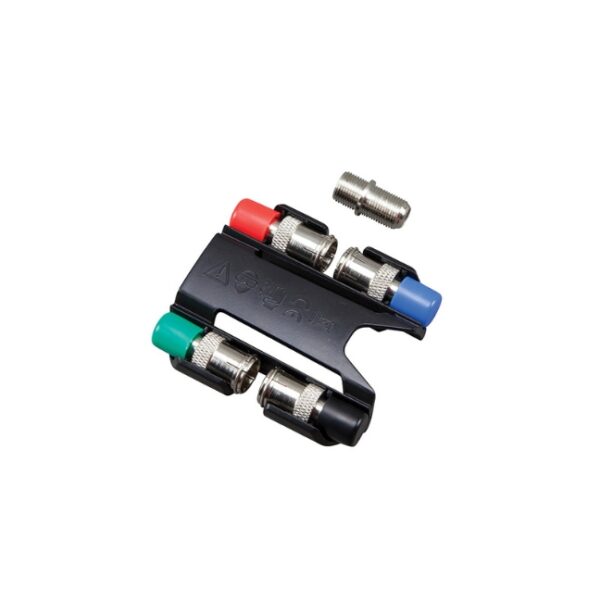

The Klein VDV512-101 Coax Explorer 2 Tester and Cable Tester with Remote Kit includes:
- Tester
- 4 Colored Push-on Remotes
- F-adapter
- Snap-on Remote Holder
- 2 x AAA Batteries
Features:
- Catalog no. VDV512-101

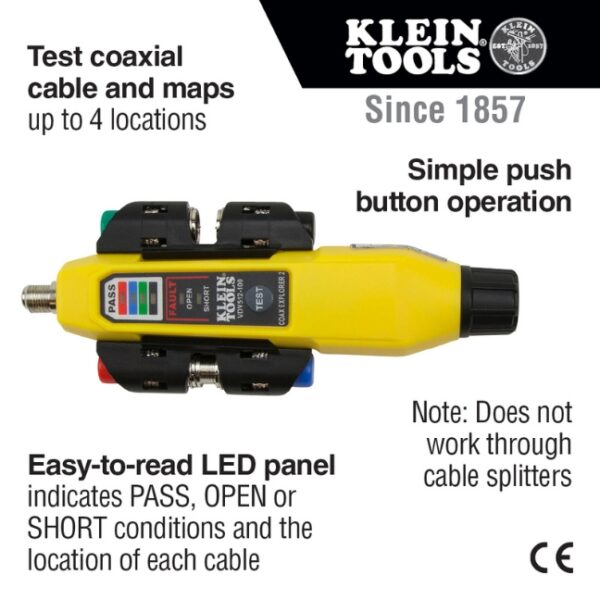

- Cable tester:
-
-
- Tests coaxial cable
- Maps up to 4 locations
-
-
- Simple push-button operation for wire tracing
- Easy to read LED panel indicates:
-
-
- PASS, OPEN, or SHORT conditions
- Location of each cable
-
-
- Color coded push-on remotes:
-
-
- Allow for up to four cables to be tested and mapped
-
-
- Test remotes and F-adapter:
-
-
- Snap into the remote holder and clip onto the tester
- For easy access and storage
-
-
- Uses 2 replaceable AAA batteries
- Note: Does not work through cable splitters
- Carrying clip for easy transport
Specifications:
- Type: Cable Tester
- Application: Wire Tracing of Coaxial Cables
-
Special Features: 4 Color-Coded Push-on Remotes
- Cable Type: RG59, RG6/6Q, RG7, RG11
- Overall Length: 5.75” (14.6 cm)
- Overall Height: 1” (2.5 cm)
- Overall Width: 2.313” (5.9 cm)
- Test-n-Map ID Remotes: 4 (Included)
- Location ID: 4
- Batteries: 2 x AAA
- Connection & Adapter Types: Coax F Adapters
- Included:
-
-
- Tester, Batteries, 4 Colored Push-on Remotes, F-adapter, Snap-on Remote Holder
-
-
- Weight: 4.8 oz (136 g)
