Klein VDV501-853 SCOUT Pro 3 Tester with TEST + MAP Remote Kit

$352.90

Backorder

UOM: EA SKU: VDV501-853 Categories: , , UPC: 092644583346

Description

Klein VDV501-853 SCOUT Pro 3 Tester with TEST + MAP Remote Kit

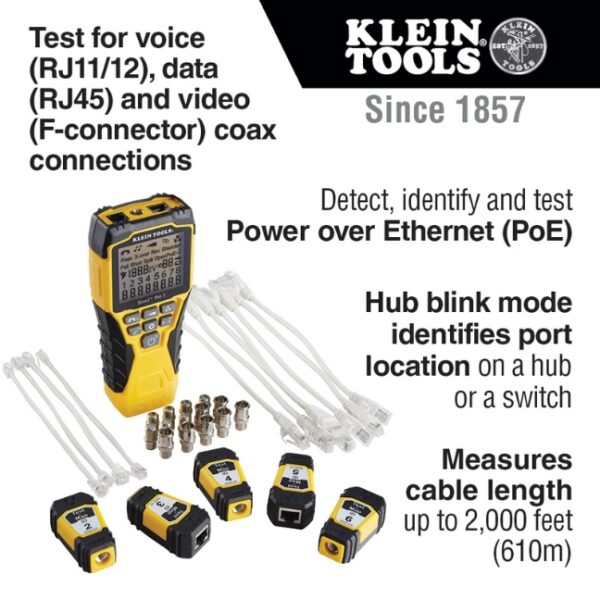

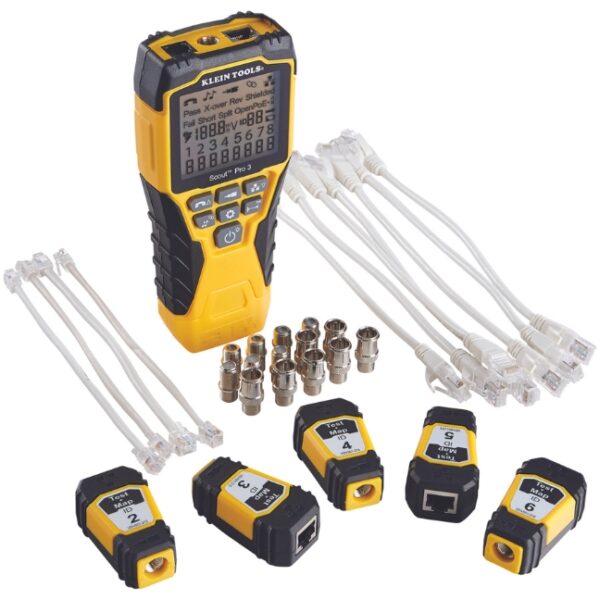

The Klein VDV501-853 SCOUT Pro 3 Tester with TEST + MAP Remote Kit includes:

  • Tester
  • Self-storing Test + Map™ Remote (#1)
  • 5 – Test + Map™ Remotes (#2 – #6)
  • 7 – Coaxial Barrel Adapters (Female-to-female)
  • 7 – Coaxial Barrel Adapters (Male-to-female)
  • 7 – RJ45 Jumpers
  • 2 – RJ11 Jumpers
  • 2 – RJ12 Jumpers
  • 9V Alkaline Battery
  • Carrying Case

Features:

  • Catalog no. VDV501-853
  • Tests the following coax connections:
        • Voice (RJ11/12)
        • Data (RJ45)
        • Video (F-connector)
  • Detect, identify and test Power over Ethernet (PoE)
  • Wiremap testing
  • Testing for:
        • Miswires, Split Pairs, Short Faults, Open Faults, and Shield
  • Measures cable length up to 2000 feet
  • Trace cables, wire pairs and individual conductor wires with a multi-style tone generator:
        • (Requires analog probe Cat. No. VDV500-123; sold separately)

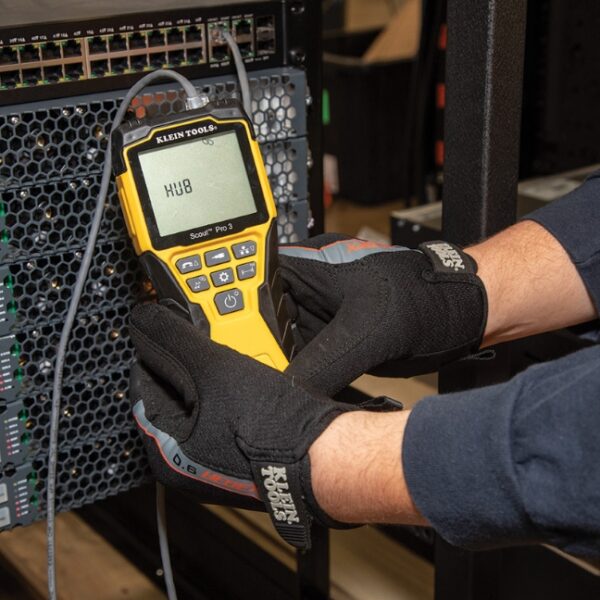

  • Hub blink mode to identify port location on a hub or a switch
  • 1 Dockable smart remote
  • 5 Loose smart remotes
  • 7 Female-to-female and 7 male-to-female coax adapters
  • Backlit LCD screen displays:
        • Cable length, wiremap, cable ID and test results

Specifications:

  • Type:
        • Twisted Pair, DATA, Voice, LAN, and Coaxial
  • Application: Cable Testing
  • Special Features:
        • Measures Cable Length
        • Power over Ethernet
        • Backlit LCD
        • Hub Blink
  • Cable Type:
        • DATA:, Shielded or Unshielded, CAT3, CAT5E,
        • CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
  • Overall Length: 7” (17.8 cm)
  • Overall Height: 3.2” (8 cm)
  • Overall Width: 1.5” (3.8 cm)
  • Material: Plastic and Metal
  • Test-n-Map ID Remotes:
        • (1) Self-Storing
        • (5) Test + Map™ Remotes (#2 – #6)
  • Batteries: 9V Alkaline
  • Battery Life: Active: 50 hours
  • Drop Protection: 2 m
  • Supported Remotes: 18
  • Connection & Adapter Types:
        • RJ11, RJ12, RJ45, Coax F
  • Display: Backlit LCD
  • Multiple Style Tone Generator:
        • Yes (5)
        • Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
  • Faults Detected: Open, Short, Miswire
  • Test & Measure Types: Ethernet, Data, Coaxial
  • Accuracy: Length Measurement: +/- 5% (ft) or 5% m
  • Standard: CE
  • Weight: 1.2 lb (0.5 kg)
