Description

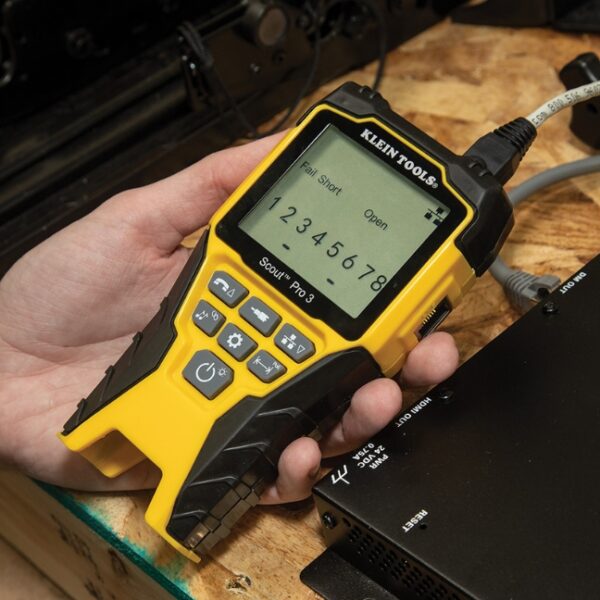

Klein VDV501-852 SCOUT Pro 3 Tester with Locator Remote Kit

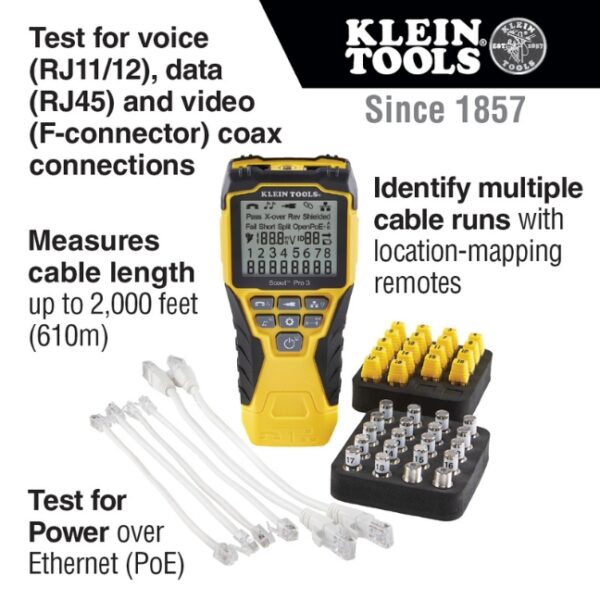

Klein VDV501-852 SCOUT Pro 3 Tester with Locator Remote Kit includes:
- Tester
- Self-storing Test + Map™ Remote (#1)
- 18 – RJ45 LAN Locator Remotes
- 18 – F Coax Locator Remotes
- 2 – Coaxial Barrel Adapters (female-to-female)
- 2 – RJ45 Jumper Cables (6”)
- 2 – RJ11 Jumper Cables
- 2 – RJ12 Jumper Cables,
- 1 x 9V Battery
- Carrying Case
Features:
- Catalog no. VDV501-852
- Cable tester for:
-
-
- Voice (RJ11/12)
- Data (RJ45) and
- Video (F-connector) coax connections
-
-
- Self-storing Test + Map™ Remote (#1) tests, maps and IDs a cable run in a single step
- Power over Ethernet Tester displays PoE wire and Voltage
- Trace cables, wire pairs and individual conductor wires with a tone generator:
-
-
- (Requires analog probe Cat. No. VDV500-123; sold separately)
-
-
- Measures cable length up to 2,000 feet (610 m)
- Identify multiple cable runs with location-mapping remotes Identify
- Detect, identify and test Power over Ethernet (PoE)
- Backlit LCD screen displays:
-
-
- Cable length
- Wiremap
- Cable ID
- Test results
-
-
- Hub blink mode to identify port location on a hub or a switch
- Identify 18 RJ45 and 18 F-connector drop locations with large easy-to-read numbers
- Includes a 9V battery and convenient carrying case
Specifications:
- Type:
-
-
- Twisted Pair, DATA, Voice, LAN, and Coaxial
-
-
- Application: Cable Testing
- Special Features:
-
-
- Measures Cable Length
- Power over Ethernet
- Backlit LCD
- Hub Blink
-
-
- Cable Type:
-
-
- DATA:, Shielded or Unshielded, CAT3, CAT5E,
- CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
-
-
- Overall Length: 7” (17.8 cm)
- Overall Height: 3.2” (8 cm)
- Overall Width: 1.5” (3.8 cm)
- Material: Plastic and Metal
- Test-n-Map ID Remotes: (1) Self-Storing
- Location ID:
-
-
- (18) RJ45 Data
- (18) F-Coax Locator Remotes
-
-
- Batteries: 9V Alkaline
- Battery Life: Active: 50 hours
- Drop Protection: 2 m
- Supported Remotes: 18
- Connection & Adapter Types:
-
-
- RJ11, RJ12, RJ45, Coax F
-
-
- Display: Backlit LCD
- Multiple Style Tone Generator:
-
-
- Yes (5)
- Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
-
-
- Faults Detected: Open, Short, Miswire
- Test & Measure Types: Ethernet, Data, Coaxial
- Accuracy: Length Measurement: +/- 5% (ft) or 5% m
- Standard: CE
- Weight: 1.2 lb (0.5 kg)
