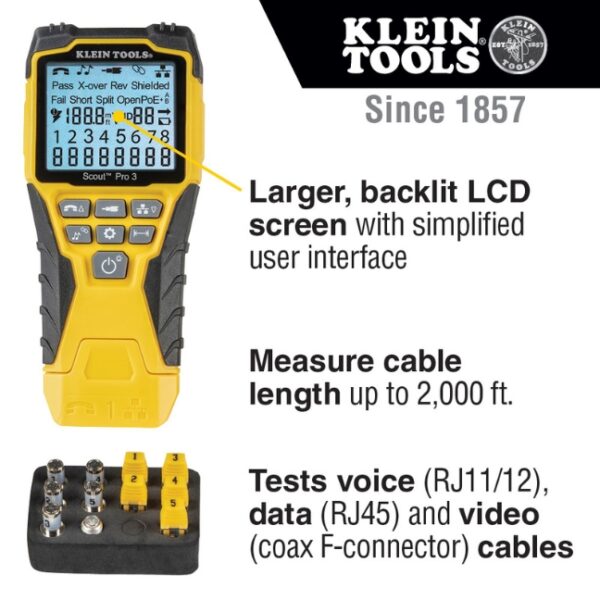

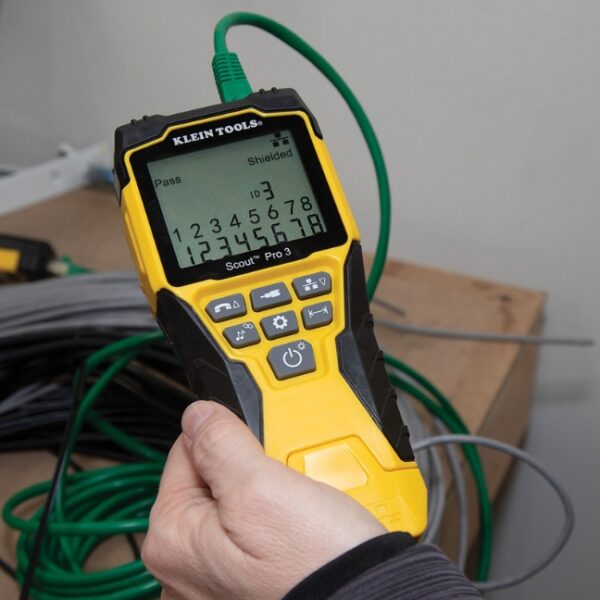

Klein VDV501-851 Cable Tester Kit with SCOUT Pro 3 Tester, Remotes, Adapter, Battery

$133.70

Backorder

UOM: EA SKU: VDV501-851 Categories: , , UPC: 092644692260

Description

Klein VDV501-851 Cable Tester Kit with SCOUT Pro 3 Tester, Remotes, Adapter, Battery

The Klein VDV501-851 Cable Tester Kit with SCOUT Pro 3 Tester, Remotes, Adapter, Battery includes:

  • Scout® Pro 3 Tester
  • Self-Storing Remote
  • (5) LanMap™ RJ45 Locator Remotes
  • (5) CoaxMap™ F-Connector Locator Remotes
  • Coax F-Connector
  • 9V Battery
  • Manual
Features:
  • Catalog no. VDV501-851
  • Cable tester tests:
        • Voice (RJ11/12)
        • Data (RJ45)
        • Video (coax F-connector) terminated cables with clearly defined results
  • Measure cable length up to 2,000 feet (610 m)
  • Test for Open, Short, Miswire or Split-Pair faults
  • Backlit LCD screen displays:
        • Cable length, wiremap, cable ID and test results
  • Trace cables, wire pairs and individual conductor wires:
        • With multiple style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)
  • Hub blink mode to identify port location on a hub or a switch
  • LanMap™ and CoaxMap™ Location Remotes (5 each) map and ID multiple cable runs in a single step
  • Provides:
        • Voltage warning, shield detection, low battery indicator, a self-storing remote,
        • and auto power off feature to conserve battery life (9V included)
  • Auto Power-off feature to conserve battery life (9V included)
Specifications:
  • Type:
        • Twisted Pair, DATA, Voice, LAN, and Coaxial
  • Application: Cable Testing
  • Special Features:
        • Measures Cable Length; Backlit LCD; Hub Blink
  • Cable Type:
        • DATA:, Shielded or Unshielded, CAT3, CAT5E,
        • CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
  • Overall Length: 7” (17.8 cm)
  • Overall Height: 3” (7.6 cm)
  • Overall Width: 1.25” (3.2 cm)
  • Material: Plastic and Metal
  • Test-n-Map ID Remotes: (1) Self-Storing
  • Location ID:
        • (5) RJ45 Data and (5) F-Coax connector Locator Remotes
  • Batteries: 9V Alkaline
  • Battery Life: Active: 50 hours
  • Drop Protection: 2 m
  • Supported Remotes: 18
  • Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
  • Display: Backlit LCD
  • Multiple Style Tone Generator:
        • Yes (5)
        • Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
  • Faults Detected: Open, Short, Miswire
  • Test & Measure Types: Ethernet / Data and Coaxial
  • Accuracy: Length Measurement: +/- 5% (ft) or 5% m
  • Included:
        • Tester, Self-Storing Remote, (5) LanMap RJ45 Locator Remotes,
        • (5) CoaxMap F-connector Locator Remotes, (1) Coax F-adapter, Manual, (1) 9V Battery
  • Standard: CE
  • Weight: 1.2 lb (0.5 kg)
