Klein VDV500-820 Tone and Probe PRO Wire Tracing Kit
The Klein VDV500-820 Tone and Probe PRO Wire Tracing Kit includes:
- VDV500-123 Probe-Pro Tracing Probe

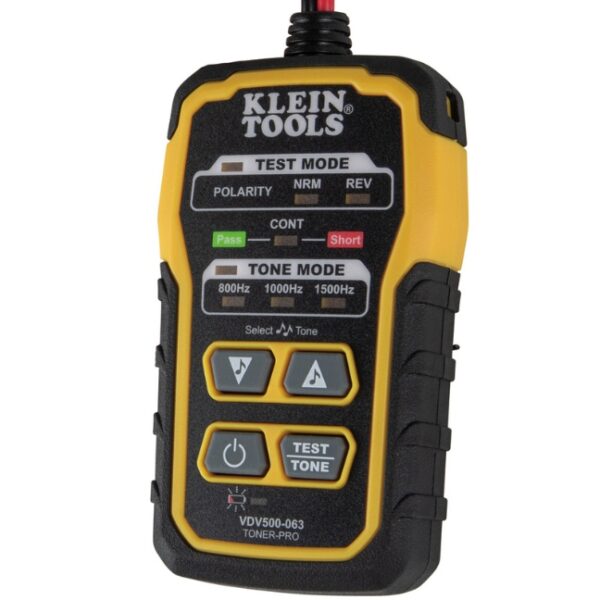

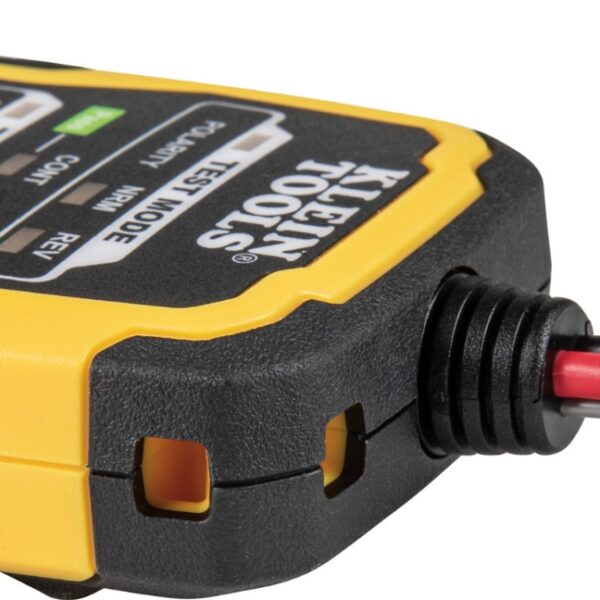

- VDV500-063 Toner-Pro Tone Generator
- 8 x AAA Batteries
- VDV770-500 Pouch
Features:
- Catalog no. VDV500-820
- Includes:
-
-
- Professional grade analog tone generator

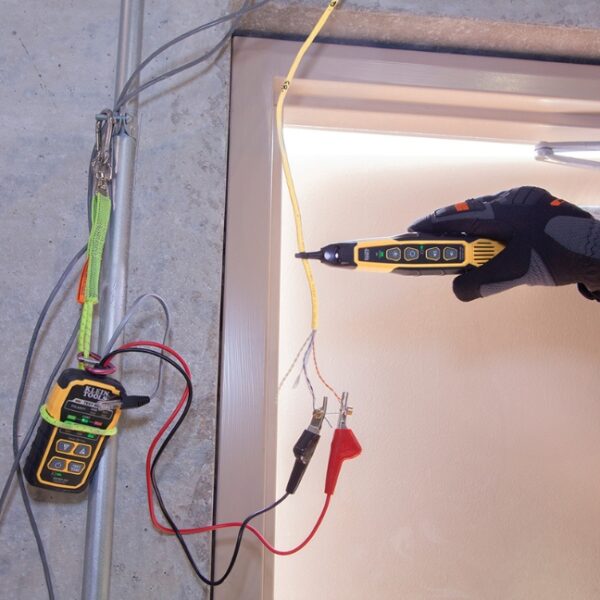

- Tracing probe for open-ended, non-energized wiring
-
-
- Toner-Pro with:
-
-
- 5 Distinct tone cadences
- Transmits 1,000+ feet
-
-
- Rugged Angled Bed of Nails (ABN) clips securely attach to wires

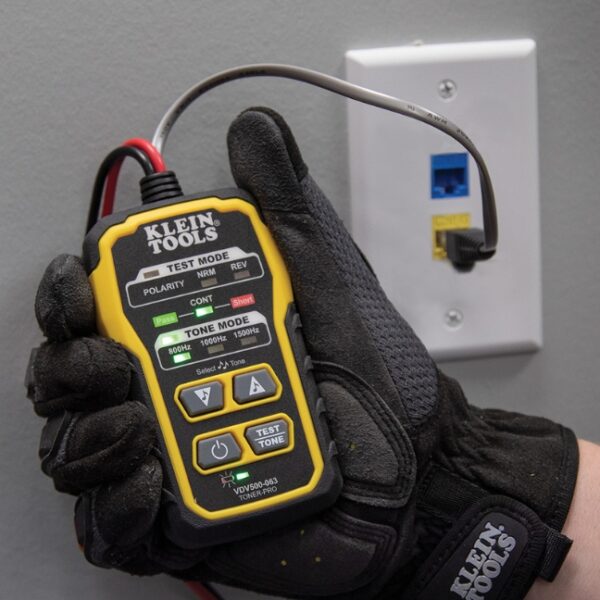

- RJ11 plug easily connects to telephone and RJ45 data jacks to tone wire pair
- Toner-Pro tests for:
-
-
- Continuity and polarity with results indicated by clearly labeled LEDs
-
-
- Probe-Pro features:
-
-
- 3.5 mm Headphone jack for noisy environments (headphones not included)
-
-

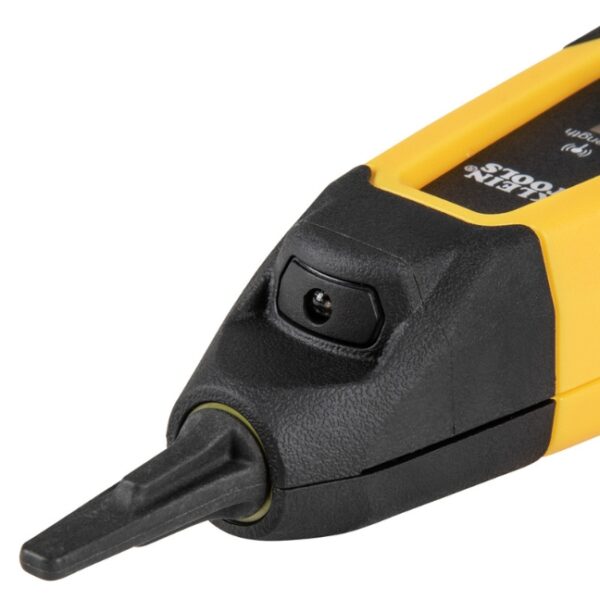

- VDV999-068 Responsive probe with durable non-metallic, replaceable conductive tip – sold separately
- Work light on probe tip for use in dark spaces
- Terminal block on probe to confirm the toned pair
- Each tool includes 4X AAA batteries
- VDV770-500 Custom, padded, divided, zipper pouch for convenient storage included with kit
Specifications:
- Type: Tone Generator Tracing Probe
- Application: Wire Toning & Tracing
- Special Features:
-
-
- Angled Bed of Nails with (ABN) Clips
- 5 Distinct Cadences
- Worklight
-
-
- Overall Length: 7” (17.8 cm)
- Overall Height: 12” (30.5 cm)
- Overall Width: 3” (7.6 cm)
- Material: Plastics, Metal, PCB Boards and LEDs
- Batteries: 8 x AAA
- Included:
-
-
- VDV500-123 Probe-Pro Tracing Probe
- VDV500-063 Toner-Pro Tone Generator
- 8 x AAA Batteries
- VDV770-500 Pouch
-
-
- Weight: 13.1 oz (0.37 kg)
