Description

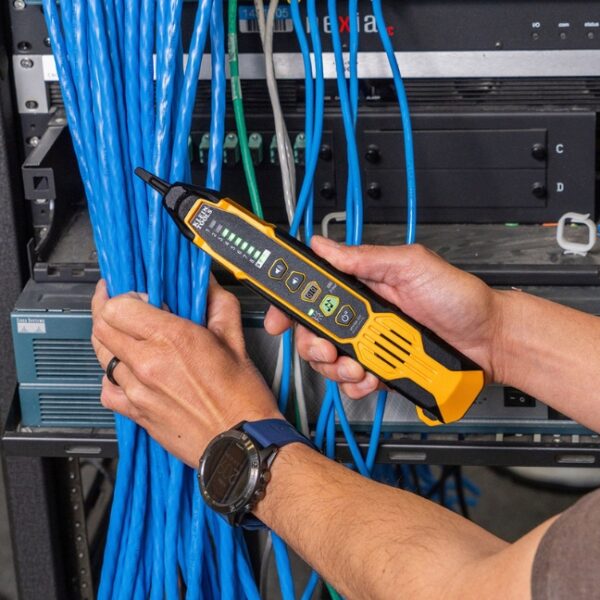

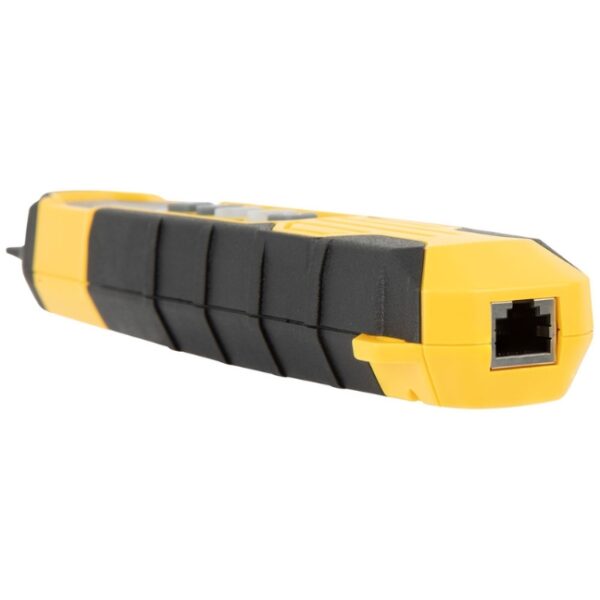

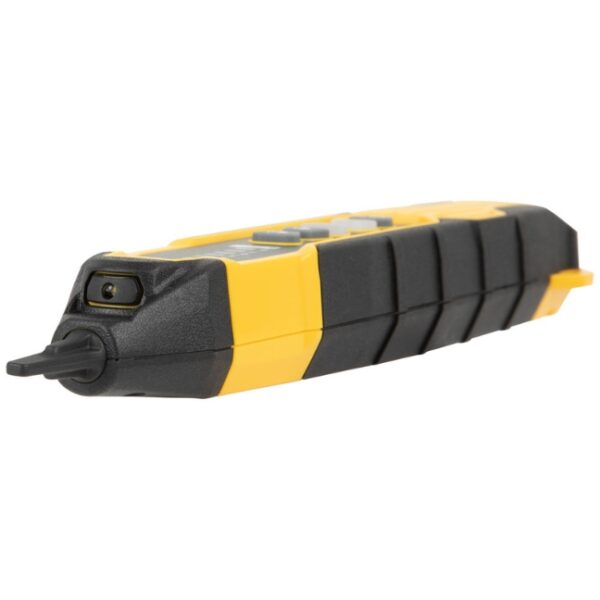

Klein VDV500-223 Digital Tracing Probe
The Klein VDV500-223 Digital Tracing Probe includes:
- Tracing Probe
- 4 x AAA Batteries
Features:
- Catalog no. VDV500-223
- Digital Probe traces non-energized wiring:
-
-
- When used with the VDV500-163 Digital Tone Generator – sold separately
-
-
- Trace and locate cables on an active network:
-
-
- When used with the VDV500-163 Digital Tone Generator – sold separately)
-
-
- Work light for use in dark spaces
- 3.5 mm Headphone jack for use in noisy environments (headphones not included)
- VDV999-070 Tool-less, twist-and-lock replacement tip available
- 60Hz filter for accurate tracing, works with Klein’s Scout® Pro and Lan Scout® Jr. testers
- Wire mapping capabilities to check Pin-to-Pin connections with shield detection:
-
-
- When used with the VDV500-163 Digital Tone Generator – sold separately
-
-
Specifications:
- Type: Digital Wire Tracing
- Application: Wire Tracing
- Special Features: Work Light, Stay On Power Button
- Material: ABS
- Batteries: 4 x AAA
- Battery Life: 20 hours
- Low Battery Indicator: Yes
- Power On LED Indicator: Yes
- Auto-Power Off: Yes
- Adjustable Volume: Yes
- Amplifier Overload Indication: No
- Continuity Testing: No
- Visual Notification: LED
- Replaceable Tip: Yes
- Self-Storing Remote: No
- Included: Tracing Probe; 4 x AAA Batteries
- Overall Dimensions:
-
-
- Length: 1.9” (4.8 cm)
- Height: 9.9” (25.1 cm)
- Width: 1.3” (3.3)
-
-
- Weight: 5.2 oz (147 g)
