Description

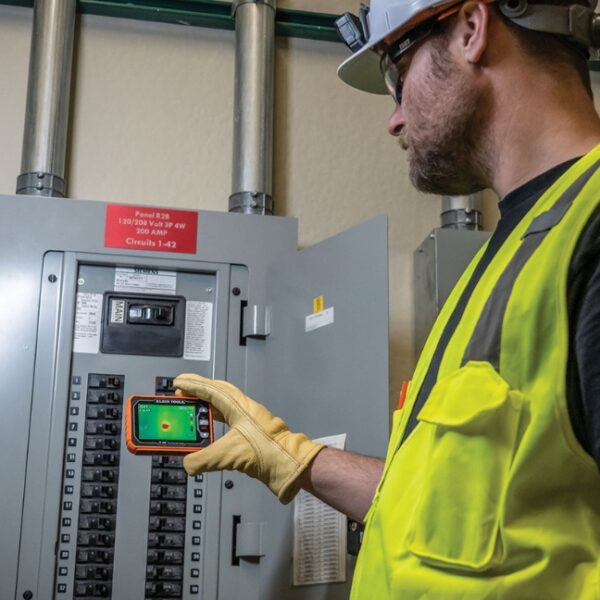

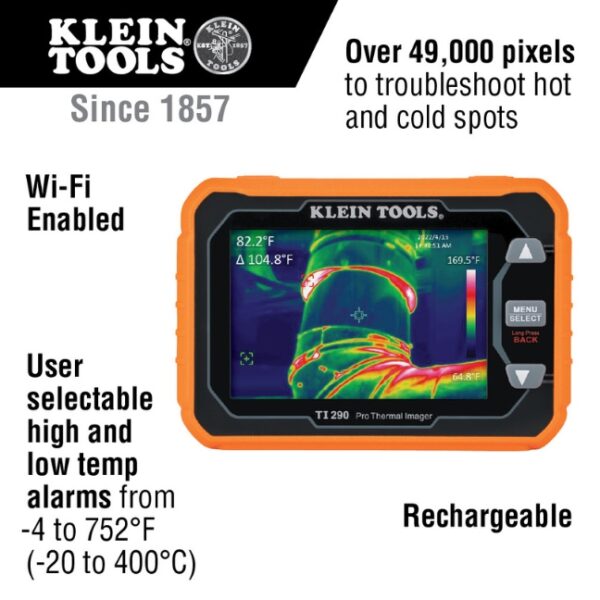

Klein TI290 Rechargeable Pro Thermal Imager with Wi-Fi
The Klein TI290 Rechargeable Pro Thermal Imager with Wi-Fi includes:
- Rechargeable Thermal Imager
- USB Charging Cable
- Instructions
- Molded Soft-Storage Case with Carabiner
Features:
- Catalog no. TI290
- Over 49,000 pixels to troubleshoot hot and cold spots
- Wi-Fi capabilities to easily capture, store and share thermal images
- User selectable high and low temperature alarms:
-
-
- From -4º to 752º Fahrenheit (-20V to 400º Celsius)
-
-
- Adjustable emissivity from 0.01 to 0.99
- Select color palettes to best capture the event:
-
-
- Ironbow, rainbow, or grayscale
-
-
- Rechargeable lithium-ion battery
- App is available for free in Google Play™ store and in the App Store
- Durable 6.6-Foot (2 m) drop test protection
- Includes thermal imager, USB-C charging cable, molded soft-storage case with carabiner, and instructions
Specifications:
- Type: Thermal Imager
- Application: View Hot and Cold Spots for Instant Troubleshooting
- Special Features:
-
-
- Wi-Fi Transfer
- High and Low Temperature Points
- Crosshairs to Pinpoint Specific Temperatures
- Options for Temperature Alarms
- 3 Color Palettes
-
-
- Display: 3.5” (8.9 cm) TFT LCD
- Display Resolution: 480 x 320 Pixels
- Sensor Type: VOx Microbolometer
- Sensor Resolution: 49,152 Pixels
- Thermal Sensitivity: <50 mK
- Spectral Range: 8 to 14μm
- Temperature Range: -4° to 752°F (-20° to 400°C)
- Accuracy: ±2°C (±3.6°F) or 2%, Whichever is Greater
- Field of View: 55.6° +/- 2.8°
- Laser Sighting: No
- Emissivity: 0.01 to 0.99, Adjustable
- Color Palettes:
-
-
- Ironbow, Rainbow, Grayscale
-
-
- Photo Capture: Yes and Wi-Fi Data Transfer
- Maximum Frames per Second: <9 Hz
- Memory: 10,000 Images
- Batteries: Lithium-Ion
- Overall Dimensions:
-
-
- Length: 3.1” (8 cm)
- Width: 1.06” (3 cm)
- Height: 4.48” (11.4 cm)
-
-
- Material: ABS and Electronic Components
- Standards: CE and UKCA
- Weight: 7.5 oz (213 g)
- Battery Life: 5 yr
