Description

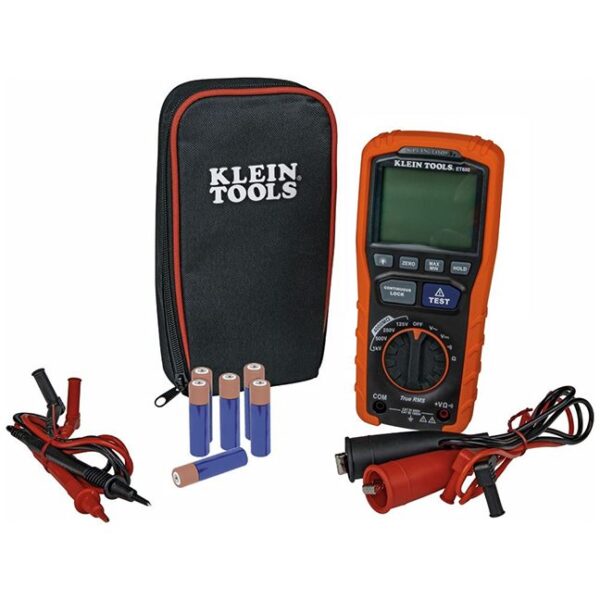

Klein ET600 Insulation Resistance Tester
The Klein ET600 Insulation Resistance Tester includes:
- CAT III/CAT IV Safety Rated Test Leads
- Heavy-duty Alligator Clip Test Leads
- 6 x AA Batteries
- Instruction Manual
- Carrying Case
Features:
- Product no. ET600
- Tests insulation resistance up to 4000MΩ at 125V, 250V, 500V, and 1000V DC
- Megohmmeter with test and lock buttons for simple insulation testing
- Warning alarm and high voltage icon for detection of voltage
- Measures up to 1000V AC/DC, resistance, and continuity
- Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy
- Backlit display with bar graph, Auto-power off, High Voltage, Max/Min, and Hold icons
- Low battery indicator with easily replaceable battery and fuse
- Built-in stand and optional magnetic hanger for hands free operation
- Test verification of conformity to EN61557-1,-2,-4
- CAT IV 600V and CAT III 1000V safety rating
- Includes Right Angle Test Leads and Heavy-Duty Alligator Clip Test Leads
Functions:
- Insulation Resistance
- Voltage AC/DC
- Resistance
- Continuity
Specifications:
- Type: Insulation Resistance Tester
- Special Features: Lock Button for Insulation Resistance Testing
- Material: ABS, Polycarbonate, Electrical Components
- Voltage: 125V, 250V, 500V, and 1000V DC; 1000V AC/DC
- Ohms (Resistance): 4000MΩ
- Standard: CAT IV 600V/CAT III 1000V, EN61557-1, EN61557-2, EN61557-4
- Display: 4000 Count LCD
- Batteries: 6 x AA
- Color: Orange/Black
- Length: 7.93” (20.2 cm)
- Height: 2.32” (5.9 cm)
- Width: 3.59” (9.1 cm)
- Weight: 1.4 lb (0.6 kg)
Applications:
- Installation
- Troubleshooting
- Preventive Maintenance of Electrical Wiring and Electrical Equipment
- Measures 1000V AC/DC, Resistance, and Continuity
