Description
Klein ET450 Advanced Circuit Tracer Kit

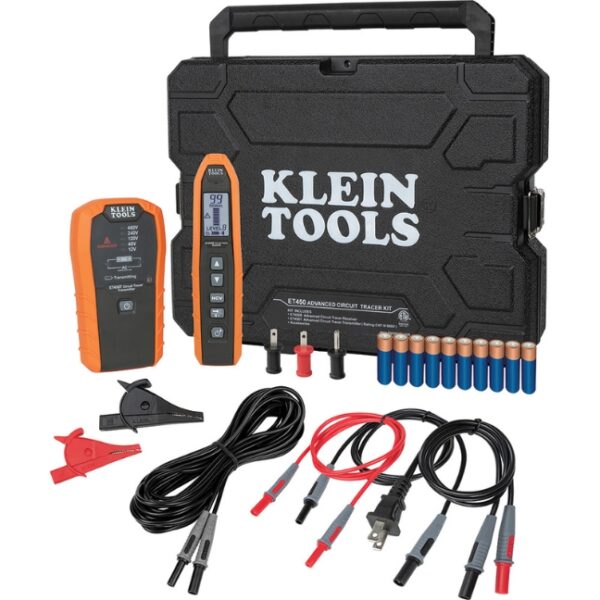

The Klein ET450 Advanced Circuit Tracer Kit includes:
- Transmitter
- Receiver
- Blade and ground prongs
- Alligator clips
- 3-Foot and 20-Foot lead adapters
- AC plug leads
- Instructions
- All required batteries

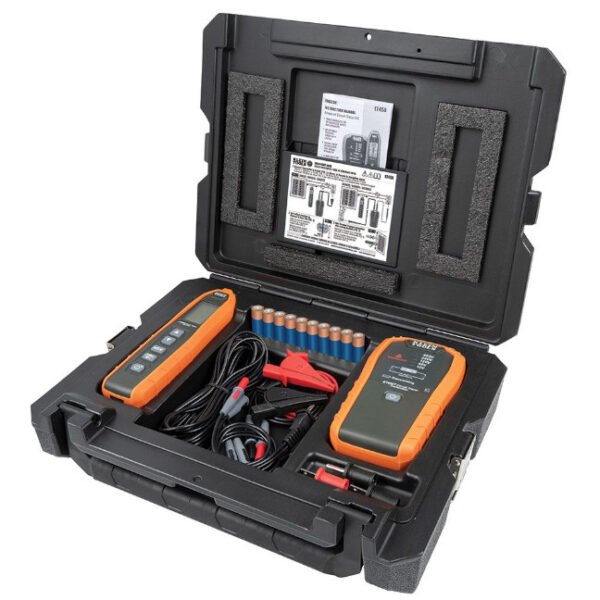

- Hard carrying case
Features:
- Product no. ET450

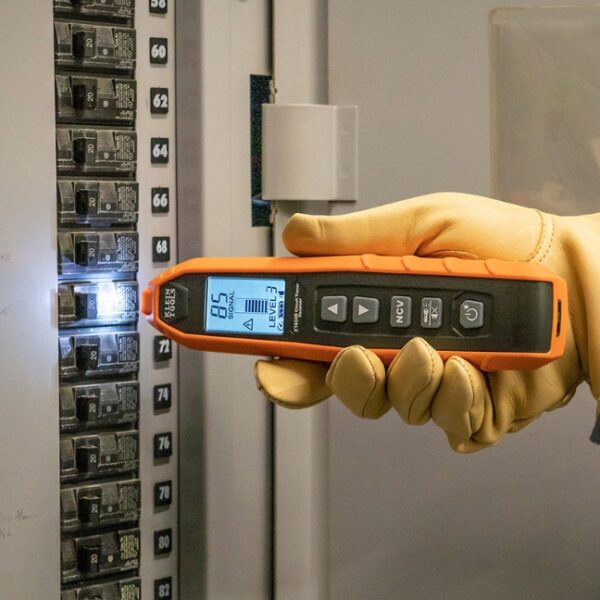

- Provides reliable tracing of energized or non-energized breakers, fuses, and wires
- Easily adjust receiver sensitivity level to detect the transmitted signal through:
-
-
- Drywall

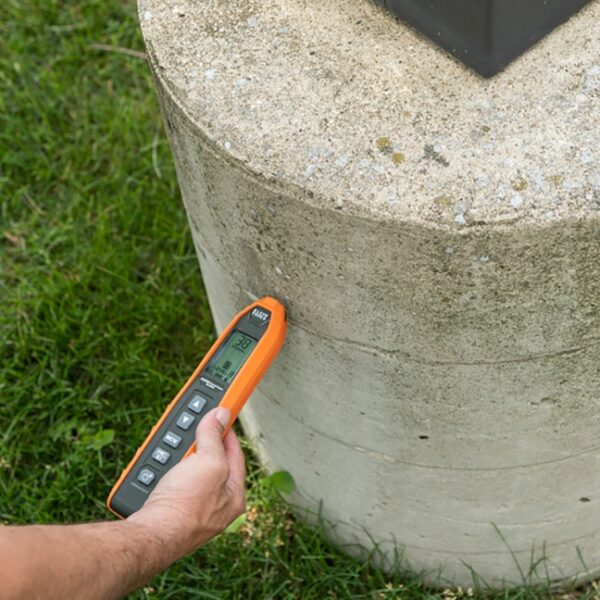

- Cement block
- Underground
-
-
- Versatile applications include:
-
-
- Tracing wires, conduit or pipes, or a single wire in a bundle
-
-
- Audible beep and visual indicators on receiver denotes signal strength
- Receiver features:
-
-
- Flashlight for illumination in low-light areas
- NCV function to test if wires are energized
-
-
- Transmitter has AC/DC external voltage indicators of 12V, 48V, 120V, 240V, and 480V
Specifications:
- Type: Circuit Tracer
- Application: Trace Energized and Non-Energized Breakers, Fuses, and Wires
- Special Features:
-
-
- Flashlight and NCV Function on Receiver
- Accessories
- Hard Case
-
-
- Material: ABS and Electronic Components
- Batteries:
-
-
- Transmitter: 6 × 1.5V AA Alkaline
- Receiver: 4 × 1.5V AA Alkaline
-
-
- Battery Life: Up to 24 hours
- Drop Protection: 6ft (2 m)
- Receiver display: LCD with Backlight
- Control Type: Transmitter and Receiver
- Voltage: External Indicators for 12V, 48V, 120V, 240V, and 480V
- Frequency:
-
-
- Transmitter: AC 45Hz to 65Hz Receiver: 33kHz
-
-
- Ingress Protection: IP42
- Pollution Degree: 2
- Tests Continuity: No
- Integral Lead Storage: No
- Interchangeable Leads: Yes
- Lead Lengths: 3ft (1 m) and 20ft (6.1 m)
- Standard: CAT III 600V
- Length:
-
-
- Receiver: 7.05” (17.9 cm); Transmitter: 8.72” (22.2 cm)
-
-
- Height:
-
-
- Receiver: 1.84” (4.5 cm); Transmitter: 1.51” (3.9 cm)
-
-
- Width:
-
-
- Receiver: 3.90” (9.9 cm); Transmitter: 2.07” (5.3 cm)
-
-
- Weight:
-
-
- Transmitter: 16.5 oz (470 g); Receiver: 11 oz (312 g)
-
-
