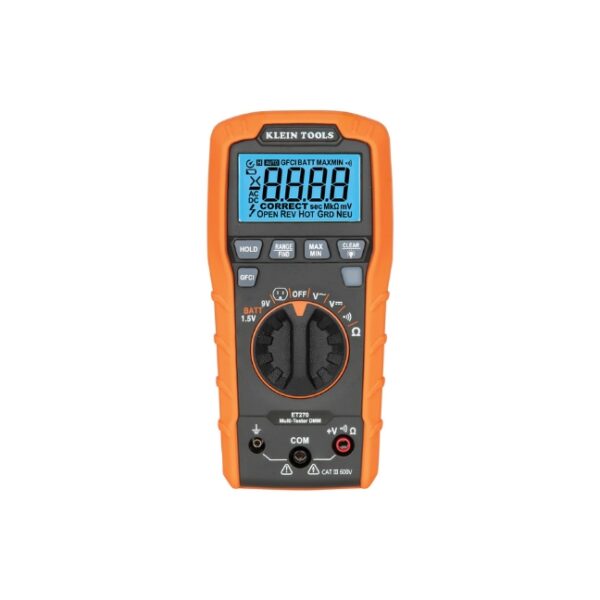

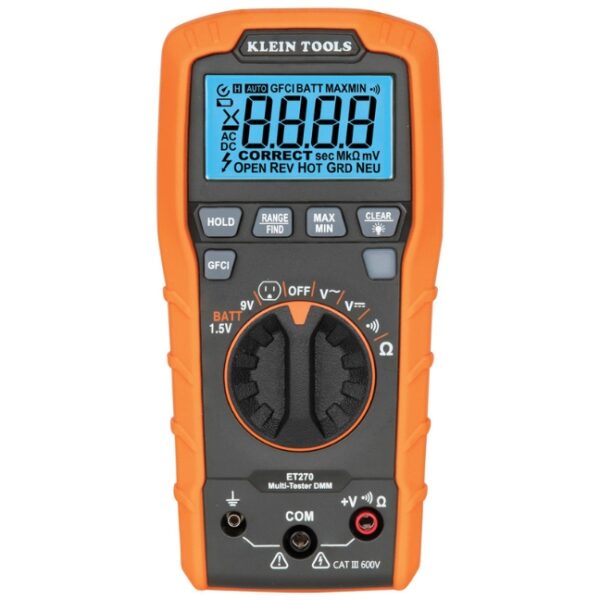

Klein ET270 Digital Multi-Tester DMM with Receptacle Tester

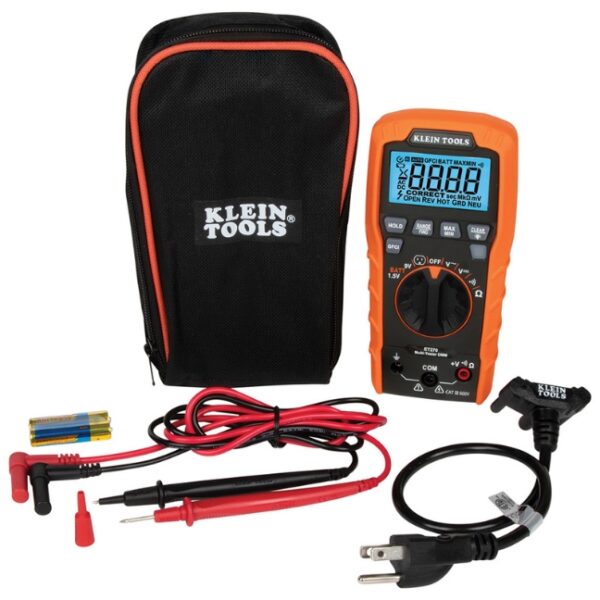

The Klein ET270 Digital Multi-Tester DMM with Receptacle Tester includes:
- Digital Multimeter
- Right-Angle Test Leads
- Receptacle Test Cord
- Batteries
- User Manual
- Storage Pouch

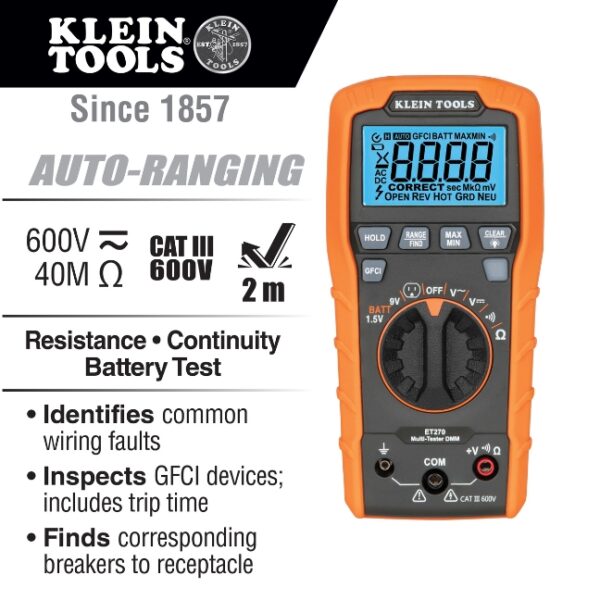

Features:
- Catalog no. ET270
- Auto-ranging Digital Multi-Tester
- Measures AC/DC voltage, resistance, audible continuity
- Performs 9V and 1.5V battery tests

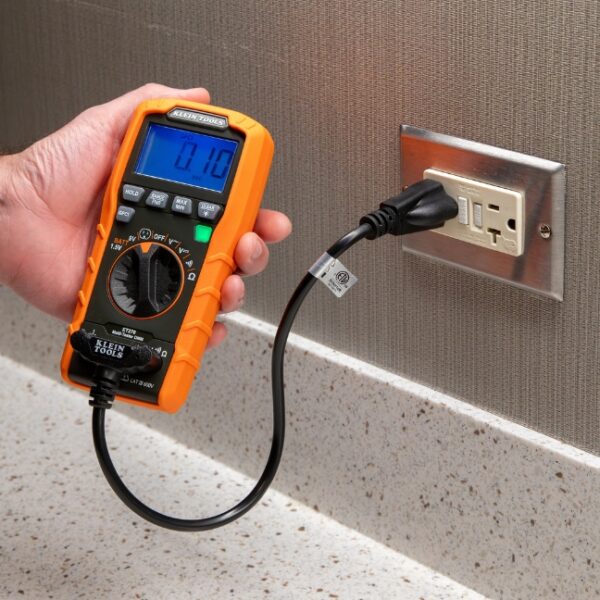

- Detects and identifies common wiring faults in standard and GFCI electrical outlets
- Inspects GFCI devices including time to trip the device
- FIND mode indicates which breaker corresponds to a given receptacle
- Features include:
-
-
- Backlit display
- Data hold, default to auto-range with option for manual-range
- Max/min
-
-
- Receptacle test is designed for use with North American 120V AC 3-wire electrical outlets
- Built to withstand a 6.6-Foot (2 m) drop:
-
-
- Designed to be durable and reliable even in demanding working environments
-
-
- Digital Multimeter comes with:
-
-
- Test leads, receptacle test cord, instructions, batteries, all in a convenient storage pouch
-
-
Specifications:
- Type: Digital Multimeter and GFCI Receptacle Tester
- Application:
-
-
- Testing and Measuring Voltage
- Detects and Identifies Common Wiring Problems in GFCI Receptacles
-
-
- Special Features:
-
-
- Data Hold
- Auto-Range with Option for Manual-Range
- Min/Max Values
- Backlight
-
-
- Material: ABS and Electrical Components
- Batteries: 2 x AAA
- Drop Protection: 6.6ft (2 m)
- Display: 4000 Count LCD
- Color: Orange/ Black
- Functions:
-
-
- AC/DC Voltage; Resistance; Continuity; Battery Test;
- Finds Breaker to Corresponding Receptacle;
- Shows Amount of Time it Takes to Trip GFCI;
- Detects and Identifies Common Wiring Problems in GFCI Receptacles
-
-
- Voltage: 600V AC/DC
- Frequency: 50 to 60Hz
- Ohms (Resistance): 40MΩ
- Standards: CAT III 600V, Class 2, Double insulation
- Accuracy:
-
-
- 65°F to 83°F (18°C to 28°C): +/- (% of Reading + Number of Least Significant Digits)
-
-
- Included:
-
-
- Digital Multimeter; Right-Angle Test Leads;
- Receptacle Test Cord; Batteries; User Manual; Storage Pouch
-
-
- Overall Length: 6.41” (16.3 cm)
- Overall Height: 1.84” (4.5 cm)
- Overall Width: 3.13” (7.9 cm)
- Weight: 1.32 lbs (0.6 kg)
