Description

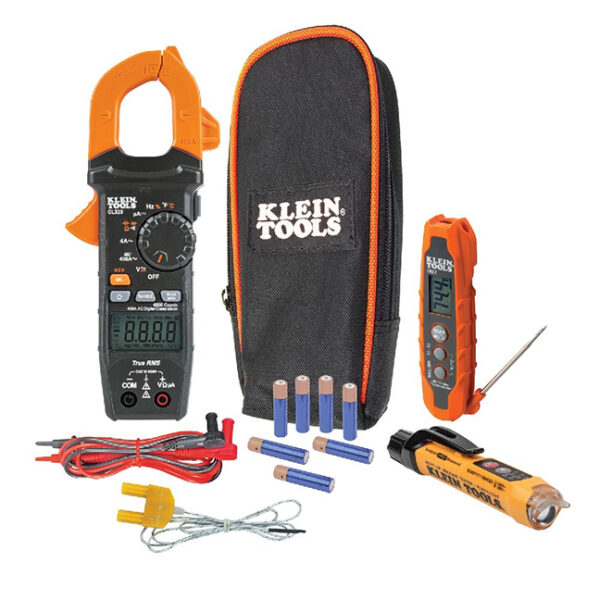

Klein CL320KIT HVAC Electrical Test Kit
The Klein CL320KIT HVAC Electrical Test Kit includes:
- CL320 Digital Clamp Meter with Test Leads and Thermocouple
- IR07 Dual IR and Probe Thermometer
- NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight
- Instructions
- All Required Batteries
- Carrying Pouch
Features:
- Product no. CL320KIT
- HVAC Kit with testers for the HVAC Professional:
-
-
- CL320 HVAC Digital Clamp Meter with AC Auto-Ranging
- IR07 Dual IR/Probe Thermometer
- NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight
-
-
- HVAC Clamp Meter CL320 with TRMS measurement technology measures:
-
-
- AC current
- NCVT
- AC/DC voltage
- Resistance
- Frequency
- DC microamps
- Capacitance
- Duty cycle
- Diode test
- Continuity
- Temperature
-
-
- IR07 Dual IR Probe and Thermometer measures:
-
-
- Temperature from -40 to 572ºF (-40 to 300ºC)
- Accurately measure surface temperature with Infrared Thermometer (DS ratio 8:1)
- Measure air vents and duct temperature using temperature probe with hands-free hanging hook
- Calculate differential temperature (T1-T2) for both IR and probe temperatures
- IR07 is not a medical device and is NOT intended for use on people or animals
-
-
- Dual-range NCVT3P detects:
-
-
- From 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
- Voltage with simultaneous visual and audible voltage indicators
-
-
- Bright flashlight:
-
-
- Illuminates work area
- May be used independent of voltage detection function
- CAT IV 1000V rating provides expanded operation and protection
-
-
Special Features:
- CL320: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology
- NCVT3P: NCVT with flashlight
- IR07: Both IR and Probe Temperature
Functions:
- TRMS
- AC Current
- NCVT
- AC/DC Voltage
- Resistance
- DC microamp
- Frequency
- Capacitance
- Duty Cycle
- Diode Test
- Continuity
- Temperature
Specifications:
- Type: HVAC Testers
- Application: HVAC Electrical and Temperature Testing
- Material: ABS / Electronics
- Batteries: 7 x AAA
- Auto-Power Off: Yes
- Jaw Size: 1.6” (4.1 cm)
- Drop Protection: 6.6ft (2 m)
- Display: 4000 Count Backlit LCD
- Voltage:
-
-
- CL320: 600V AC/DC
- NCVT3P: 1000V AC
-
-
- Frequency: 10 Hz to 1 MH
- Current: 400A AC
- Capacitance: 4000 µF
- Ohms (Resistance): 40 MΩ
- AC Voltage: 600 V
- DC-Voltage: 600 V
- DC Polarity Indicator: Yes
- DC Micro-Amp: 200 µA
- Temperature Range: -40° to 1832°F (-40° to 1000°C)
- Standards:
-
-
- CL320: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
- NCVT3P: CAT IV 1000
-
-
- Length: 8.45” (21.5 cm)
- Height: 1.5” (3.8 cm)
- Width: 3.5” (8.9 cm)
- Weight: 1.575 lbs (0.7 kg)
