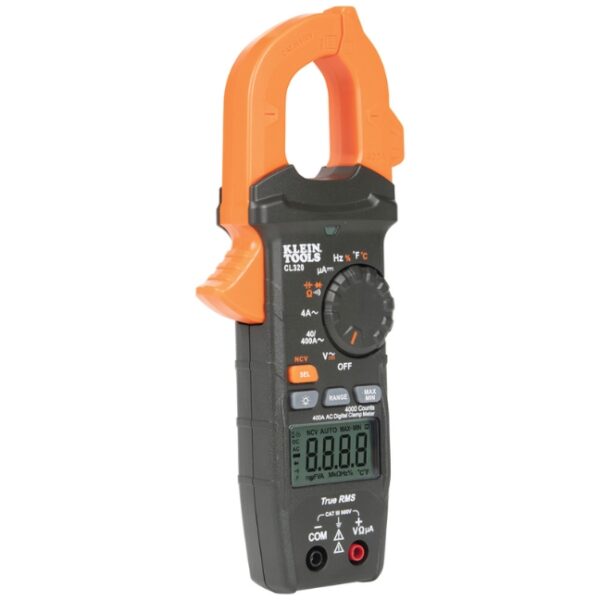

Name: Klein CL320 AC Auto-Ranging HVAC Digital Clamp Meter, 400 Amp
SKU: CL320
Price: 115.40 CAD
Availability: BackOrder

Description

Klein CL320 AC Auto-Ranging HVAC Digital Clamp Meter, 400 Amp

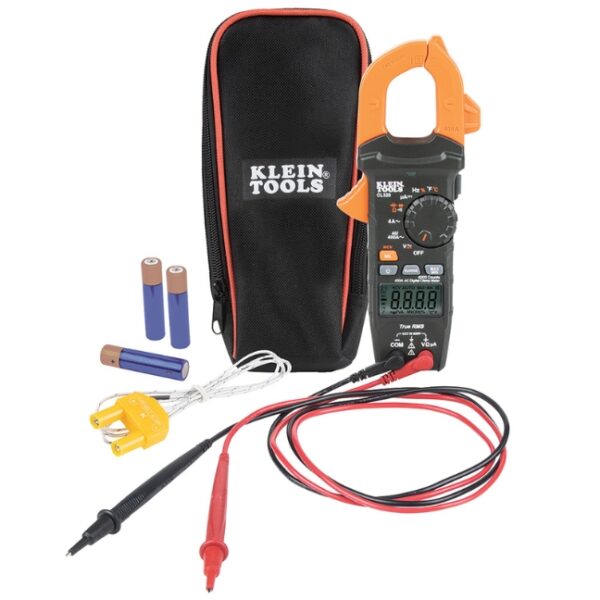

The Klein CL320 AC Auto-Ranging HVAC Digital Clamp Meter, 400 Amp comes with:

Product no. CL320
Clamp Meter measures:
- - - AC current and NCVT via clamp
    - AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads
    - Temperature with thermocouple
Non-contact voltage tester integrated into the clamp jaw
Backlit LCD for ease of viewing in low light
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
Test lead holder on side of the clamp and optional magnetic hanger for the meter (Cat. Nos. 69445 or 69417) for hands-free operation
Measures temperature with a K-Type thermocouple probe
Auto-Range, Data Hold, and Max/Min value
Auto-power off after 10 minutes to conserve battery life
Low battery indicator
Easily accessible battery compartment
Built to withstand a 6.6-Foot (2 m) drop
CAT III 600V, Class 2, Double insulation safety rating
Meets requirements for use in basic and controlled electromagnetic environments:
- - - Residential, office and light-industrial locations

Type: HVAC TRMS Clamp
Measures:
- - - AC current and NCVT via clamp
    - AC/DC voltage, resistance, frequency, DC microamp, capacitance, duty cycle, diode test, and continuity via test-leads
    - Temperature with thermocouple
Special Features:
- - - Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy
    - NCVT
    - HVAC Applications
Functions:
- - - TRMS
    - AC Current
    - NCVT
    - AC/DC Voltage
    - Resistance
    - DC microamp
    - Frequency
    - Capacitance
    - Duty Cycle
    - Diode Test
    - Continuity
    - Temperature
Material: ABS/Electronics
Batteries: 3 x AAA
Auto-Power Off: Yes
Jaw Size: 1.6” (4.1 cm)
Drop Protection: 6.6ft (2 m)
Display: 4000 Count Backlit LCD
Voltage: 600V AC/DC
Frequency: 10 Hz -1 MHz
Current: 400 A AC
Capacitance: 4000 µF
Ohms (Resistance): 40MO
AC Voltage: 600V
DC Voltage: 600V
DC Polarity Indicator: Yes
DC Micro-Amp: 200 μA
Temperature Range: -40° – 1832°F (-40° – 1000°C)
Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Length: 8.45” (21.5 cm)
Height: 1.5” (3.8 cm)
Width: 3.5” (8.9 cm)
Weight: 11 oz (314 g)

Weight	0.6 lbs
Brand Name	Klein Tools
Instruments	Electrical Testers and Meters
