Description

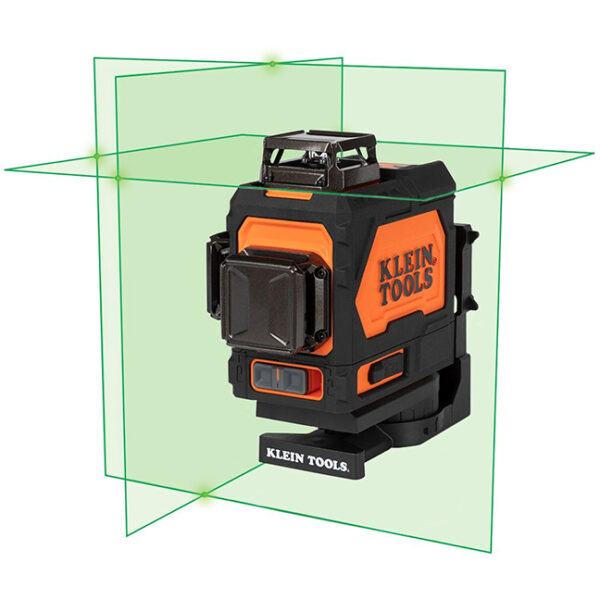

Klein 93PLL Rechargeable Self-Leveling Green Planar Laser Level
The Klein 93PLL Rechargeable Self-Leveling Green Planar Laser Level comes with:
- Li-Ion battery pack
- USB-A to USB-C charging cable
- Magnetic mounting bracket
- Instruction Manual
- Protective Hard Carrying Case
Features:
- Catalog no. 93PLL
- Easy-to-read with high visibility green horizontal and vertical laser lines
- Projects independently or together in X-, Y- and Z-planes for various layout and alignment options
- View the upward and downward plumb marks at the intersection of the Y-plane and Z-plane
- More than 9 hour run time with integrated rechargeable Li-Ion battery
- Classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power ≤1mW @ 510-530nm)
- Integrated magnetic mounting bracket with 1/4-20 tripod mounting threads
- IP54 water and dust resistance
Specifications:
- Type: Laser
- Application: Self-Leveling Laser Alignment Instrument
- Special Features:
-
-
- Rechargeable Battery
- Magnetic Mounting Bracket with 1/4″-20 Tripod Mounting Threads
- 3 Orthogonal 360° Planar Lines
-
-
- Material: ABS Housing and Electronic Components
- Batteries: Lithium-Ion
- Laser Wavelength: 510 to 530 nm
- Laser Safety: ≤1mW Each Beam / Class 2 Laser Product
- Number of Beams: 3
- Laser Color: Green
- Plumb Laser: No
- Indoor Range: 91ft (28 m)
- Outdoor Range: 91ft (28 m)
- Maximum Distance: 91ft (28 m)
- Accuracy: +/- 4.5 mm per 10 m
- Standards:
-
-
- EN61326-1:2013, EN60825-1:2014, NOM-001-SCFI-2018 and 21 CFR 1040.1 and 1040.11
- Except for Deviations Pursuant to Laser Notice No. 50, Dated June 24, 2007
-
-
- Pulse Mode: No
- Receiver: No
- Magnet Type: Rare Earth Magnets
- Drop Protection: 3.3ft (1 m)
- Ingress Protection:
-
-
- IP54: Water and Dust Resistant
-
-
- Transit Locking Mechanism: Yes
- Low Battery Indicator: Yes
- Length: 5.5” (2.2 cm)
- Height: 3.5” (1.4 cm)
- Width: 4.8” (1.9 cm)
- Weight: 1.4 lb (0.6 kg)
- Battery Life: 9 hour
