Description
Klein 935DAA Digital Angle Gauge with Angle Alert
The Klein 935DAA Digital Angle Gauge with Angle Alert includes:
- Digital Angle Gauge
- Instruction Manual
- Batteries
- Soft Carrying Case
Features:
- Catalog no. 935DAA
- Measure or set angles
- Check relative angles with zero calibration feature
- Use as a digital level

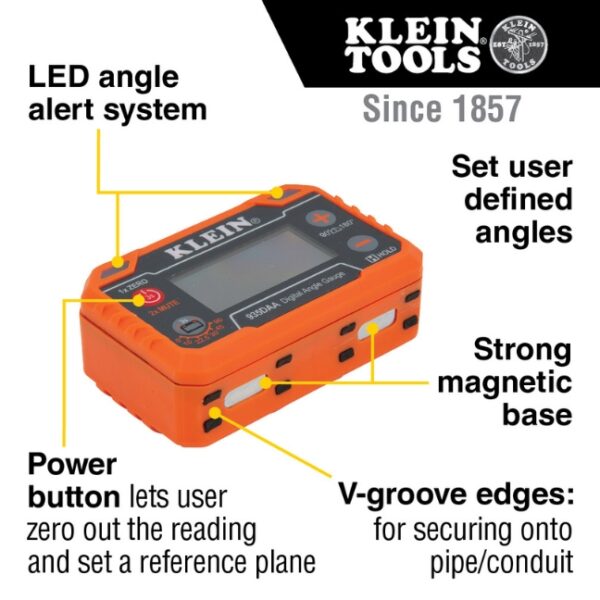

- LEDs light up red, orange, or green based on how close the device’s orientation is to the user defined angle
- Bright reverse contrast display is easy to see in all lighting conditions

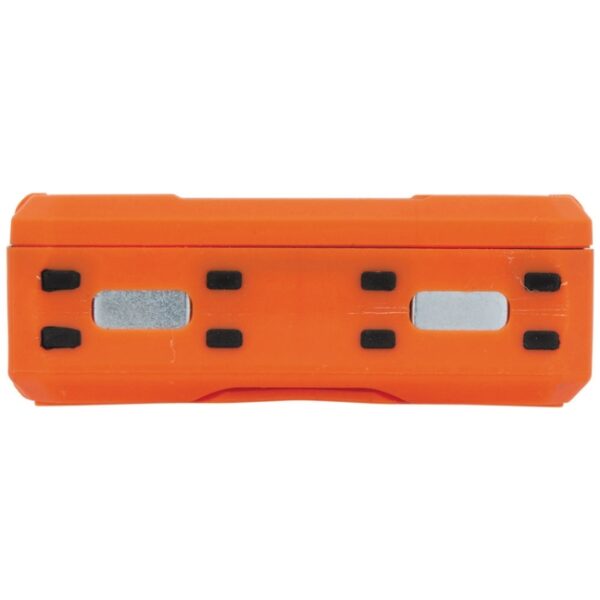

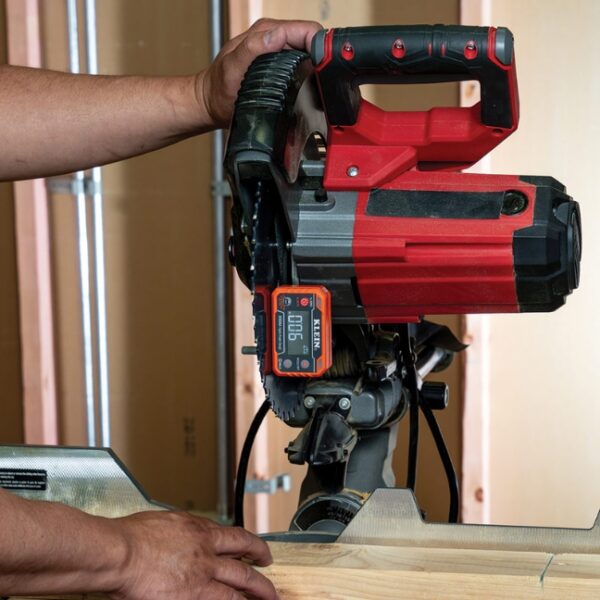

- Strong magnetic base attaches to conduit, pipes, saw blades, vents, ducts, and other ferromagnetic surfaces
- V-Grooves ensure a secure fit on the contours of conduit or pipe
- Display auto-rotates when upside-down for easy viewing
- Water and dust resistant with rating of IP54
Specifications:
- Type: Digital Level
- Application:
-
-
- Measure or Set Angles
- Check Relative Angles, or
- Use as a Digital Level
-
-
- Special Features:
-
-
- 3 Color LED Alerts
- V-grooves On Top and Bottom Faces
- Dual Measurement Ranges at 0° to 90° and 0° to 180°
- Reverse Contrast
-
-
- Material: PC/ABS Plastic Housing, TPR, PET and Electronic Components
- Magnet Type: Permanent Rare-Earth
- Accuracy:
-
-
- 0.1⁰ from 0⁰ to 1⁰ , 89⁰ to 91⁰, 179⁰ to 180⁰
- 0.2⁰ for all Other Angles (When Measuring Relative to the Magnetic Base)
-
-
- Drop Protection: 6.6ft (2 m)
- Ingress Protection: IP54: Water and Dust Resistant
- Low Battery Alarm: No
- Batteries: 2 x 1.5 V AAA
- Included: Digital Angle Gauge; Soft Carrying Case; Instruction Manual; Batteries
- Overall Length: 1.02” (2.6 cm)
- Overall Height: 1.77” ( 4.5 cm)
- Overall Width: 2.82” (7.2 cm)
- Weight: 3.2 oz (91 g)
