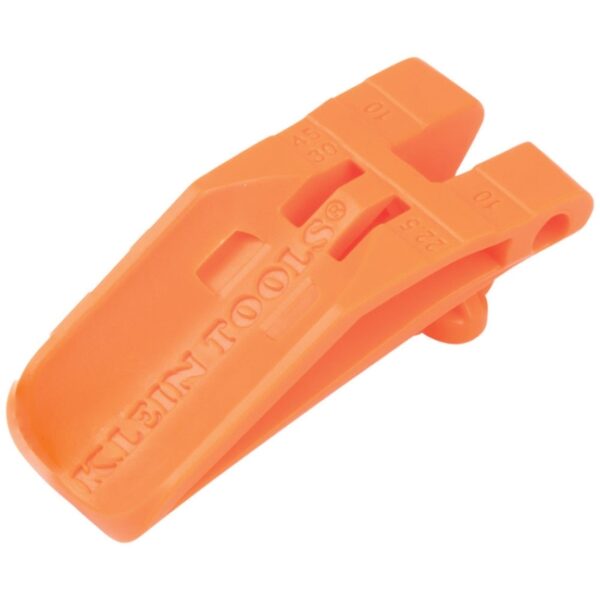

Klein 51611 1/2″ Angle Setter for Klein Conduit Benders

Description

Klein 51611 1/2″ Angle Setter for Klein Conduit Benders

Klein 51611 1/2″ Angle Setter for Klein Conduit Benders:

Features:

• Catalog no. 51611
• Klein’s unique Angle Setter™ technology:
  • • • For quick, accurate repeated bends
      • Saves time on the job (Patent Pending)
• Create a hard stop for fast, accurate bending
• Movable for four different bend angles:
  • • • 10º, 22.5º, 30º, 45º (adjusted for conduit spring back)

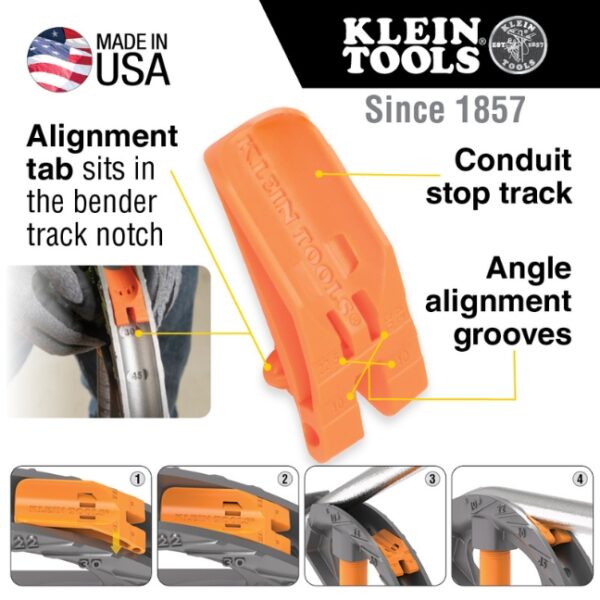

• Operation:
  • • • Align the angle lines on the Angle Setter with the bender
      • Ensure the alignment tabs are fully seated in the bender track notches
      • Press the Angle Setter firmly into place

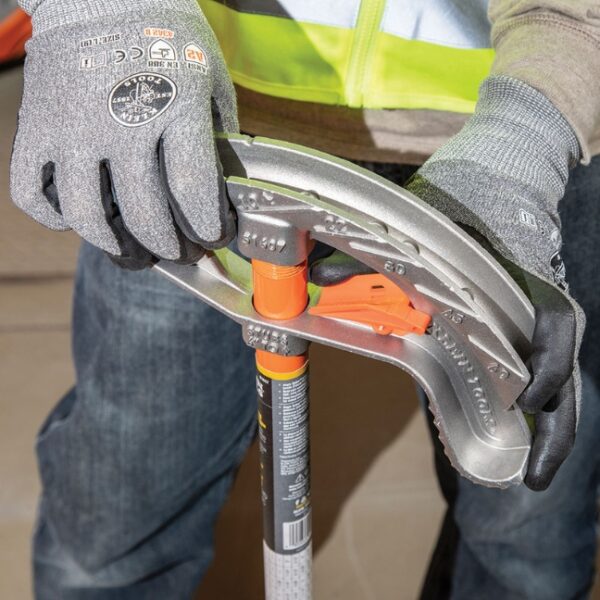

• Method of use:
  • • • Conduit insets into bender head
      • Bend as usual until the conduit makes contact with the setter
• Compatible with:
  • • • 51603 Klein 1/2″ Iron Conduit Bender
      • 51606 Klein 1/2″ Aluminum Conduit Bender
      • 51608 Klein 1/2″ Iron Conduit Bender Head
• Also available:
  • • • 51612 Klein 3/4″ Angle Setter
      • 51613 Klein 1″ Angle Setter
• Made in USA

Specifications:

• Type: Angle Setter™
• Application: Angle Setter™ for Klein Conduit Benders
• Special Features: Patent Pending Technology
• Overall Length: 1.8” (4.6 cm)
• Overall Height: 0.9” (2.2 cm)
• Overall Width: 0.8” (2.0 cm)
• Material: Delrin® Plastic
• Thinwall/EMT: 1/2” (1.3 cm)
• Conduit Size: 1/2″
• Marking: 10°, 22.5º, 30°, 45°
• For Use With:
  • • • 51603 Conduit Bender
      • 51606 Conduit Bender
      • 51608 Conduit Bender Head
• Weight: 1.2 oz (34 g)
