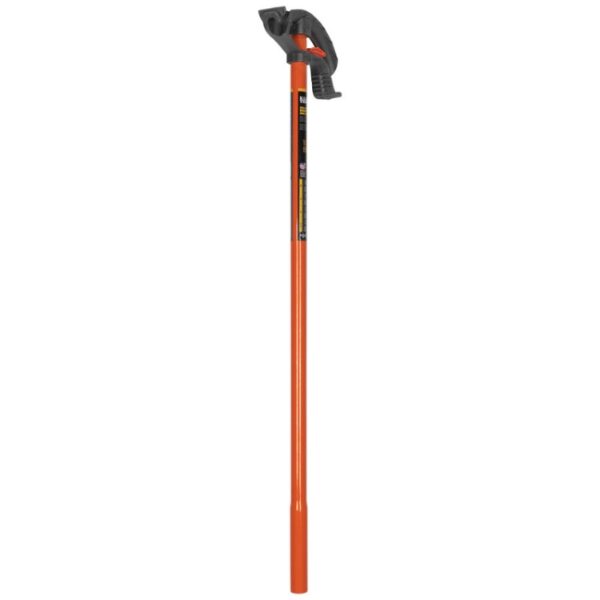

Klein 51604 3/4″ Iron Conduit Bender with ANGLE SETTER

Description

Klein 51604 3/4″ Iron Conduit Bender with ANGLE SETTER

The Klein 51604 3/4″ Iron Conduit Bender with ANGLE SETTER includes:

• 51609 Bender Head
• 51427 Handle
• 51612 Angle Setter

Features:

• Catalog no. 51604
• Designed to bend:
  • • • 3/4″ EMT
      • 1/2″ Rigid Conduit
      • 1/2″ IMC Conduit
• 3/4″ Assembled Iron Bender includes:
  • • • Klein’s unique Angle Setter™ technology for time-saving, repeated accurate bends
      • Patent pending Angle Setter™ for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)

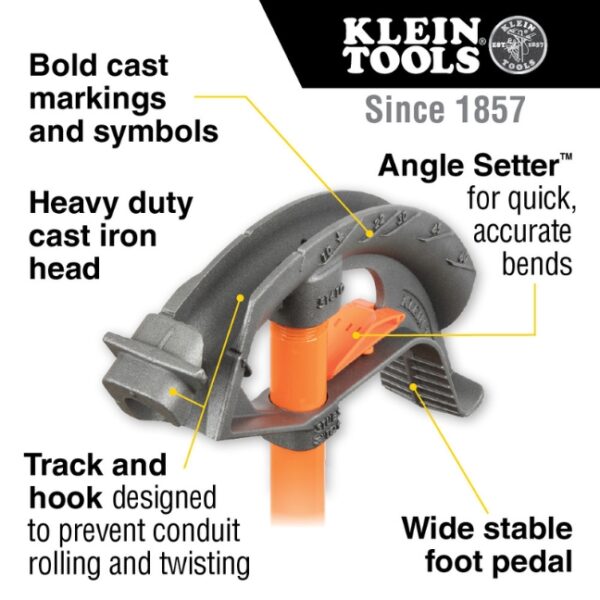

• Heavy duty cast ductile iron has the durability needed on the job site
• Bold cast markings and symbols:
  • • • For fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends
• Wide foot pedal provides excellent stability, leverage, and comfort
• Interior hook surface prevents conduit from rolling or twisting during bends
• Includes markings for:
  • • • 10º, 22.5º, 30º, 45º, 60º and corresponding offset multipliers
• With 51612 Klein 3/4″ Angle Setter™:
  • • • Creates a hard stop for quick, accurate, and consistent bends

Specifications:

• Type: Iron Conduit Bender
• Application: Bending Conduit
• Special Features: Patent Pending Angle Setter™ Technology
• Overall Length: 1.9” (4.8 cm)
• Overall Height: 44.1” (112 cm)
• Overall Width: 9.8” (24.8 cm)
• Material: Iron
• Handle Length: 38” (96.5 cm)
• Centerline Bend Radius:
  • • • 5” Stub-up Height 6”
      • Centerline Radius 5-1/2”
• Thinwall/EMT: 3/4” (1.9 cm)
• Rigid/IMC: 1/2” (1.3 cm)
• Conduit Size: 3/4”
• Conduit Type: EMT
• Marking:
  • • • 10°, 22°, 30°, 45°, 60°
• Included:
  • • • 51609 Bender Head; 51427 Handle; 51612 Angle Setter™
• Weight: 6.6 lb (3.0 kg)
