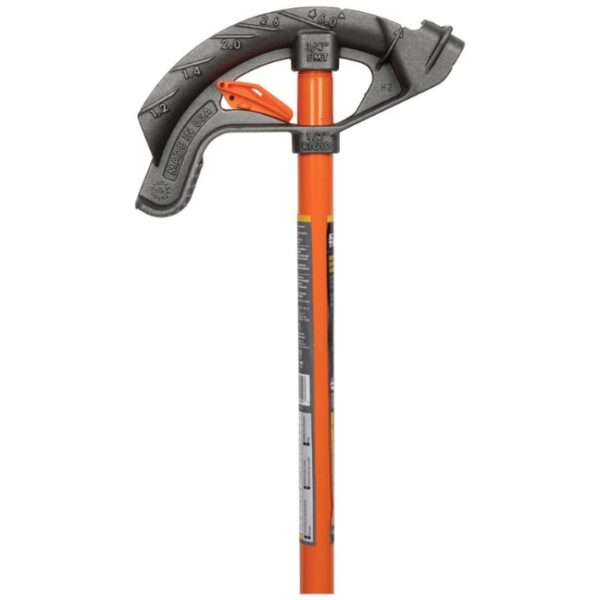

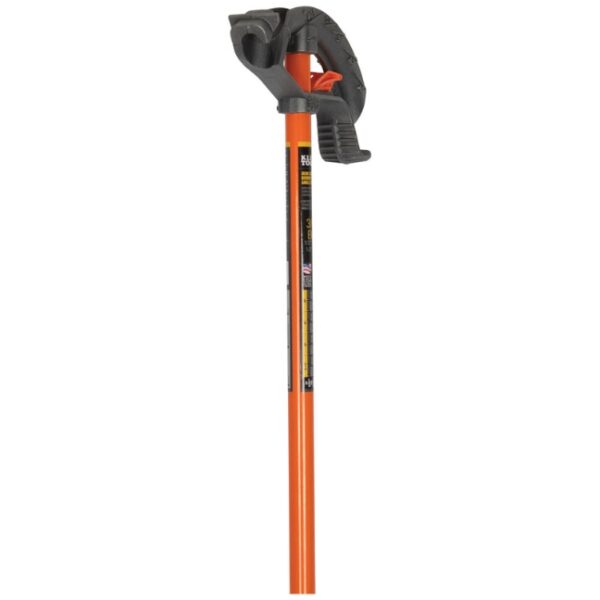

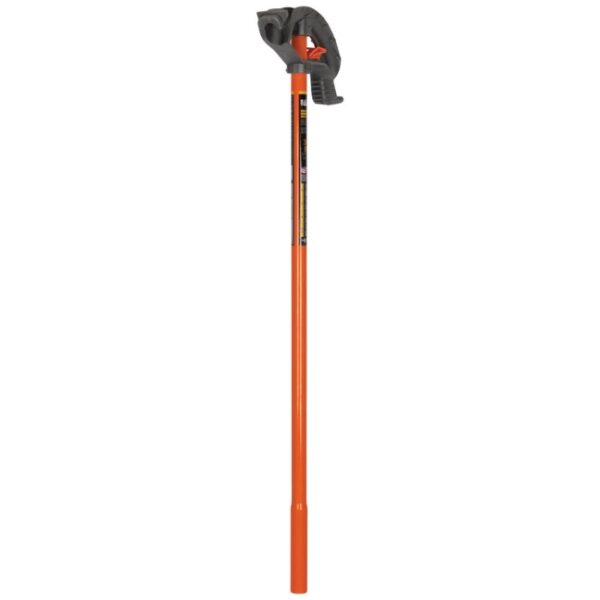

Klein 51603 1/2″ Iron Conduit Bender with ANGLE SETTER

Description

Klein 51603 1/2″ Iron Conduit Bender with ANGLE SETTER

The Klein 51603 1/2″ Iron Conduit Bender with ANGLE SETTER includes:

• 51608 Bender Head
• 51427 Handle
• 51611 Angle Setter

Features:

• Catalog no. 51603
• 1/2″ Assembled Iron Bender includes:
  • • • Klein’s unique Angle Setter™ technology for time-saving, repeated accurate bends
      • Patent pending Angle Setter™ for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)
• Heavy duty cast ductile iron has the durability needed on the job site
• Bold cast markings and symbols:
  • • • For fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends
• Wide foot pedal provides excellent stability, leverage, and comfort
• Interior hook surface prevents conduit from rolling or twisting during bends
• Includes markings for:
  • • • 10º, 22.5º, 30º, 45º, 60º and corresponding offset multipliers
• With 51611 Klein 1/2″ Angle Setter™:
  • • • Creates a hard stop for quick, accurate, and consistent bends

Specifications:

• Type: Iron Conduit Bender
• Application: Bending Conduit
• Special Features: Patent Pending Angle Setter™ Technology
• Overall Length: 1.7” (4.4 cm)
• Overall Height: 43.1” (109.5 cm)
• Overall Width: 8.1” (20.6 cm)
• Material: Iron
• Handle Length: 38” (96.5 cm)
• Centerline Bend Radius:
  • • • 4” Stub-up Height 5”
      • Centerline Radius 4-5/8”
• Thinwall/EMT: 1/2” (1.3 cm)
• Conduit Size: 1/2”
• Conduit Type: EMT
• Marking:
  • • • 10°, 22°, 30°, 45°, 60°
• Included:
  • • • 51608 Bender Head; 51427 Handle; 51611 Angle Setter™
• Weight: 5.5 lb (2.5 kg)
