Klein 25964 1/8″ to 1/2″ VACO Double-Fluted #1 13-Step Drill Bit

Description

Klein 25964 1/8″ to 1/2″ VACO Double-Fluted 13-Step Drill Bit

Klein 25964 1/8″ to 1/2″ VACO Double-Fluted #1 13-Step Drill Bit:

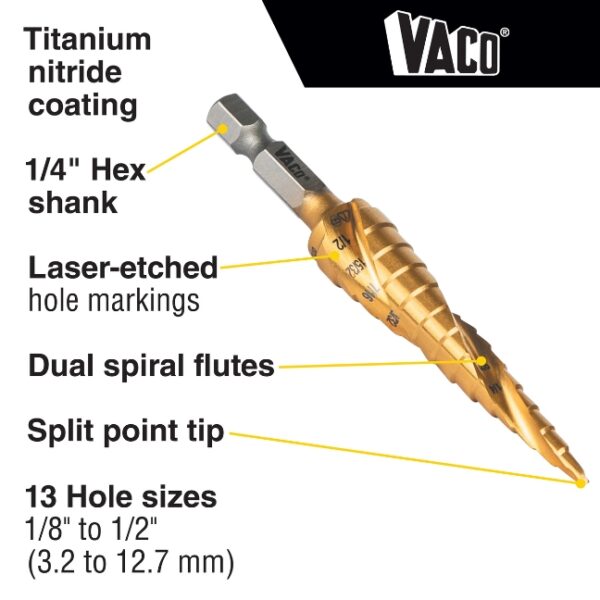

Features:

• Catalog no. 25964
• Quick Reference: #1
• Number of Holes: 13
• Increment: 1/32” (0.8 mm)
• Size: 1/8” to 1/2” (3.2 to 12.7 mm)
• For use on steel (up to 16 gauge), wood, plastic, and aluminum
• 2 Spiral flutes to remove chips and help pull the bit through material for faster cutting
• Titanium nitride coating dissipates heat for longer bit life
• 1/4″ Hex shank for firm, positive grip in impact driver and standard drill
• Split point tip:
  • • • Quickly starts hole cuts
      • Prevents drifting when pressure is added
• Laser-etched hole size markings for quick size identification

Specifications:

• Type: Step Drill Bit
• Application: Multi-Material Drilling
• Special Features:
  • • • TiN Coating
      • Impact Shaft
      • Dual Spiral Fluting
• Shank Type: 1/4” Hex
• Flute Type: Spiral
• Overall Length: 0.5” (1.3 cm)
• Overall Height: 3.43” (8.7 cm)
• Overall Width: 0.5” (1.3 cm)
• Material: High Speed Steel
• Coating: Titanium Nitride
• Quick Reference: #1
• Number of Holes: 13
• Increment: 1/32” (0.8 mm)
• Size: 1/8” to 1/2” (3.2 to 12.7 mm)
• Weight: 0.96 oz (27 g)
