Description

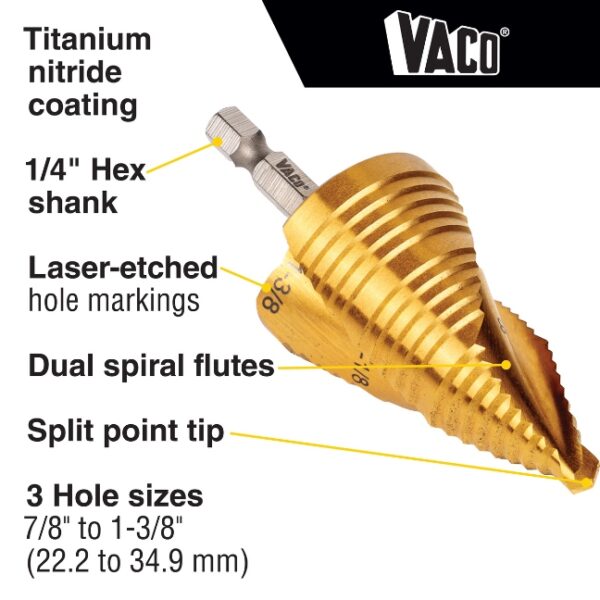

Klein 25951 VACO Electrician’s Double-Fluted Spiral Step Bit Kit 3-Piece

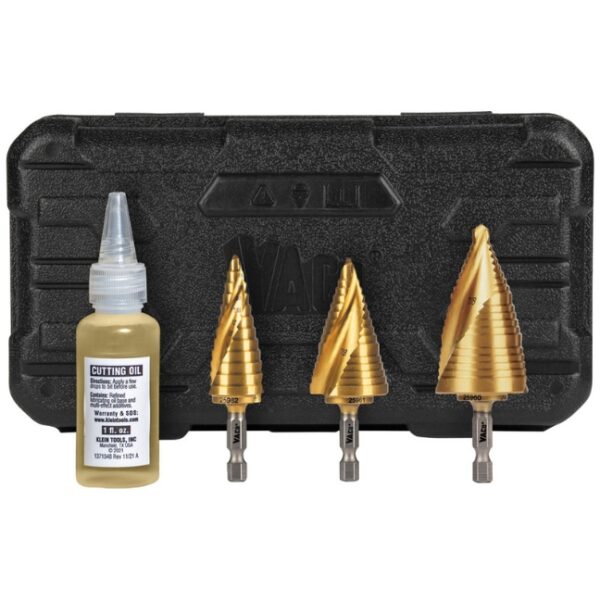

The Klein 25951 VACO Electrician’s Double-Fluted Spiral Step Bit Kit 3-Piece includes:
- 25961 #11 Step Bit: 7/8” to 1-1/8” (22.2 to 28.6 mm)
- 25962 #14 Step Bit: 3/16” to 7/8” (4.8 to 22.2 mm)
- 25960 #15 Step Bit: 7/8” to 1-3/8” (22.2 to 34.9 mm)
- 1 oz. Bottle of bit oil
- Storage Case
Features:
- Product no. 25951
- Electrician’s Step Bit Kit with 3 common step bits sizes:
-
-
- 7/8″, 1-1/8″ and 1-3/8″

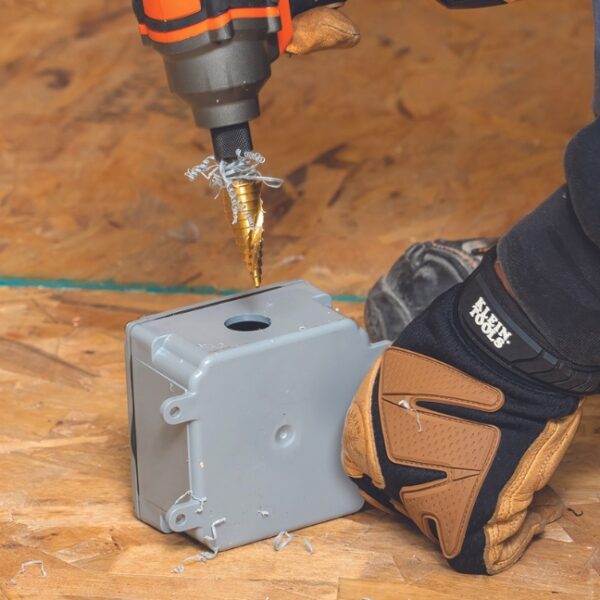

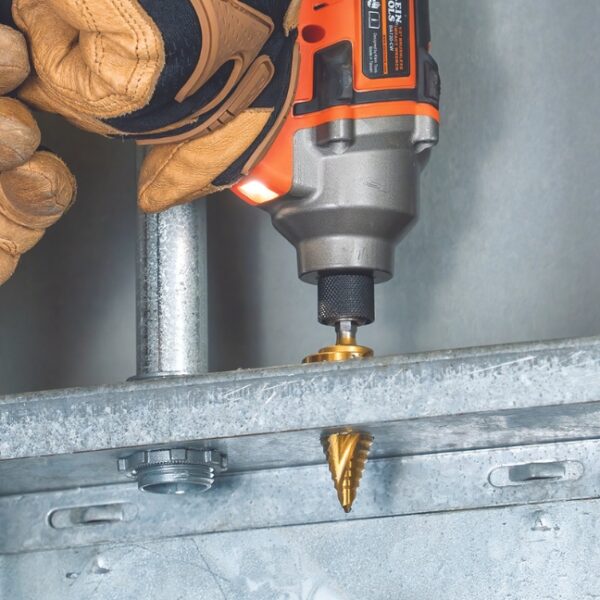

- For creating hole cutouts in panels and j-boxes
- Sizes accommodate most commonly used 1/2″, 3/4″, and 1″ conduit
-
-
- Total of 17 hole sizes
- 2 Spiral flutes on each step drill bit:
-
-
- Remove chips
- Help pull the bit through material
- For faster cutting
-
-
- Titanium nitride coating dissipates heat for longer bit life
- 1/4″ Hex shank for firm, positive grip in impact driver and standard drill
- Split point tip:
-
-
- Quickly starts hole cuts
- Prevents drifting when pressure is added
-
-
- Laser-etched hole markings
- Kit comes with a convenient 1-Ounce oil bottle for lubrication between cuts to prolong step bit life
- Rugged case snaps shut with custom inserts for each bit and oil bottle
Specifications:
- Type: Step Drill Bit Set
- Application: Multi-Material Drilling
- Special Features:
-
-
- TiN Coating
- Impact Shaft
- Dual Spiral Fluting
- Oil Bottle
- Custom Inserts in Protective Case
-
-
- Shank Type: 1/4” Hex
- Flute Type: Spiral
- Case dimensions:
-
-
- Length: 8.75” (22.2 cm)
- Height: 4.9” (12.3 cm)
- Width: 2.75” (7 cm)
-
-
- Bit material: High Speed Steel
- Quick Reference: #11, #14, #15
- Total number of holes: 17 Total
- Sizes:
-
-
- 3/16” to 7/8” (4.8 to 22.2 mm)
- 7/8” to 1-1/8” (22.2 to 28.6 mm)
- 7/8” to 1-3/8” (22.2 to 34.9 mm)
-
-
- Case weight: 25 oz (709 g)
