Description
Klein 25950 VACO Double-Fluted Spiral Step Bit Kit 4-Piece

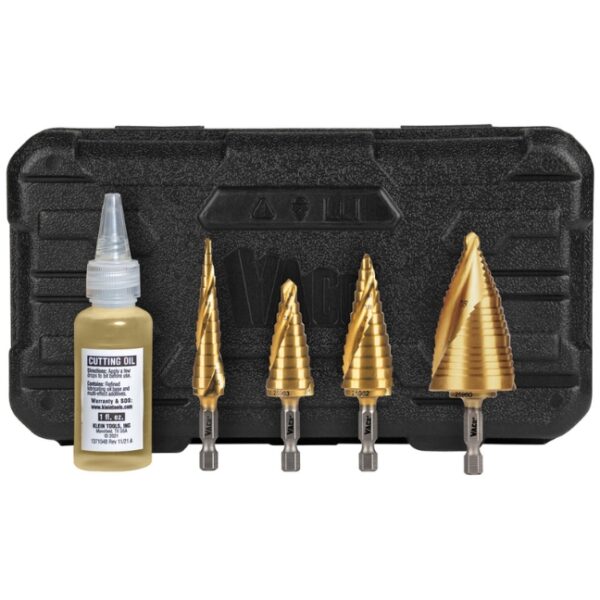

The Klein 25950 VACO Double-Fluted Spiral Step Bit Kit 4-Piece includes:
- #1 Step Bit: 1/8” to 1/2” (3.2 to 12.7 mm)
- #3 Step Bit: 1/4” to 3/4” (6.4 to 19.1 mm)
- #14 Step Bit: 3/16” to 7/8” (4.8 to 22.2 mm)
- #15 Step Bit: 7/8” to 1-3/8” (22.2 to 34.9 mm)
- 1 oz. Bottle of bit oil
- Storage Case
Features:
- Product no. 25950
- All-Purpose Step Bit Kit with 4 common step bits sizes:
-
-
- 1/2″, 3/4″, 7/8″, and 1-3/8″
-
-
- Total of 37 hole sizes

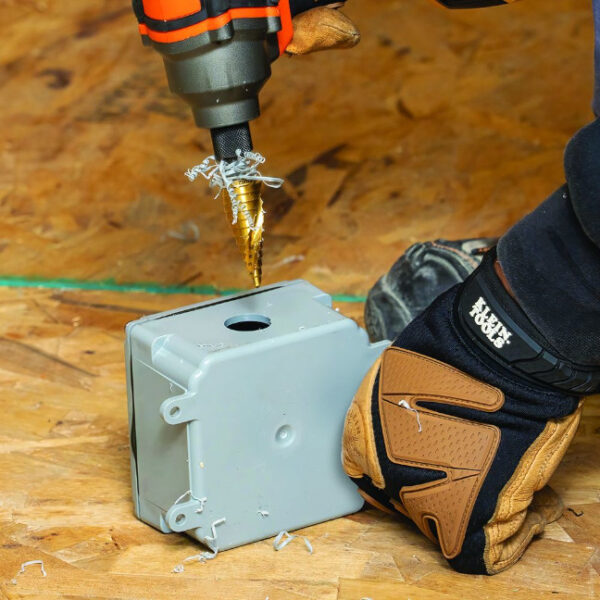

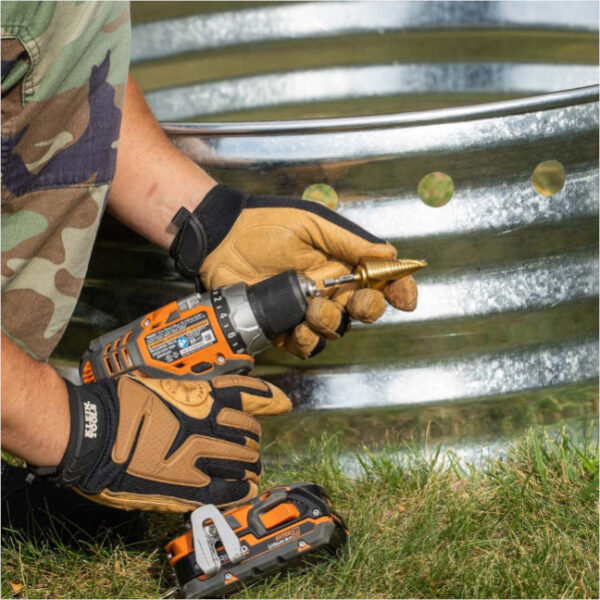

- Cuts holes in a wide variety of DIY applications
- Works on:
-
-
- Up to 16 gauge steel
- Plastic
- Aluminum
- Wood
-
-

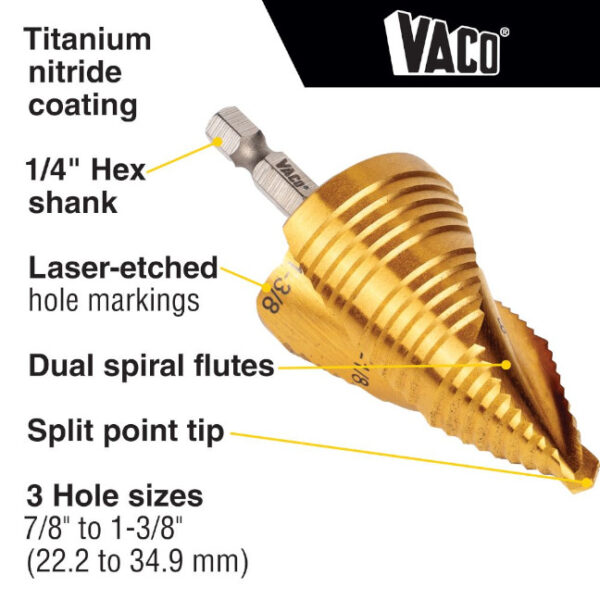

- 2 Spiral flutes on each step drill bit:
-
-
- Remove chips
- Help pull the bit through material
- For faster cutting
-
-
- Titanium nitride coating dissipates heat for longer bit life
- 1/4″ Hex shank for firm, positive grip in impact driver and standard drill
- Split point tip:
-
-
- Quickly starts hole cuts
- Prevents drifting when pressure is added
-
-
- Laser-etched hole markings
- Kit comes with a convenient 1-Ounce oil bottle for lubrication between cuts to prolong step bit life
- Rugged case snaps shut with custom inserts for each bit and oil bottle
Specifications:
- Application: Multi-Material Drilling
- Special Features:
-
-
- TiN Coating
- Impact Shaft
- Dual Spiral Fluting
- Oil Bottle
- Custom Inserts in Protective Case
-
-
- Shank Type: 1/4” Hex
- Flute Type: Spiral
- Bit material: High Speed Steel
- Quick Reference: #1, #3, #14, #15
- Total number of holes: 37 Total
- Sizes:
-
-
- 1/8” to 1/2” (3.2 to 12.7 mm)
- 1/4” to 3/4” (6.4 to 19.1 mm)
- 3/16” to 7/8” (4.8 to 22.2 mm)
- 7/8” to 1-3/8” (22.2 to 34.9 mm)
-
-
- Case dimensions:
-
-
- Length: 8.75” (22.2 cm)
- Height: 4.9” (12.3 cm)
- Width: 2.75” (7 cm)
-
-
- Case weight: 25 oz (709 g)
