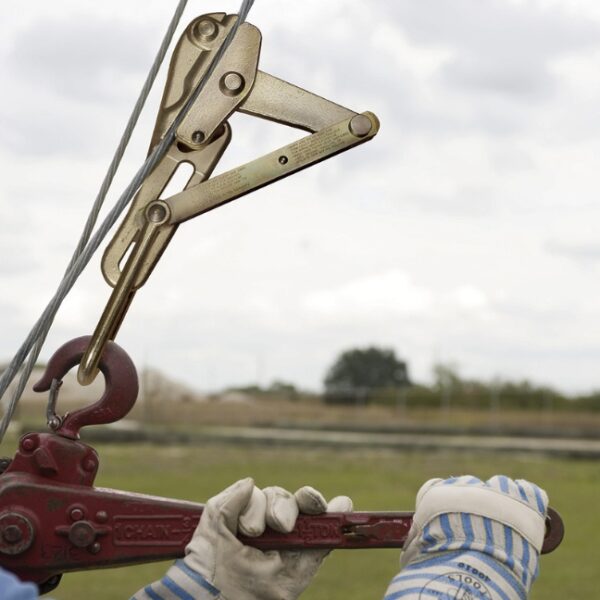

Klein 16845C CHICAGO Grip for Coated Guy Wire
Klein 16845C CHICAGO Grip for Coated Guy Wire:
Features:
- Catalog no. 16845C
- For Cable Diameter: 0.218″ to 0.55″ (5.5mm to 13.9 mm)
- Max Safe Load of 8,000-Pound (3,629 kg)
- Aggressive sawtooth jaw profile:
-
-
- Resists build-up from galvanized coating on guy strand and EHS cables
-
-
- 5” Jaw length:
-
-
- Increases surface area contact with the cable
- Minimizes cable damage
-
-
- With a spring that closes grip on cable helping to maintain initial position
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
- Manufactured from drop-forged, heat-treated steel for excellent durability
- All Klein grips manufactured from custom drop-forged steel that is machined and heat treated for excellent durability
- Each grip individually hand inspected and actuated for proper function
- Grips rigorously tested and pulled to rated load to ensure the highest quality and reliability
- Made in USA
Specifications:
- Type: Chicago Grip
- Application: Wire Pulling
- Special Features: Sawtooth Jaw Profile Resists Build-up
- Overall Length: 13.3” (33.8 cm)
- Overall Height: 2.5” (6.4 cm)
- Overall Width: 7.6” (19.3 cm)
- Material: Alloy Steel
- Cable Type: Aircraft, EHS, Messenger, Guy Strand
- Cable Diameter: 0.218” to 0.55” (5.54mm to 13.97mm)
- Hot Latch: N
- Swing Latch: N
- Spring: Y
- Locking Handle: Y
- Jaw Type: Aggressive
- Jaw Length: 5” (12.7 cm)
- Maximum Safe Load: 8,000 lb (3,629 kg)
- Weight: 6.0 lb (2.7 kg)
