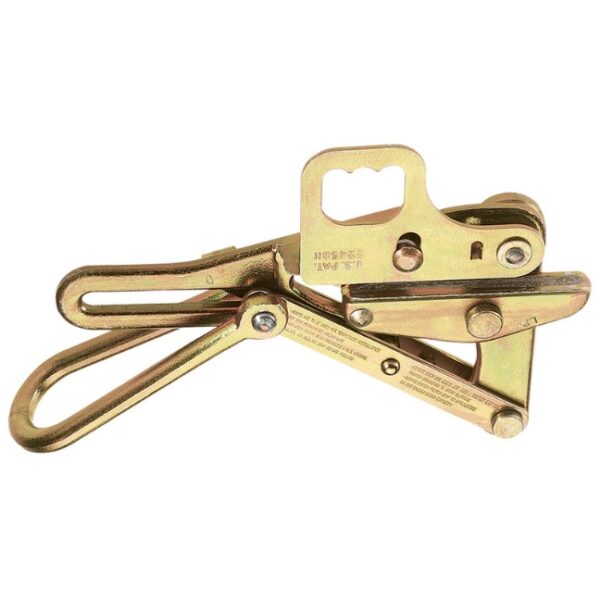

Klein 1684-5H 0.37″ Chicago Grip with Latch



UOM: EA SKU: 1684-5H Categories: , UPC: 092644471674


Klein 1684-5H 0.37″ Chicago Grip with Latch

Klein 1684-5H 0.37″ Chicago Grip with Latch:


  • Catalog no. 1684-5H
  • For Cable Diameter: 0.218″ to 0.55″ (5.5mm to 13.9 mm)
  • Max Safe Load of 8,000-Pound (3,629 kg)
  • Hot-line grips for steel stranded cable:
        • Grip may be placed on wire with hot-line stick
        • When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire
        • Standard hot-line grips are not supplied with springs or lock-open features
  • Locking handle keeps jaw open while grip is placed on cable with a hot stick
  • Double ”V” grooves:
        • Provide four-point contact
        • Reduce chance of slipping
        • Provide proper alignment of wire and cable
  • Manufactured from drop-forged, heat-treated steel for excellent durability
  • All Klein grips manufactured from custom drop-forged steel that is machined and heat treated for excellent durability
  • Each grip individually hand inspected and actuated for proper function
  • Grips rigorously tested and pulled to rated load to ensure the highest quality and reliability
  • Made in USA


  • Type: Chicago Grip
  • Application: Steel Stranded Cable
  • Special Features: May Be Placed on Wire with Hot-Line Stick
  • Material: Steel
  • Cable Type: Aircraft, EHS, Messenger, Guy Strand
  • Cable Diameter: 0.218” to 0.55” (5.54mm to 13.97mm)
  • Hot Latch: Y
  • Swing Latch: N
  • Spring: N
  • Locking Handle: Y
  • Jaw Type: Double V
  • Jaw Length: 5” (12.7 cm)
  • Maximum Safe Load: 8,000 lb (3,629 kg)
  • Weight: 6.5 lb (2.9 kg)
