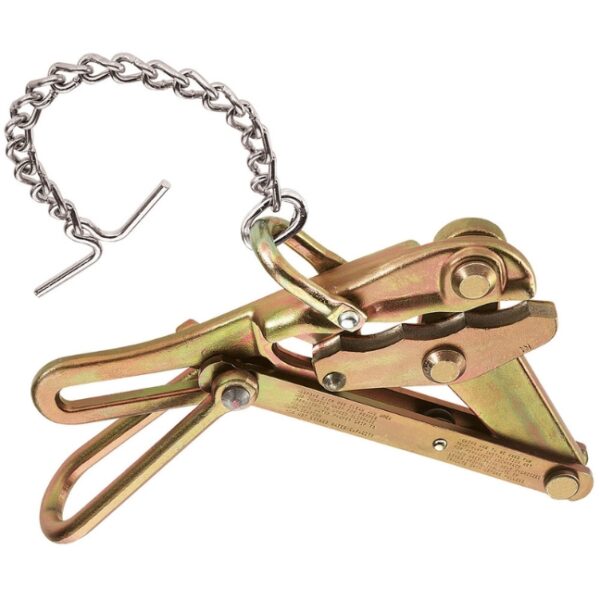

Klein 1659-5AT CHICAGO Grip Type B Strand Puller

$787.96

Backorder

UOM: EA SKU: 1659-5AT Categories: , UPC: 092644471209

Description

Klein 1659-5AT CHICAGO Grip Type B Strand Puller

Klein 1659-5AT CHICAGO Grip Type B Strand Puller:

Features:

  • Catalog no. 1659-5AT
  • For Cable Diameter: 0.2” to 0.4” (5.08 to 10.16 mm)
  • Similar to Bell-System type ”B” strand puller
  • Designed to pull 1/4″ (6.35 mm) figure-8 telephone cable
  • 0.2” to 0.37” (5.08 to 9.4 mm) cable diameter range
  • Max safe load of 5,000-Pound (2,268 kg)
  • Serpentine grooves grip insulation on strand, preventing slippage
  • Equipped with chain, toggle, and shackle:
        • Keeps the grip from falling off the cable
  • Serpentine jaws:
        • Specially machined to allow insertion of insulated conductor through the jaws
        • Reduce danger of slippage which might result in insulation damage
  • Eliminates necessity of stripping insulation from conductor
  • Round inside-jaw contour:
        • Maximize contact and gripping power
        • Minimize conductor deformation
  • Manufactured from drop-forged, heat-treated steel for excellent durability
  • All Klein grips manufactured from custom drop-forged steel that is machined and heat treated for excellent durability
  • Each grip individually hand inspected and actuated for proper function
  • Grips rigorously tested and pulled to rated load to ensure the highest quality and reliability
  • Made in USA

Specifications:

  • Type: Chicago Grip
  • Application: 1/4” Figure-8 Telephone Cable
  • Special Features: ”B” Strand Puller — Equipped With a Chain, Toggle and Shackle
  • Cable Type: Steel Strand
  • Cable Diameter: 0.2” to 0.37” (5.08 to 9.4 mm)
  • Hot Latch: N
  • Swing Latch: N
  • Spring: Y
  • Locking Handle: Y
  • Jaw Type: Round¬†– Serpentine
  • Jaw Length: 5” (12.7 cm)
  • Maximum Safe Load: 5,000 lb (2,268 kg)
  • Weight: 6.7 lb (3.03 kg)
