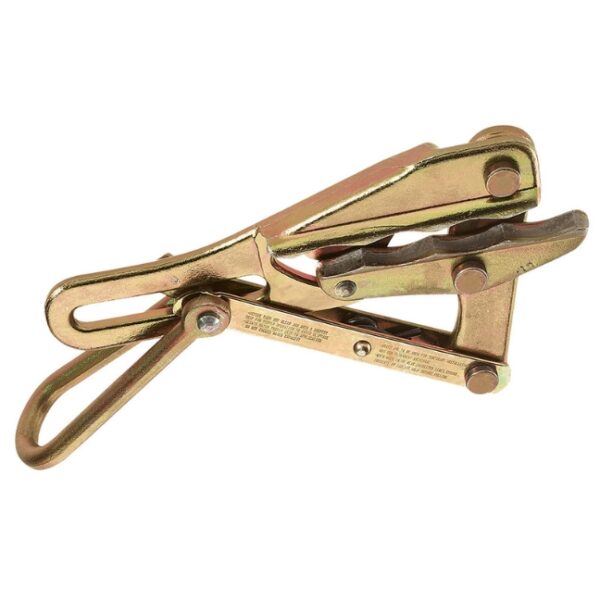

Klein 1659-40 0.49” to 0.79″ CHICAGO Grip for PVC-Covered Conductors

• Catalog no. 1659-40
• For Cable Diameter: 0.49” to 0.79” (12.45 to 20.07 mm)
• Recommended for use on:
  • PVC-covered conductors
• Serpentine jaws:
  • Specially machined to allow insertion of an insulated conductor through the jaws
  • Reduce the danger of slippage, which might result in insulation damage
• Eliminates the necessity of stripping insulation from the conductor
• Round inside-jaw contour:
  • Maximize contact and gripping power
  • Minimize conductor deformation
• Manufactured from drop-forged, heat-treated steel for excellent durability
• All Klein grips manufactured from custom drop-forged steel that is machined and heat treated for excellent durability
• Each grip individually hand inspected and actuated for proper function
• Grips rigorously tested and pulled to rated load to ensure the highest quality and reliability
• Made in USA

Specifications:

• Type: Chicago Grip
• Cable Type: PVC-Coated
• Cable Diameter: 0.49” to 0.79” (12.45 to 20.07 mm)
• Hot Latch: N
• Swing Latch: N
• Spring: Y
• Locking Handle: Y
• Jaw Type: Round – Serpentine
• Jaw Length: 5.688” (14.5 cm)
• Maximum Safe Load: 8,000 lb (3,629 kg)
• Weight: 7.7 lb (3.5 kg)
