Description

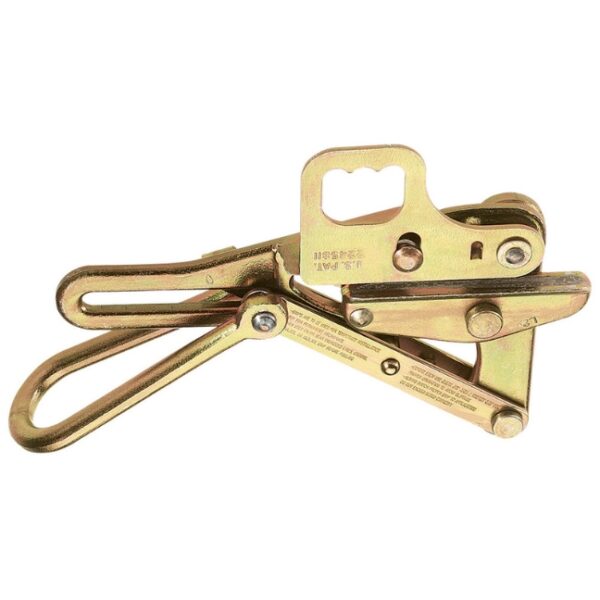

Klein 1656-50H 0.74” to 0.86” CHICAGO Grip with Hot Latch
Klein 1656-50H 0.74” to 0.86” CHICAGO Grip with Hot Latch:
Features:
- Catalog no. 1656-50H
- Hot-line Latch:
-
-
- For both bare and insulated conductors
- Grip may be placed on wire with hot-line stick
- When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire
- Standard hot-line grips not supplied with springs or lock-open features
-
-
- For Cable Diameter: 0.74” to 0.86” (18.8 to 21.84 mm)
- Round, smooth inside jaw contour:
-
-
- Ideal for bare ACSR, aluminum, and stranded copper cables
-
-
- Smooth jaws grip with maximum contact:
-
-
- Less likely to damage conductors
-
-
- Jaw design helps reduce slippage to make pulling cables easier
- Manufactured from drop-forged, heat-treated steel for excellent durability
- All Klein grips manufactured from custom drop-forged steel that is machined and heat treated for excellent durability
- Each grip individually hand inspected and actuated for proper function
- Grips rigorously tested and pulled to rated load to ensure the highest quality and reliability
- Made in USA
Specifications:
- Type: Chicago Grip
- Application:
-
-
- Bare Conductors
-
-
- Special Features: Hot Latch
- Cable Type: Copper, ACSR, AAC
- Cable Diameter: 0.74” to 0.86” (18.8 to 21.84 mm)
- Hot Latch: Y
- Swing Latch: N
- Spring: N
- Locking Handle: Y
- Jaw Type: Round
- Jaw Length: 5.5” (14 cm)
- Maximum Safe Load: 8,000 lbs (3,629 kg)
- Weight: 8.45 lbs (3.83 kg)
