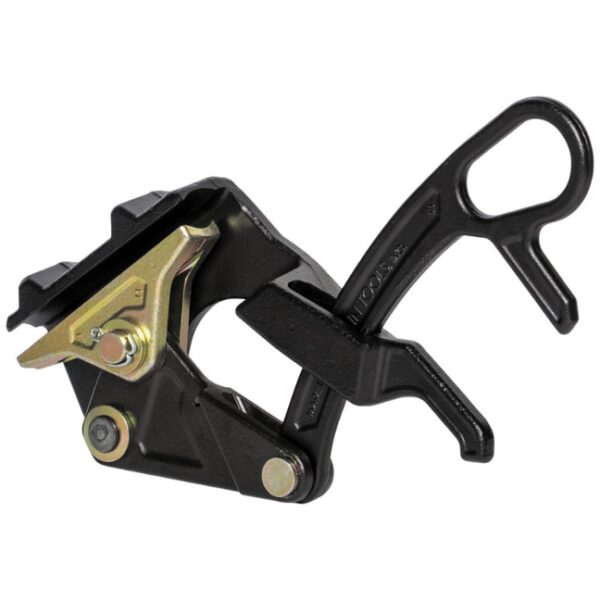

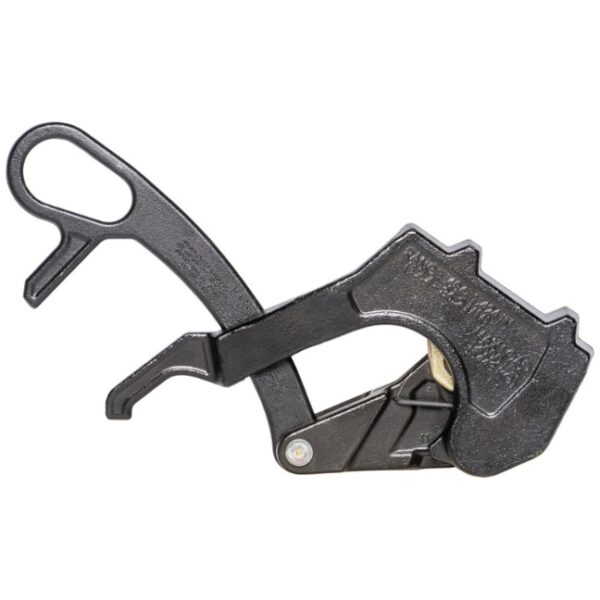

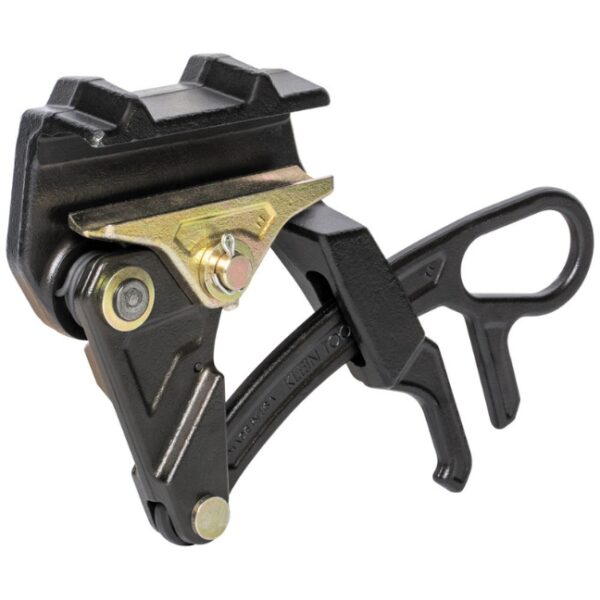

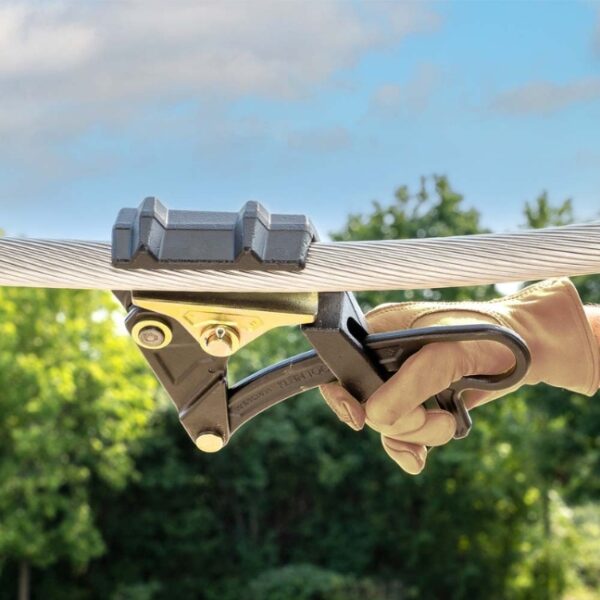

Klein 16499 Wide Range Transmission Grip for Bare Copper/ACSR/AAC Cable

Klein 16499 Wide Range Transmission Grip for Bare Copper/ACSR/AAC Cable

Klein 16499 Wide Range Transmission Grip for Bare Copper/ACSR/AAC Cable:

Features:

• Catalog no. 16499
• Securely pulls:
  • ACSR, AAC and bare copper cables
• Holds cable sizes:
  • From 0.68″ to 1.42″ (17.3 mm to 36.1 mm)
• Fine Sawtooth jaw geometry provides greater grip strength
• One-handed design makes for easier actuation
• Spring closes grip on cable to hold the initial position
• Large opening in the handle:
  • Accommodates a wide variety of hooks on hoists, winches and tackle blocks
• Max Safe Load of 12,000 lbs (5,443 kg)
• Patent pending design
• Made in the USA

Specifications:

• Type: Parallel Jaw Grip
• Application: Wire Pulling
• Special Features: One-Handed Grip
• Overall Length: 13.1” (33.3 cm)
• Overall Height: 8.1” (20.6 cm)
• Overall Width: 2.4” (6.1 cm)
• Material: Steel
• Cable Type: ACSR, AAC, Bare Copper
• Cable Diameter: 0.68” to 1.42” (17.3 to 36.1 mm)
• Hot Latch: N
• Swing Latch: N
• Spring: Y
• Locking Handle: Y
• Jaw Type: Round
• Jaw Length: 4.85” (12.3 cm)
• Maximum Safe Load: 12,000 lbs (5,443 kg)
• Weight: 8.1 lbs (3.7 kg)
