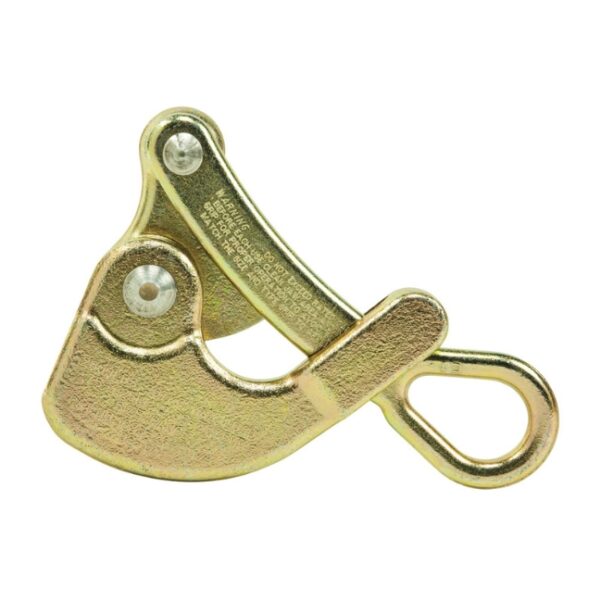

Klein 162520-7/8 0.88″ HAVEN’S Grip for Wire Rope
Klein 162520-7/8 0.88″ HAVEN’S Grip for Wire Rope:
Features:
- Catalog no. 162520-7/8
- Cable Diameter: 0.38” to 0.88” (9.65 to 22.35 mm)
- Maximum Safe Load: 8,000 lbs (3,329 kg)
- Swing latch to help hold cable in the jaw
- 1625 Series Wire Rope Haven’s® Grips are designed for use:
-
-
- When light, compact grip is desired
- Where conductor damage is not a factor
-
-
- Gripping pressure of the knurled jaw applied to 1/4″ (6.35 mm) cable area
- All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability
- Each grip is individually hand inspected and actuated for proper function
- Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability
- Made in USA
Specifications:
- Type: Haven’s Grip
- Cable Type: Wire Rope
- Cable Diameter: 0.38” to 0.88” (9.65 to 22.35 mm)
- Hot Latch: N
- Swing Latch: Y
- Spring: N
- Locking Handle: N
- Jaw Type: Aggressive
- Maximum Safe Load: 8,000 lbs (3,329 kg)
- Weight: 3.4 lbs (1.5 kg)
