Klein 1604-20L 0.5″ HAVEN’S Cable Grip with Swing Latch



UOM: EA SKU: 1604-20L Categories: , UPC: 092644472046


Klein 1604-20L 0.5″ HAVEN’S Cable Grip with Swing Latch

Klein 1604-20L 0.5″ HAVEN’S Cable Grip with Swing Latch:


  • Catalog no. 1604-20L

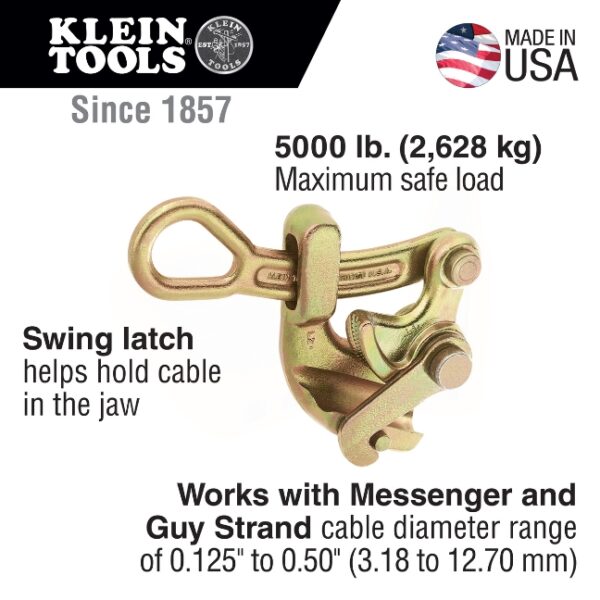

  • Swing latch helps hold cable in the jaw
  • 1604 Series Messenger and Guy Strand Haven’s® Grips designed for use:
        • When light, compact grip desired
        • And where conductor damage not a factor
  • Works with Messenger and Guy Strand cable diameter range:
        • 0.125″ to 0.500″ (3.18 to 12.70 mm)
  • Gripping pressure of the knurled jaw applied to 1/4″ (6.35 mm) cable area
  • Maximum safe load of 5,000-Pound (2,268 kg)
  • Approximate weight of each is 1-pound
  • Recommended for use with steel strand cables
  • All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability
  • Each grip is individually hand inspected and actuated for proper function
  • Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability
  • Made in USA


  • Type: Haven’s Grip
  • Overall Length: 8.75” (22.2 cm)
  • Cable Type: Messenger, Guy Strand
  • Cable Diameter: 0.125” to 0.5” (3.18 to 12.7 mm)
  • Hot Latch: N
  • Swing Latch: Y
  • Spring: N
  • Locking Handle: N
  • Jaw Type: Aggressive
  • Maximum Safe Load: 5,000-Pound (2,268 kg)
  • Weight: 2.60 lbs (1.18 kg)
