Description

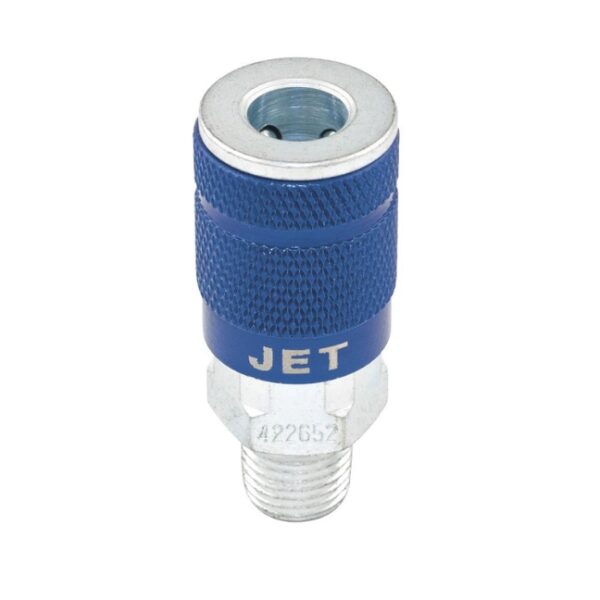

Jet 420652 ACM1414 ‘A’ Coupler Male – 1/4″ Body x 1/4″ NPT
Jet 420652 ACM1414 ‘A’ Coupler Male – 1/4″ Body x 1/4″ NPT:
Features:
- Product no. 420652
- Model ACM1414
- Made from zinc-plated steel to prevent rust
- Deep knurled socket sleeve
- 4-Ball “Positive Locking” mechanism
- Use with pneumatic tool for general air service
- Max. working pressure: 150 psi
- Air flow: 35 SCFM at 100 psi inlet with 10 psi pressure drop
- Operating temperature range: -40°F to 225°F (-20°C to 107°C)
- To identify this plug look for the 5/16″ tip
- Round shape bottom ball groove
Specifications:
- Description: Coupler
- Material: Steel
- Pack Quantity: 1
- Thread: NPT
- Type: Male Thread
- Max. working pressure: 150 PSI
- Air flow: 35 SCFM at 100 PSI inlet with 10 PSI pressure drop
- Operating temperature range: -40°F to 225°F (-20°C to 107°C)
