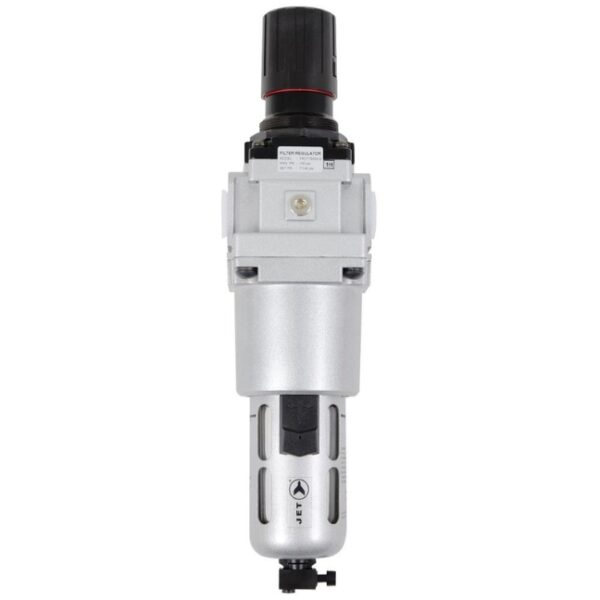

Jet 408888 AFRH34 Air Filter Regulator Combination 3/4″ NPT – Heavy Duty

Description

Jet 408888 AFRH34 Air Filter Regulator Combination 3/4″ NPT – Heavy Duty

Jet 408888 AFRH34 Air Filter Regulator Combination 3/4″ NPT – Heavy Duty:

Features:

• Product no. 408888
• Model no. AFRH34
• Modular Filter & Regulator are assembled together to form a single unit
• Fully modular for easy maintenance
• Modular mounting
• Panel mounting
• Designed for maximum flow
• Each unit is 100% factory tested and certified for guaranteed performance
• Air Filter:
  • • • Prevents dust, water and other impurities from reaching air tools for longer tool life
      • Die cast aluminum filter head construction
      • Polycarbonate bowl with a steel bowl guard
      • High performance sintered Bronze filtering element
      • 40 micron filtering element
      • Equipped with a Separator & Shield for efficient moisture separation
      • Press type manual drain with “Night Time Drain” feature
      • “Night Time Drain” automatically drains the bowl when the compressed air supply to the filter is switched off
• Air Pressure Regulator:
  • • • Governs air flow to desired PSI air pressure
      • Non Raising “Press to Lock” adjusting knob for locking at any set pressure
      • Works on a Diaphragm operated, relieving type mechanism with pressure compensated by balanced poppet
• Wetted Components:
  • • • Aluminum
      • Bronze
      • Brass
      • Steel
      • Acetal
      • Polycarbonate
      • Stainless Steel
      • Nitrile

Specifications:

• Maximum Working Air Pressure: 145 PSI (10 Bar)
• Ambient Temperature: 0º C to 60º C (32º F to 140º F)
• Inlet Pressure: 105 PSI (7 BAR)
• Set Pressure: 90 PSI (6 BAR)
• Pressure Drop: 17 PSI (1.0 BAR)
• Pressure Adjustment Range: 7 to 145 PSI (0.5 to 10 BAR)
