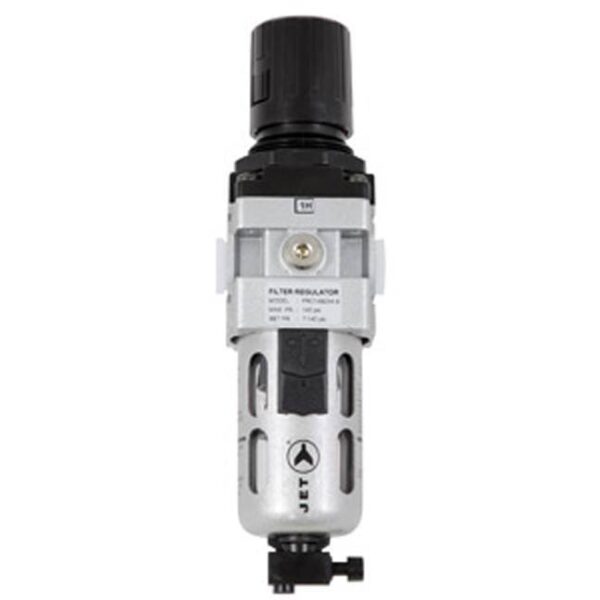

Jet 408884 AFRI38 Air Filter/Regulator Combination 3/8″ NPT
Jet 408884 AFRI38 Air Filter/Regulator Combination 3/8″ NPT:
Features:
- Product no. 408884
- Model no. AFRI38
- Air filter and regulator combined in one unit
- Air filter:
-
-
- Designed to eliminate dust, water and other impurities from reaching air tool, extending tool life
-
-
- Air regulator:
-
-
- Governs air flow to desired PSI air pressure
- Uses a Non Raising “Press to Lock” adjusting knob for locking at any set pressure
- Works on a Diaphragm operated, relieving type mechanism
- Pressure compensated by balanced poppet
-
-
- Modular Mounting
- Panel Mounting
- Wetted Components:
-
-
- Aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel and nitrile
-
-
Specifications:
- Maximum Working Air Pressure: 145 PSI (10 Bar)
- Ambient Temperature: 0º C to 60º C (32º F to 140º F)
- Inlet Pressure: 105 PSI (7 BAR)
- Set Pressure: 90 PSI (6 BAR)
- Pressure Drop: 17 PSI (1.0 BAR)
- Pressure Adjustment Range: 7 to 145 PSI (0.5 to 10 BAR)
- Filter Bowl Size:1.08 oz (32 ml)
- Height: 11.02″ (280 mm)
- Max. Flow: 64 CFM (1,800 LPM)
- Port Size: 3/8″
- Width: 2.17″ (55 mm)
