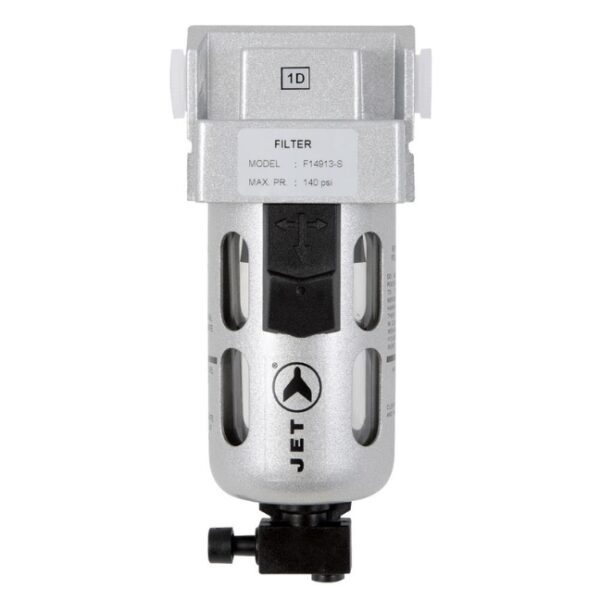

Jet 408873 AFI14 Air Filter 1/4″ NPT – Intermediate

Description

Jet 408873 AFI14 Air Filter 1/4″ NPT – Intermediate

Jet 408873 AFI14 Air Filter 1/4″ NPT – Intermediate:

Features:

• Product no. 408873
• Model no. AFI14
• Prevents dust, water and other impurities from reaching air tools for longer tool life
• Die cast aluminum filter head construction
• Polycarbonate bowl with a steel bowl guard
• High performance sintered Bronze filtering element
• 40 micron filtering element
• Separator & Shield for efficient moisture separation
• Press type manual drain with “Night Time Drain” feature
• “Night Time Drain”:
  • • • Automatically drains the bowl when the compressed air supply to the filter is switched off
• Fully modular for easy maintenance
• Modular mounting
• Vertical mounting
• Designed for maximum flow
• Each unit is 100% factory tested and certified for guaranteed performance
• Conforms to ISO 5782-1
• Wetted Components:
  • • • Aluminum, brass, steel, acetal, stainless steel and nitrile

Specifications:

• Maximum Working Air Pressure: 145 PSI
• Ambient Temperature: 0º C to 60º C (32º F to 140º F)
• Inlet Pressure: 90 PSI (6 BAR)
• Pressure Drop: 4.5 PSI (0.3 BAR)
• Bowl Size (Filter): 1.08 oz (32 ml)
• Height: 5.51″ (140 mm)
• Max. Flow: 80 cfm (2,250 LPM)
• Width: 2.16″ (55 mm)
